0.8-Ton Handheld Vibratory Roller: How Compact Can It Be?

Have you ever heard of a 0.8-ton handheld vibratory roller?

  In recent years, with the increasing construction of highway projects, extending the service life of roads has become particularly important. For the maintenance of narrow roads, due to the limitations of compaction conditions and maintenance costs, many engineers prefer handheld vibratory rollers. Today, we recommend the Lutong 0.8-ton small roller — the Lutong LTC08H full hydraulic handheld vibratory roller, a perfect solution for narrow-area compaction.

Sleek and Compact Design

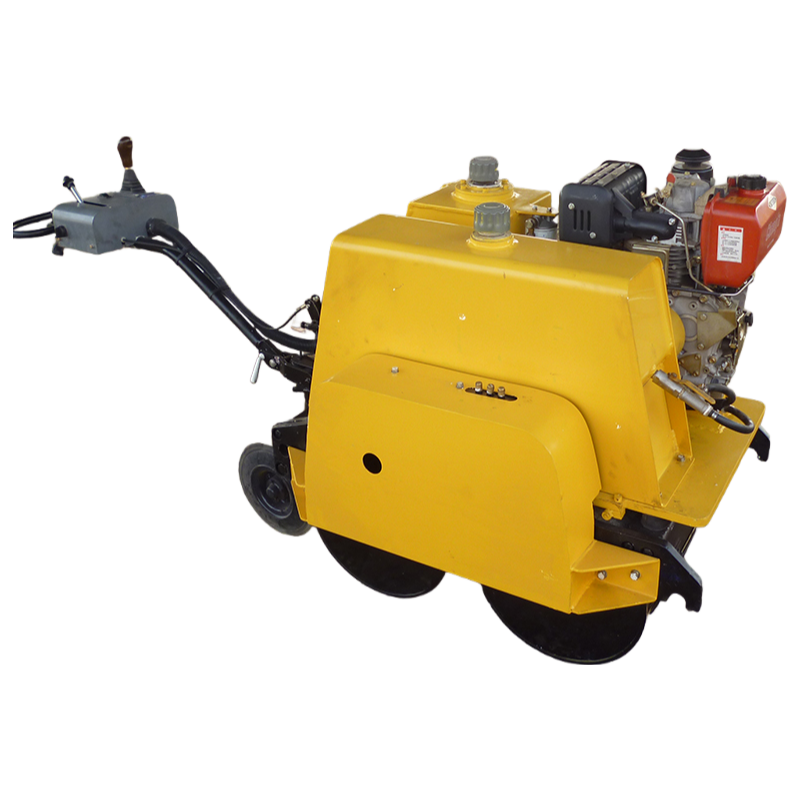

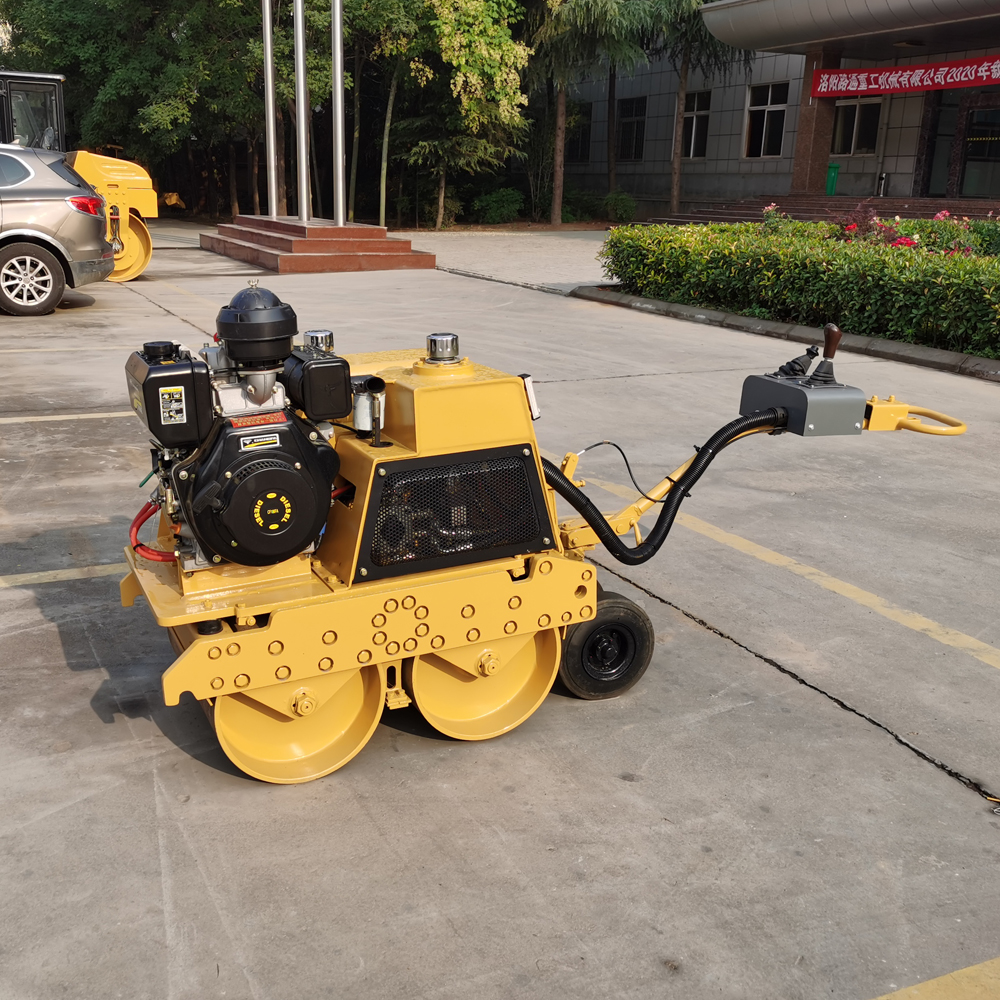

The Lutong LTC08H full hydraulic handheld vibratory roller has an operating weight of about 0.8 tons, with an overall length of approximately 2.4 meters, a width of 0.88 meters, and a height of 0.11 meters. Not only is it small in size and compact in structure, but it also boasts an elegant and sleek appearance. With an amplitude of 0.25mm and a vibrating wheel width of 600mm, this 0.8-ton roller is suitable for municipal road and highway maintenance. It is also ideal for compaction work in narrow areas such as trench foundations (over 0.8 meters wide), building construction, pipeline backfilling, and sports venues.

Full-Wheel Drive

    Equipped with a CF186F vertical direct-injection air-cooled engine with a rated power of 5.68KW, this 0.8-ton roller is matched with two starting devices: electric start and manual pull start. It realizes full-wheel drive of double steel wheels, featuring small turning radius, strong climbing ability, and low operating noise — making it easy to operate even in complex and narrow working environments.

Easy Steering

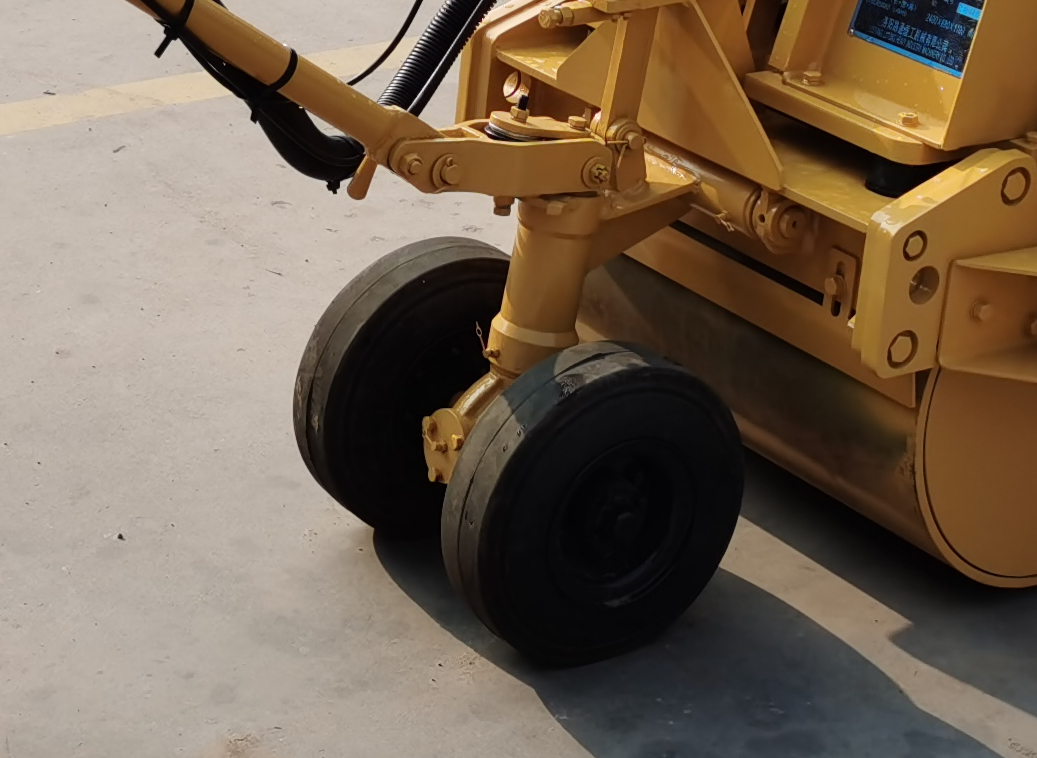

As a full hydraulic vibratory roller, it is equipped with guide wheels and operating levers that are within easy reach. The steering is more flexible, labor-saving and convenient, with agile and comfortable operation and high cost performance, greatly reducing the labor intensity of operators.

Hydraulic Travel

This 800kg full hydraulic handheld vibratory roller adopts imported travel pumps and travel motors, realizing hydraulic travel and stepless speed change. Its mechanical performance is relatively stable and reliable, ensuring long-term efficient operation and reducing maintenance costs for users.

   For decades, Lutong has been forging ahead with the concept of continuous improvement and customer success, daring to innovate and make changes. In the future, Lutong will continue to contribute to the industry with stronger and better products, bringing more efficient and reliable solutions to engineers around the world.
