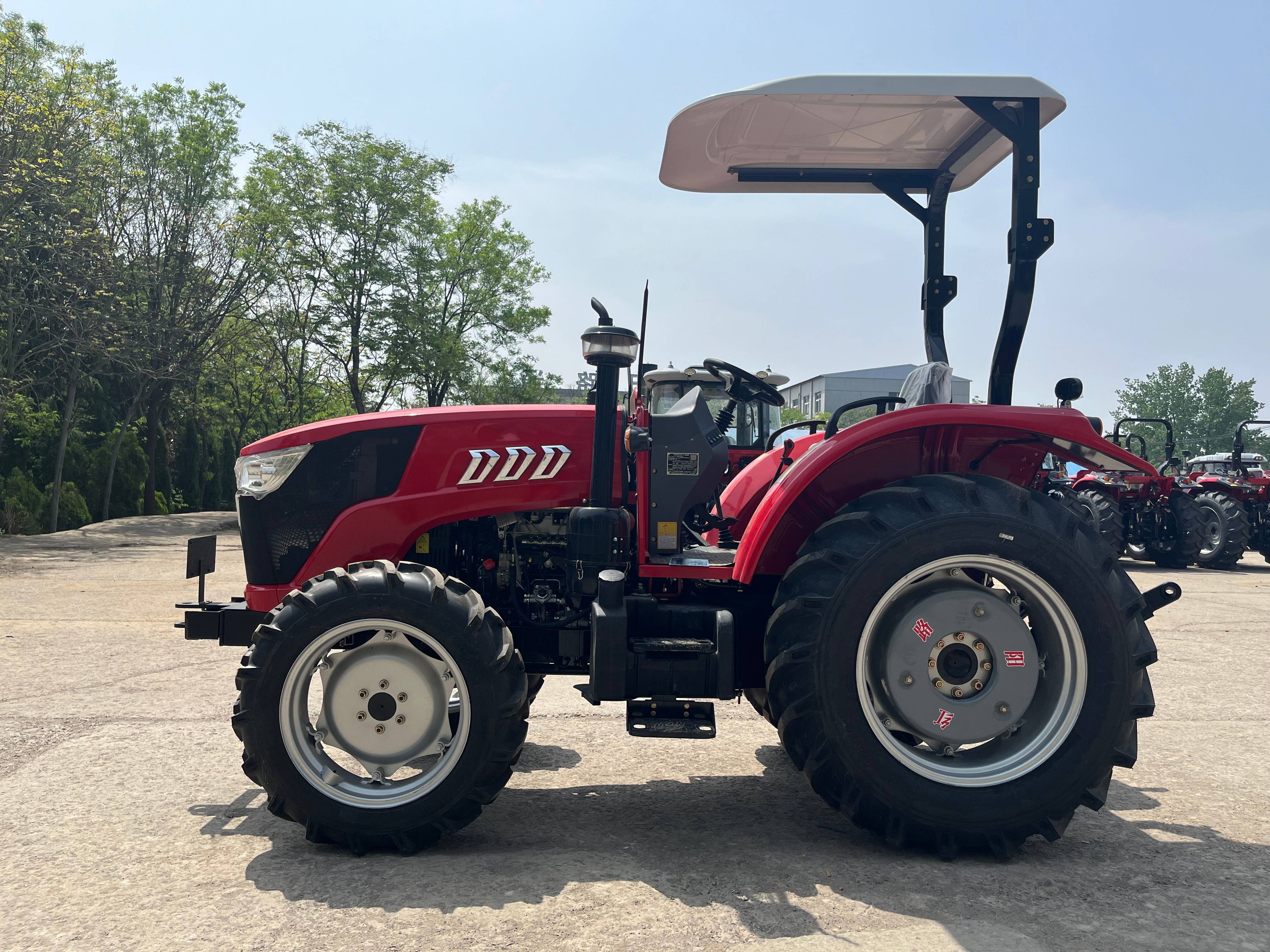

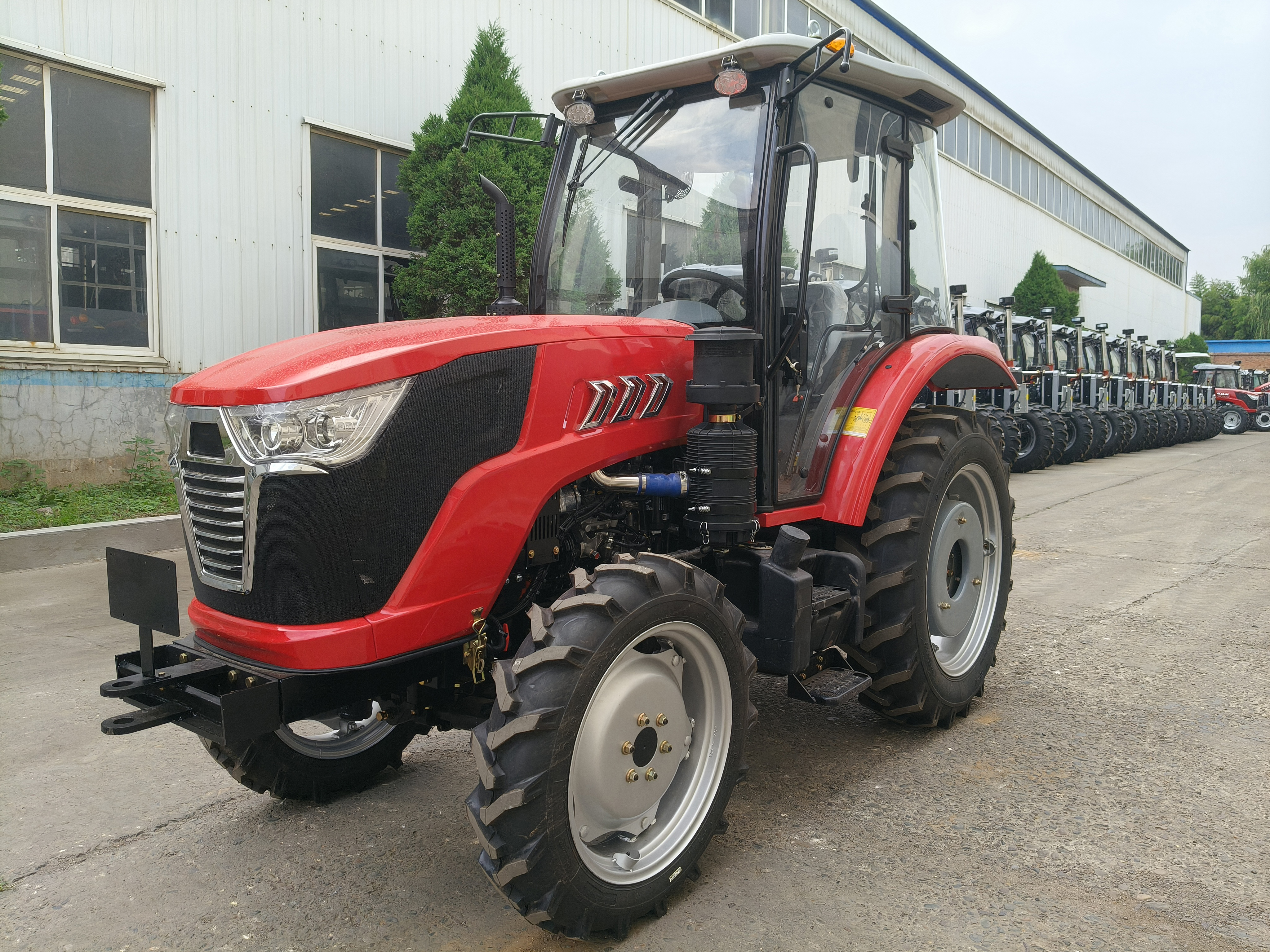

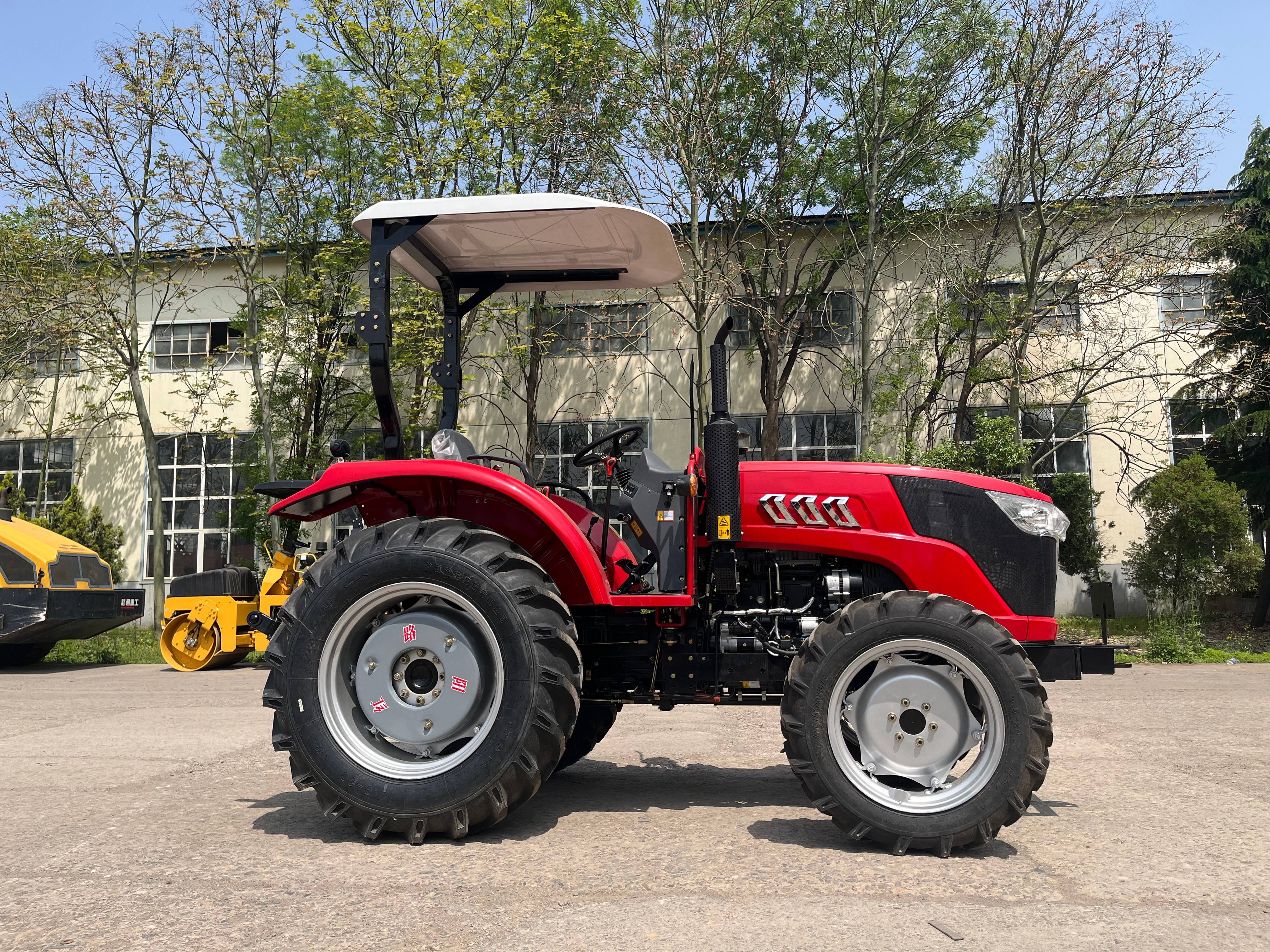

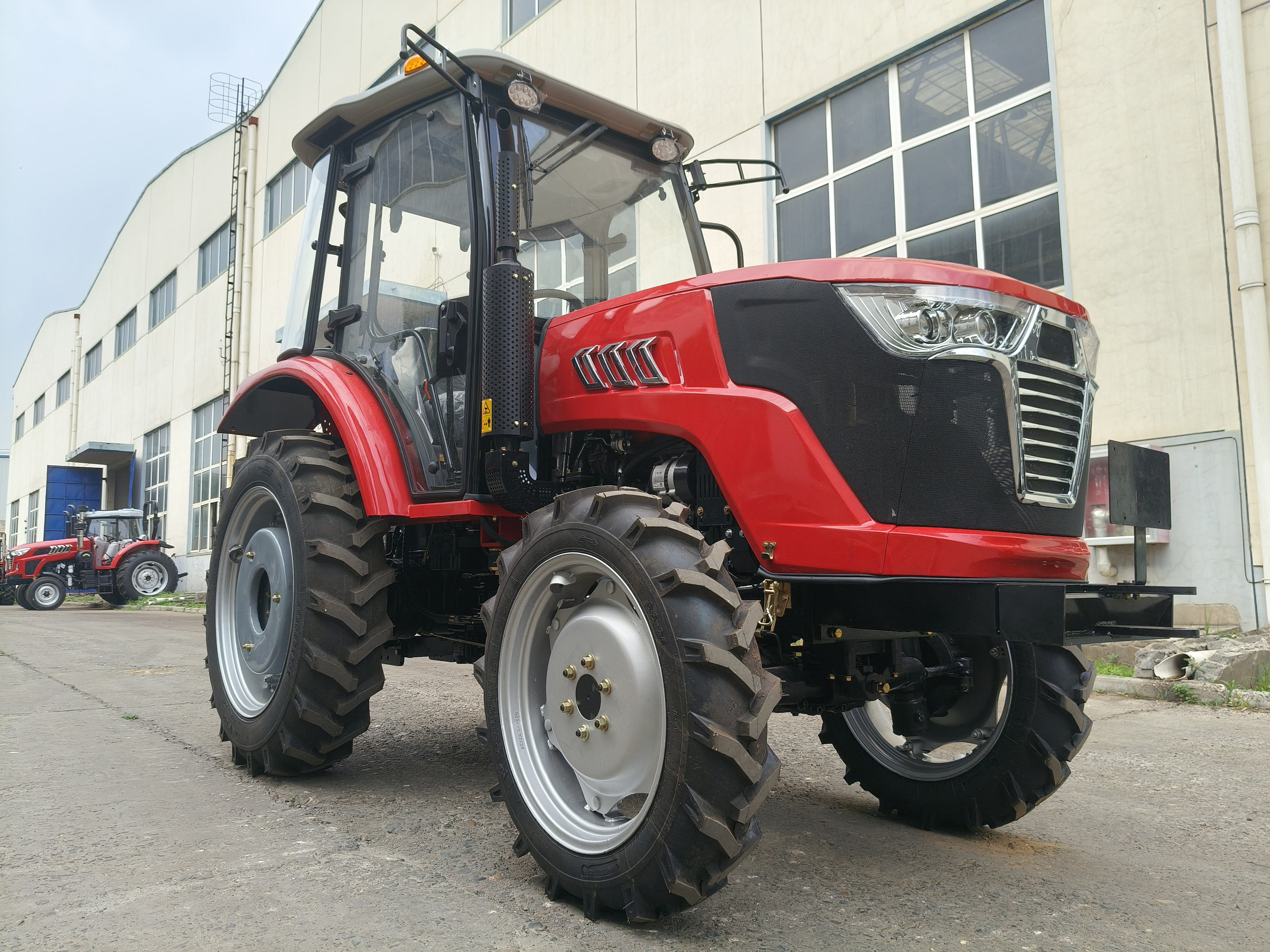

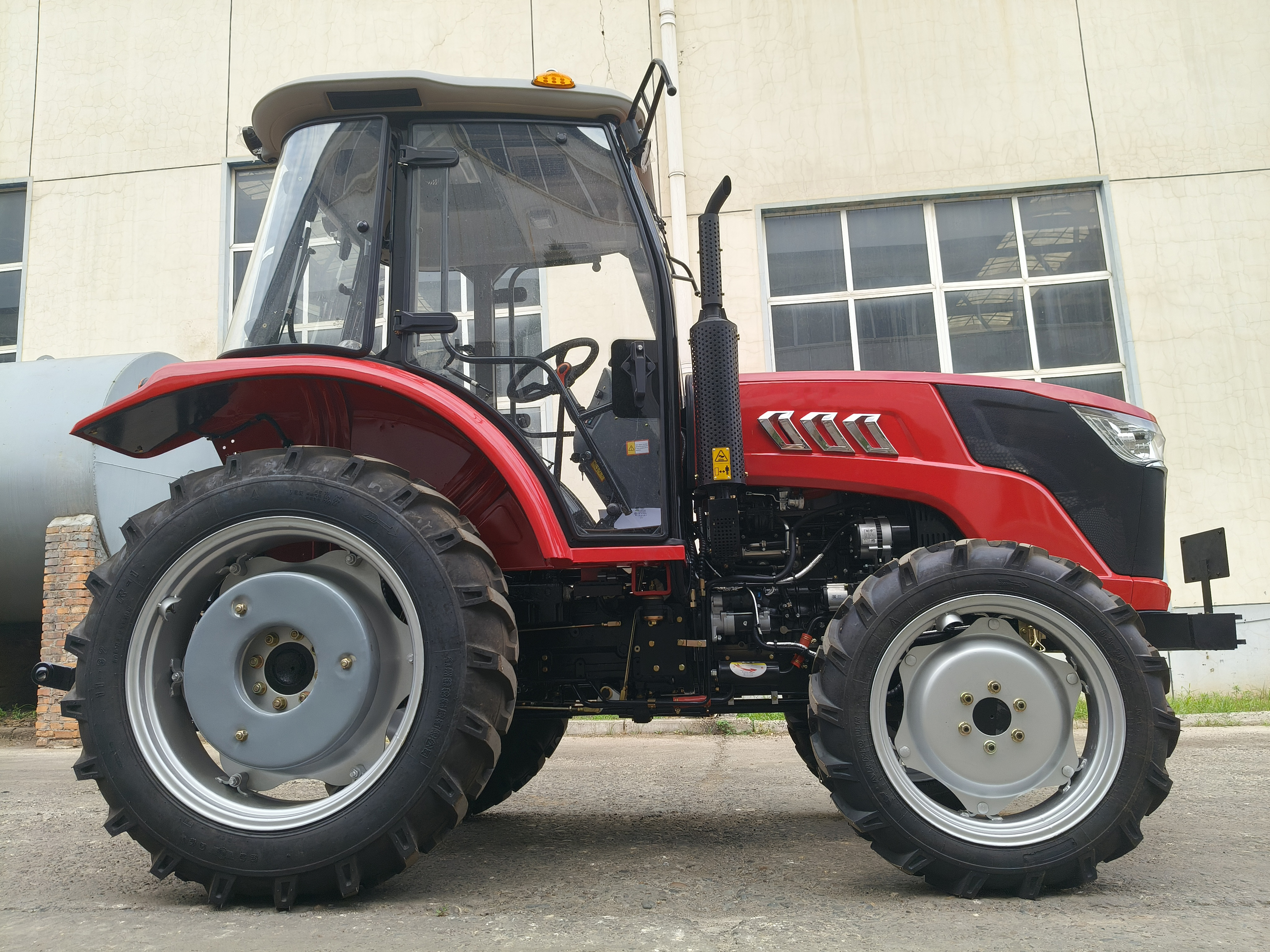

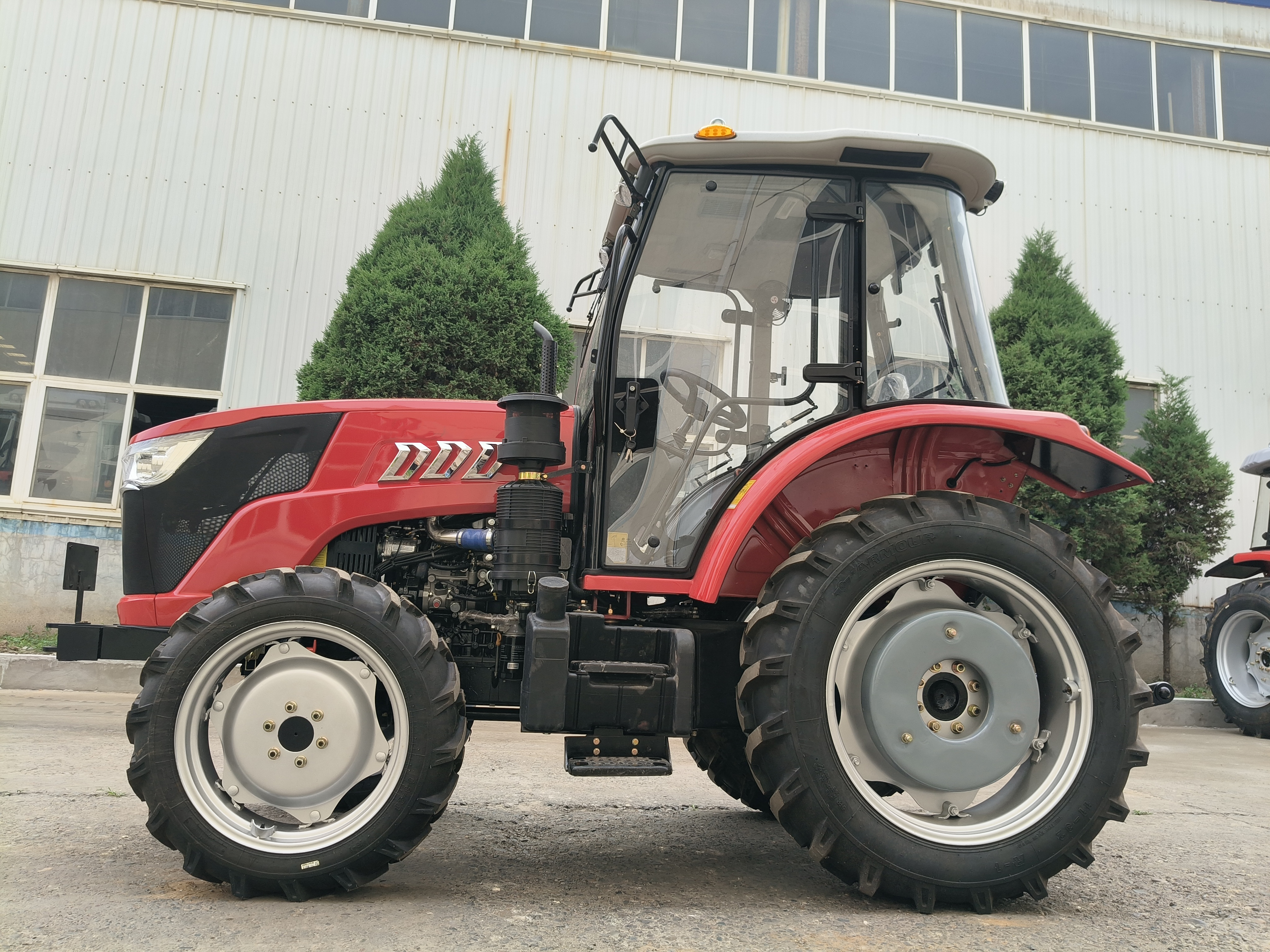

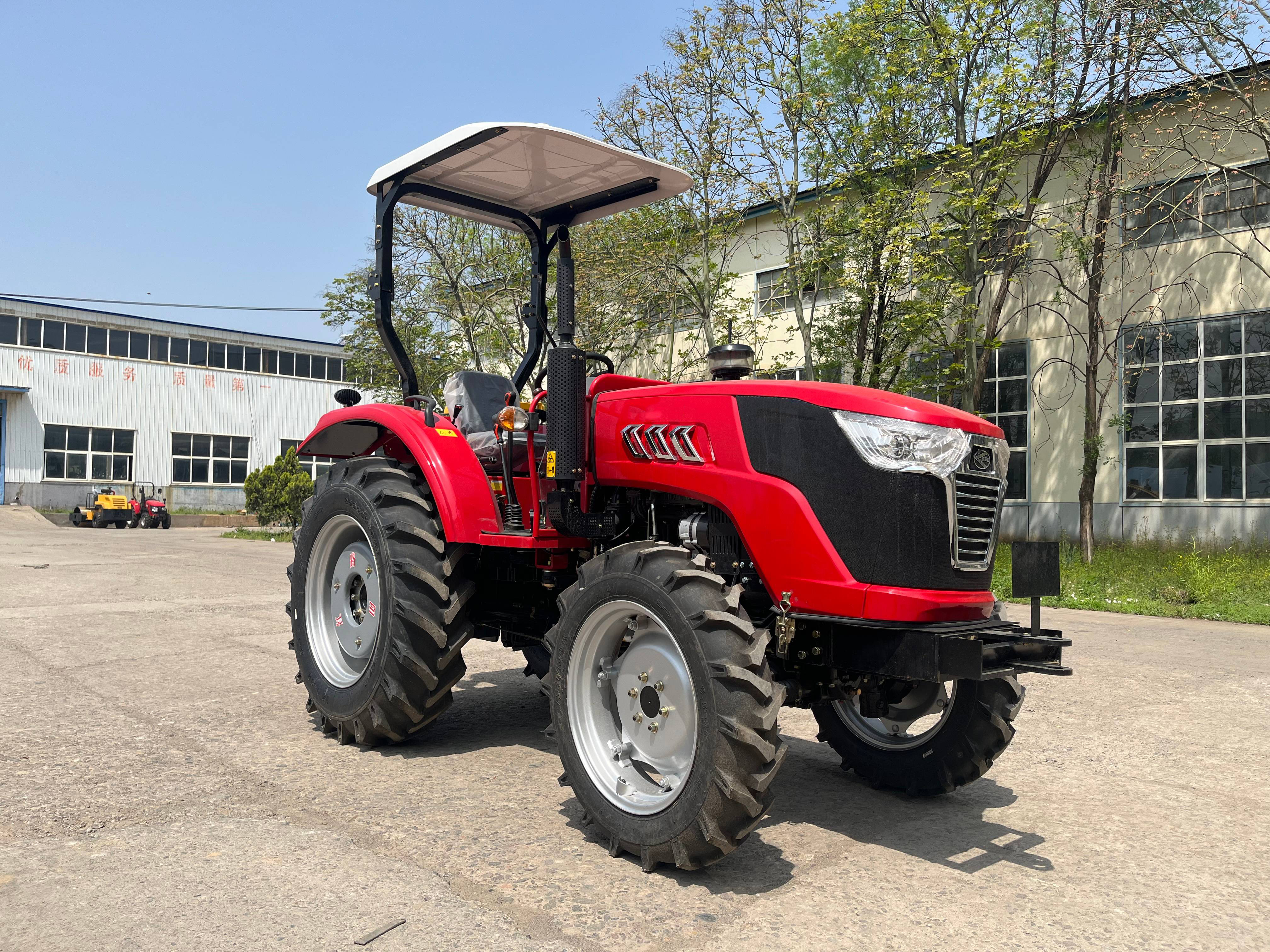

LTB704 70hp 4WD mini wheel tractor
Full diesel National III engine, double-acting 10-inch clutch, shuttle shift (12+12 gears), clutch sleeve shift, central cylinder front axle, hydraulic steering, enlarged half-axle housing, high-pressure lifter, power output speed 540/1000r/min (6 keys), Class II suspension, "A" tires, front/rear flat tires 9.5-20/14.9-30, two sets of hydraulic output, cab, standard reversing image, standard air conditioning.
$10000
Product Details
Product Details
Technical Features
Strong motive power

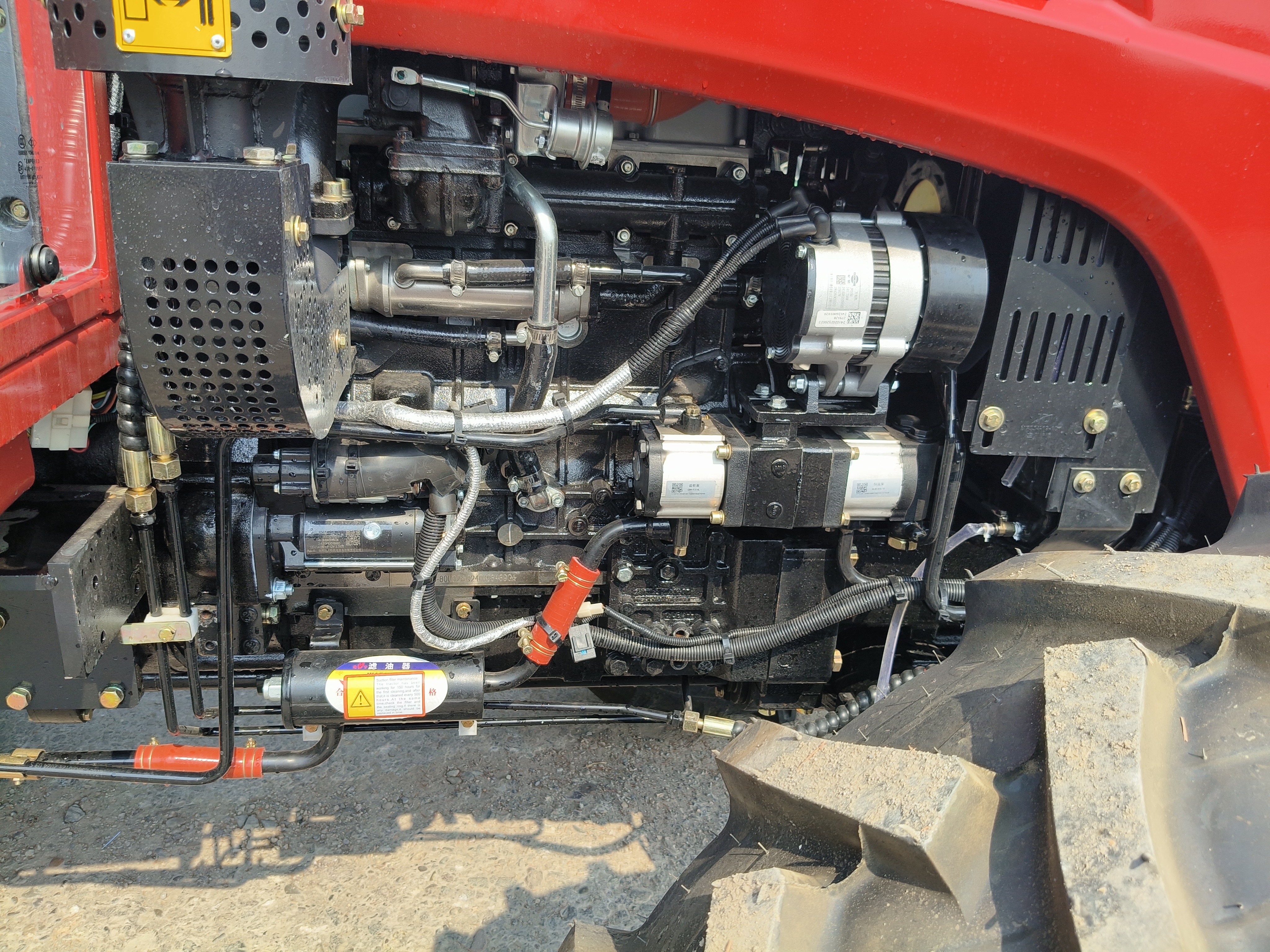

1.Adopt Xinchai diesel engine series, large reserves of torque,low fuel consumption and high economic efficiency.
High reliability
1.Imported high strength powder metallurgic clutch plate.reliable transmission.
2.Independent oil circuit of hydraulic system. high cleanliness and low failure rate.
3.Reinforced chassis structure, stable and reliable performance.
Efficient operation
1.Adopts 4x3x (1+1) compound transmission,12F+12Rgear, shuttle shift, side control, easy to operate.
2.Vertical double oil cylinder high pressure lifter. large lifting force and good operation adaptability.
3.Increase the volume of diesel tank to meet the requirements of long-term operation.
Comfortable operation

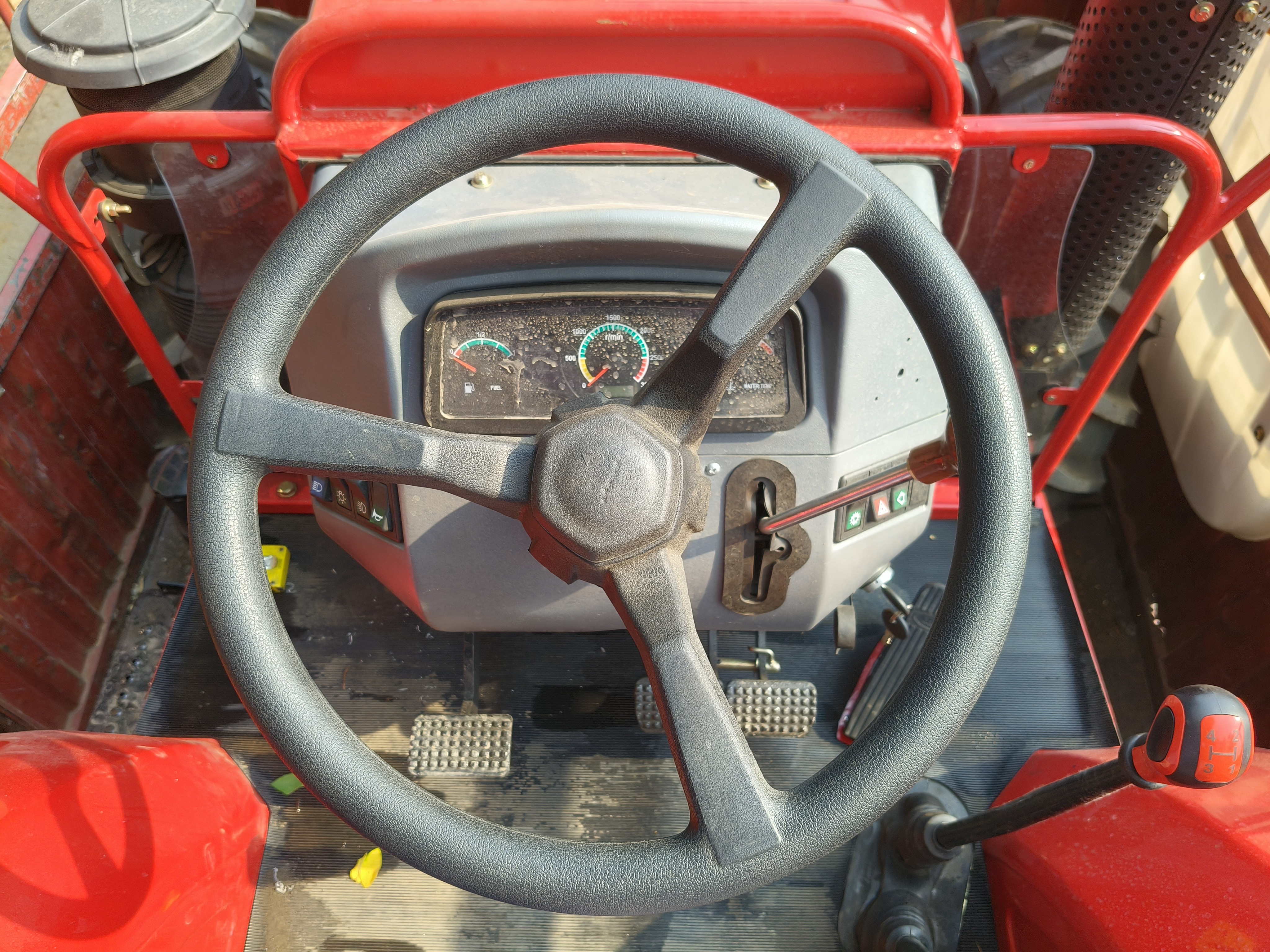

1.flat panel console, shuttle shift under the steering wheel,reasonable man-machine engineering.
2.Full hydraulic steering system, flexible and comfortable operation.
3.Optional for cab. comfortable driving space.
Model | LTB704 | |
Tractor Parameters | Drive Type | 4WD |
Overall Dimension(mm) | 3925×1728×2870 | |
Min. operating weight(kg) | 2565 | |
Rated traction force(kN) | 18.85 | |
Wheel tread (front/rear) | 1265/1300 | |
Wheel base(mm) | 2010 | |
Min. ground clearance(mm) | 360 | |
Min. Turning Radius(mm) | ≤4.3 | |
Theoretical Speed(forward) | 2.32～30.96 | |
Theoretical Speed(reverse) | 2.04～27.14 | |
Engine | Engine model | Xinhcai 4D32ZT31/704 |
Engine Model | Vertical, water cooled, four stroke, direct injection | |
Number of cylinders | 4 | |
Engine Rated speed(r/min) | 2400 | |
Engine Rated power (Kw) | 51.5 | |
Drive System | Clutch | Single,dry type,dual-function |
Gear box | 4×3×（1+1） | |
Main drive | Spiral bevel gearing | |
Differential | Closed, 4 planeatry bevel gears | |
Differential lock | Mechanical locking differential | |
Final drive | Single planeatry gear | |
Traveling Mechanism | Tyre(front) | 8.3-24 |
Tyre(rear) | 11-32 | |
Steering gear | Front wheel hydraulic steering | |
Brake | Wet type, disc brake | |
Working Device | PTO Speed (r/min) | 540/760 or 540/1000 |
PTO Spline Size | φ38mm 8 splines-φ38mm | |
Max. lifting force( kN ) | 12.36 | |

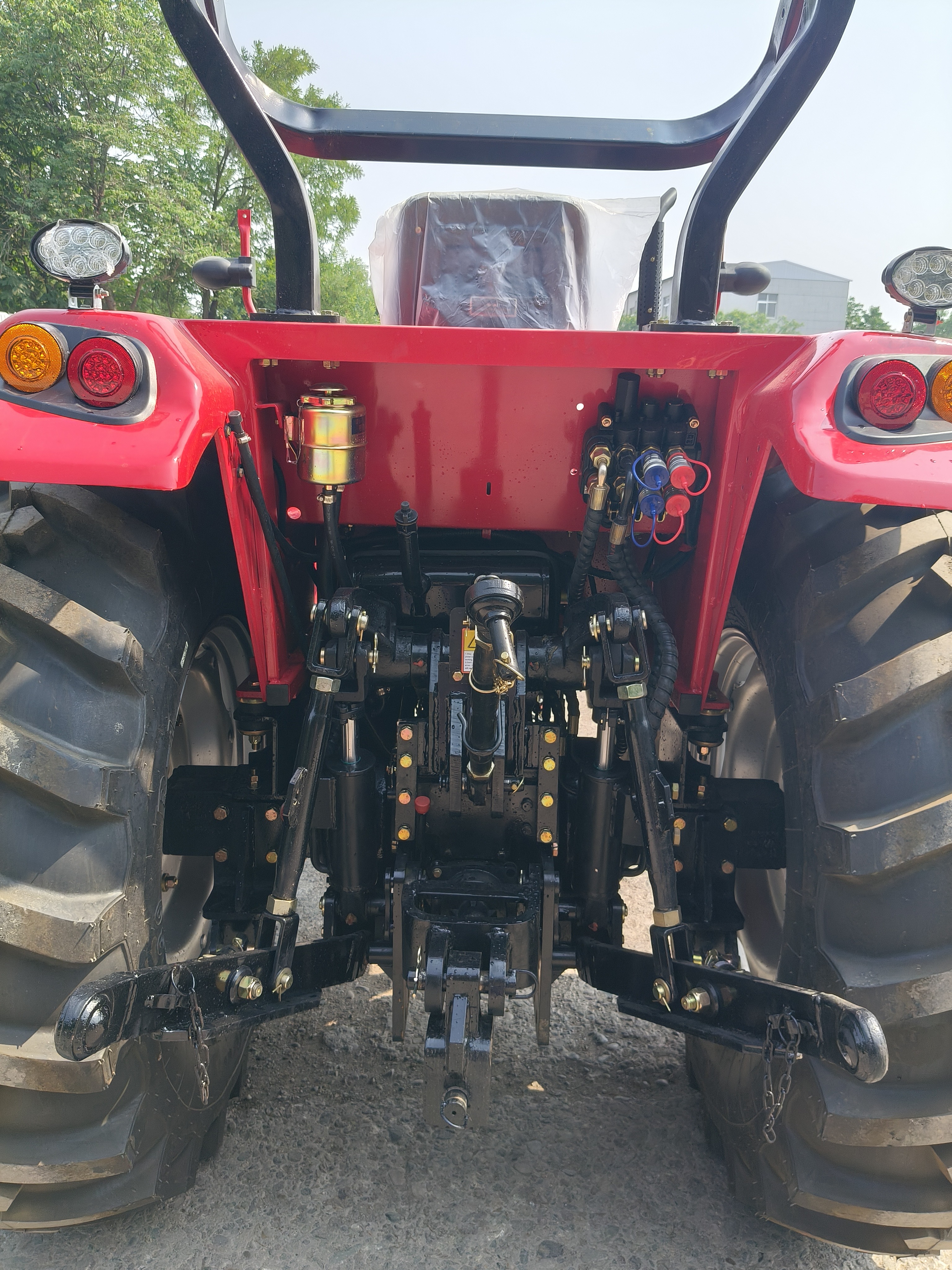

3-Point suspension | Category:II |
