10Ton hydraulic double drums vibratory road roller

Fully hydraulic two-wheel drive, continuously variable speed, two-wheel vibration, variable frequency and amplitude, the engine adopts Cummins 4BT3.9 diesel engine, the travel system and vibration system adopt Danfoss plunger pump, motor and high-pressure pipe and joints, front and rear wheel electronically controlled water sprinkling, standard air-conditioned cab with swivel seat, (optional articulated steering with crab walking device).
$48000
Product Details
Product Details

Luoyang Lutong heavy industry machinery co., LTD which is located in the Airport Industrial Zone Luoyang city, the company was established in 1990, which is covered in three hundred thousand square meters, fixed assets of Five hundred and thirty-six million yuan, workers 1150 people. A variety of processing equipment more than 12000. Have development and production capacity for road roller, motor grader, tractors and other series of machinery.

Luoyang Lutong heavy industry machinery co., LTD. technical power is stronger., which has a city-level technology r&d center, 36 senior engineers, more than 80 engineers, quality inspection staff of 120. Has acquired  nine road roller patent technology. which wins good fame on reliable quality and high-quality service,is appraised as "Star Enterprise","Quality and Credit Enterprise" in province-level and city-level for many times.

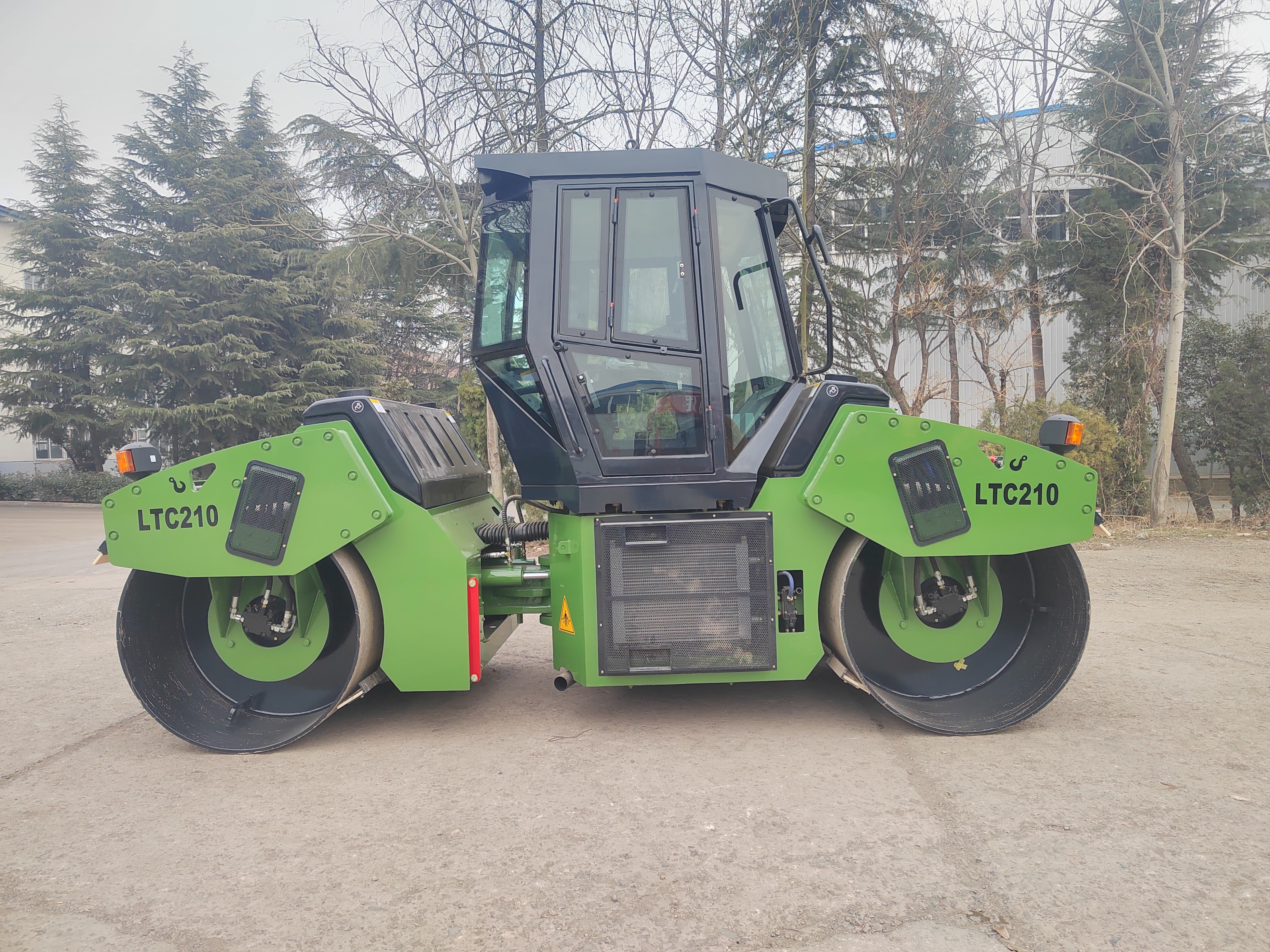

LTC210Hydraulic double drums vibratory roller


LTC208 Hydraulic vibratory rollers are manufactures according to international advanced technology and by use of imported components from abroad. The machine is a double drum tandem vibratory roller. It is Primarily used for the compaction of road bituminous course, sand gravel mixtures and RCC material, being a universal compaction equipment for highway, municipal road, park area and industry ground etc.

Main Features

1、Full hydraulic two wheel double drive and vibration;
2Double frequency double vibration system;
3.Hydrostatic center articulated steering, Optional unique crab agency;
4.Cabin with air condition,comfortable and spacious,the flexible steering seat facilicates the operation;
5.The driver’s cabin can be turned on one side as a whole,to facilitate maintenance;
6Fork-type frame and good hold-down property;
7Hydraulic pump and vibrating motors are of the products made by American manufacturer DANFOSS;


Model


LTC210

Operating mass

kg

10000

Front axle load

kg

5000

Rear axle load

kg

5000

Static linear load

N/cm

289

Form of frame


Fork-type

Water tank capacity

L

2x400

Fuel tank capacity

L

134

Hydraulic tank capacity

L

75

Vibration frequency

mm


High ampl.


0.67

Low ampl.


0.34

Vibration frequency

HZ


High ampl.


45

Low ampl.


50

Centrifugal force

kN


High ampl.


90x2

Low ampl.


69x2

Travel speed

Km/h

0-10

Turning radius

mm

6000

Grade ability

%

30

Steering angle

+30

Drum diameter

mm

1150

Drum width

mm

1730

Transverse swing angle of the vibrating wheel

+8

Type of water spray

mm

Pressure

Wheelbase

mm

3217

Overall dimension

mm

4558x1840x2674

Ground clearance

mm

258

Diesel modelStage II


Cummins 4BT3.9

Diesel modelStage III


Cummins QSB3.9

Diesel power

kw

75

Diesel speed

R/min

2400
