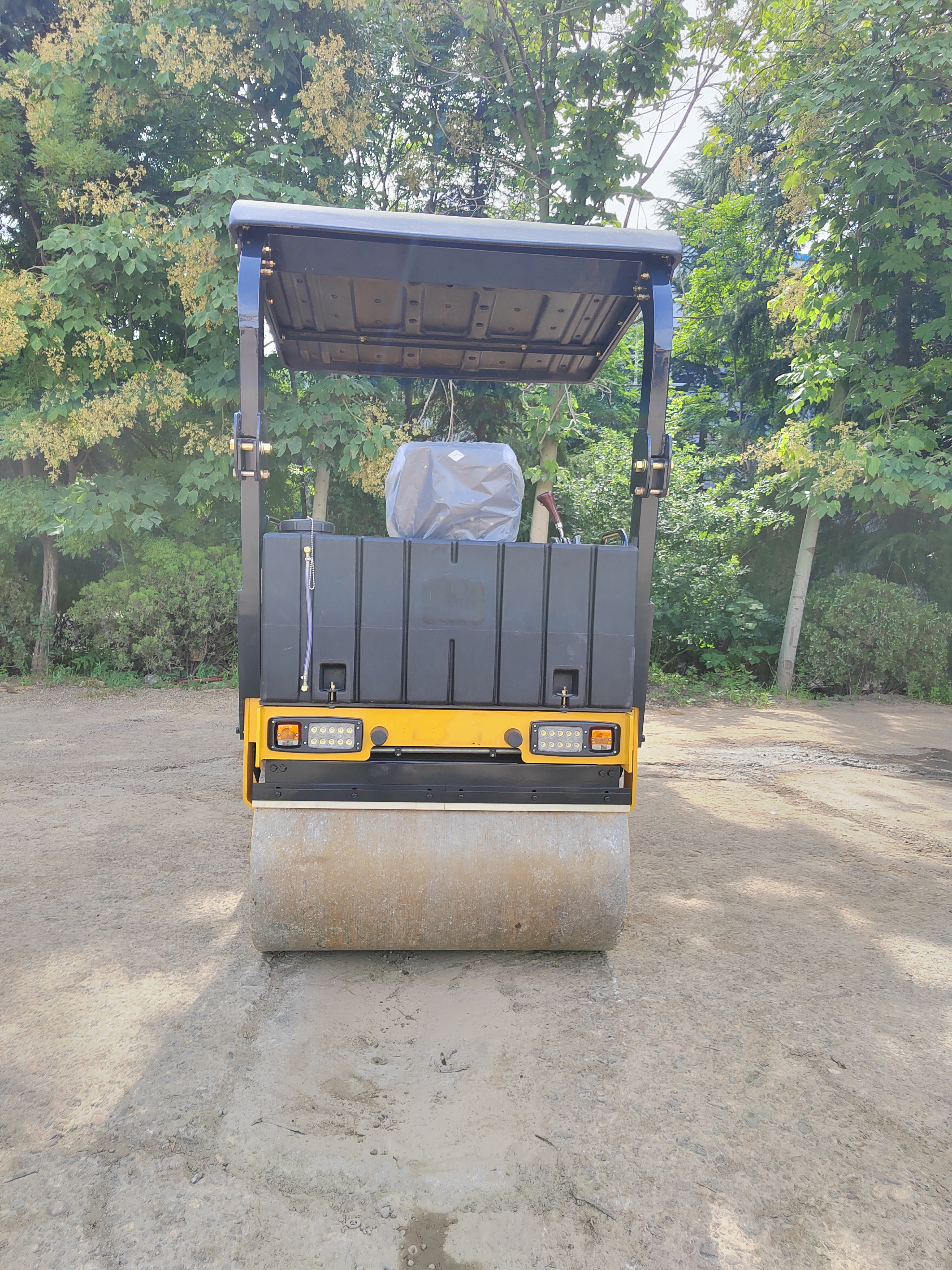

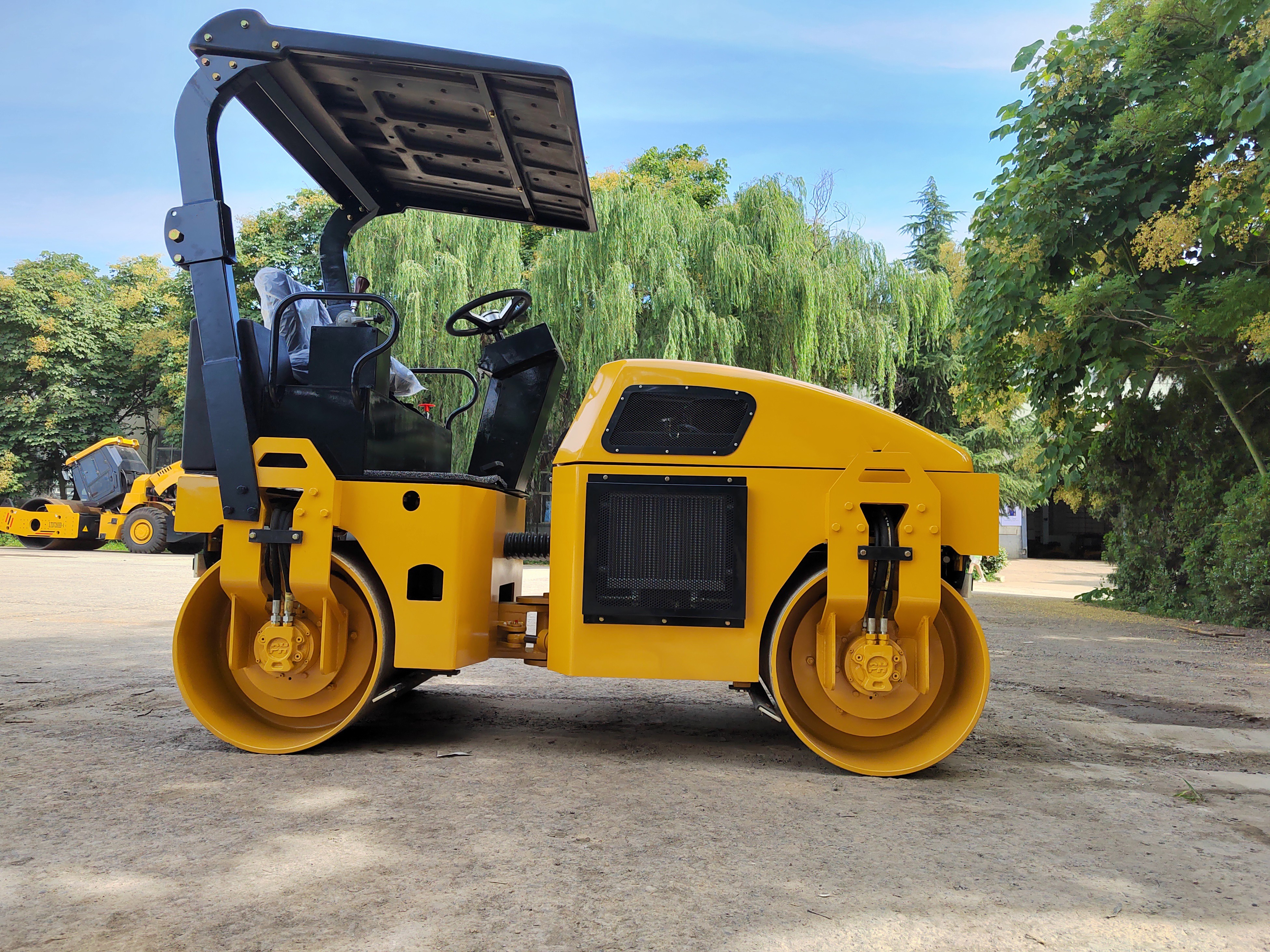

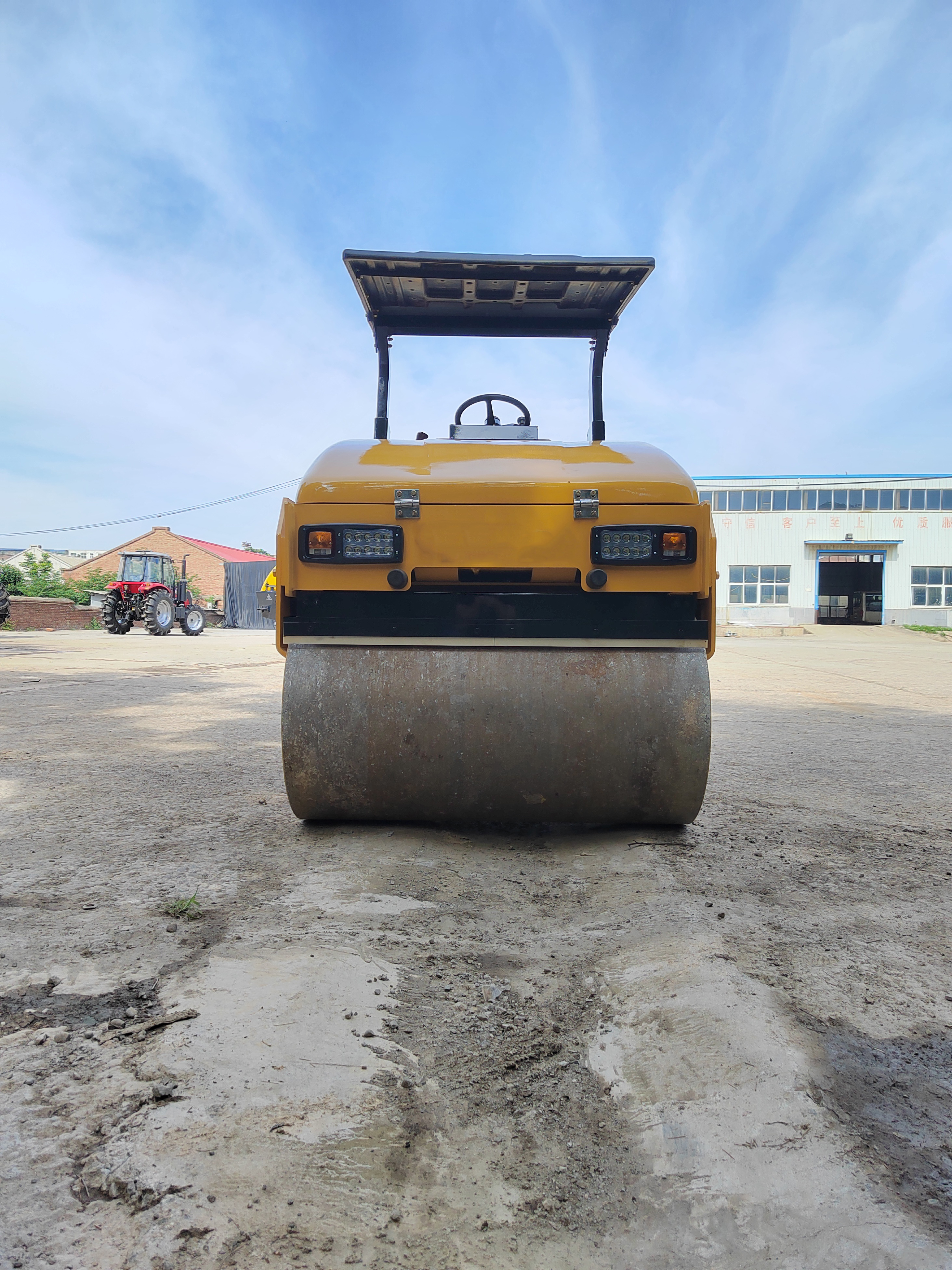

LTC203 3Ton Hydraulic double drums vibratory roller
Fully hydraulic two-wheel drive, stepless speed change, two-wheel vibration, articulated steering, the engine uses Changchai ZN390B National III diesel engine, the travel system uses Danfoss or Poclain plunger pump, Poclain low-speed high-torque motor. The vibration system uses joint venture brand gear pump and motor. Front and rear wheel electronically controlled watering, equipped with anti-rollover awning
$14300
Product Details
Product Details
LTC203 series vibratory roller,applicable for the maintenance of the municipal road as well as suitable for the compaction of the narrow road surfaces such as groove foundation ,building construction ,pipeline backfill and stadium.
MAIN FEATURES
1、Both front and rear drum are hydraulically driven, both front and rear drum has vibration force, hydraulic steering ,with reliable performance and good cost-effectiveness.
2、Both front and rear drums have scraping and water spray unit,advanced sprinkler pump system can achieve intermittent ,greatly expanded mechanical proper working condition. 3、Adopt ZN390B diesel engine,Energy conservation and environmental ,very convenient for use and maintenance. 4、Compact integral structure,small volume , capable of used for compaction on narrow site, has a good cost-effectiveness with low investment and fast returns.
Main Technical Parameters
MODEL | LTC203 | |
Operating mass | kg | 3300 |
Static linear load (F/R) | N/cm | 136/136 |
Vibratory frequency | mm | 0.5/0.5 |
Centrifugal force | KN | 2×30 |
Vibration frequency | kZ | 50 |
Travel speed | Km/h | 0-12 |
Grade ability | % | 30 |
Steering angle | 。 | +26 |
Overall dimension | mm | 2900×1400×2520 |
Drum diameter | mm | 700 |
Drum width | mm | 1250 |
Wheelbase | mm | 2010 |
Diesel engine power | kW | 26.5 |
Diesel engine model | ZN390B | |
Water tank capacity | L | 200 |
