8Ton hydraulic double drums vibratory road roller

Fully hydraulic two-wheel drive, continuously variable speed, two-wheel vibration, variable frequency and amplitude, the engine adopts Cummins 4BT3.9 diesel engine, the travel system and vibration system adopt Danfoss plunger pump, motor and high-pressure pipe and joints, front and rear wheel electronically controlled water sprinkling, standard air-conditioned cab with swivel seat, (optional articulated steering with crab walking device).
$44550
Product Details
Product Details

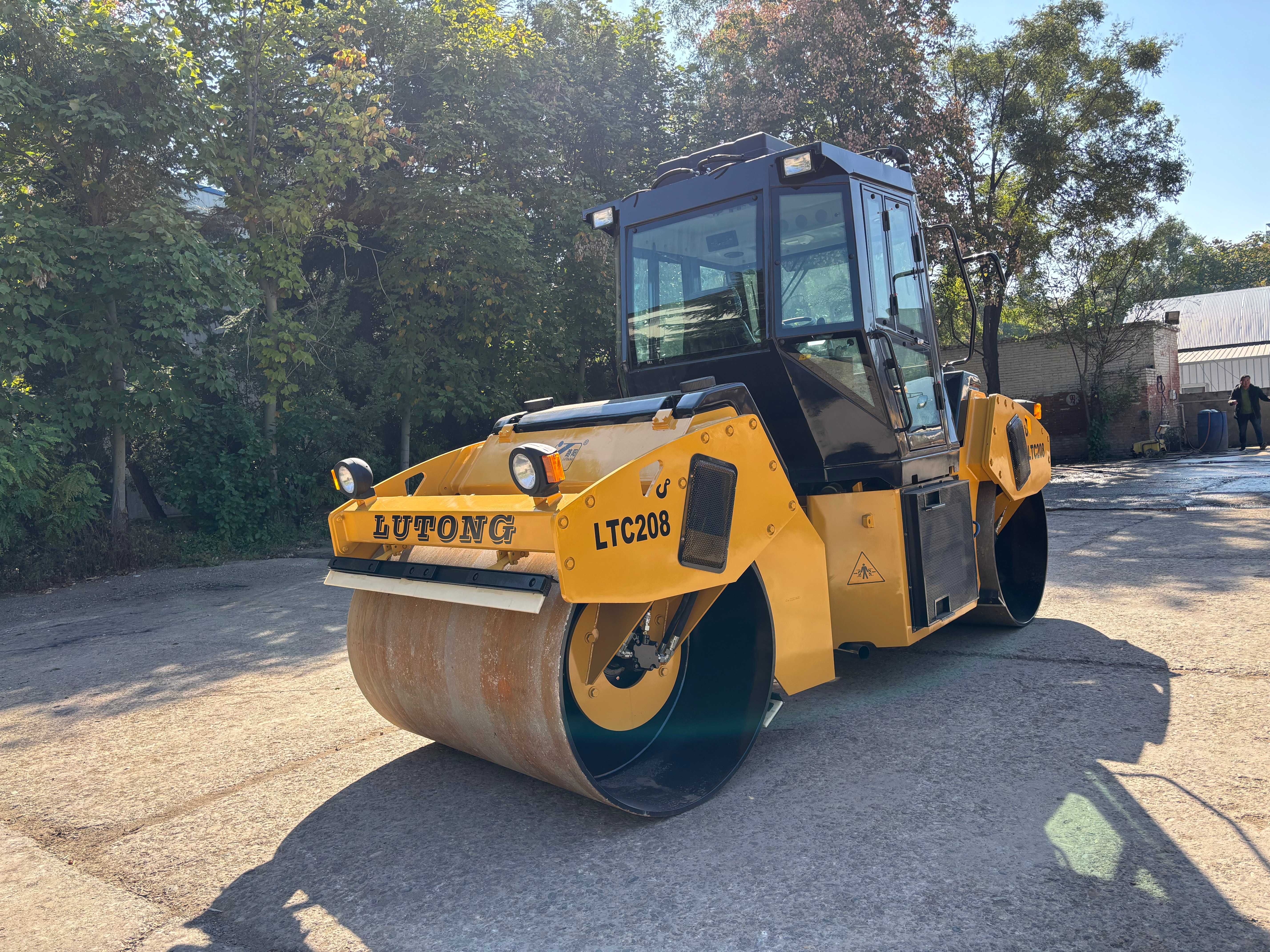

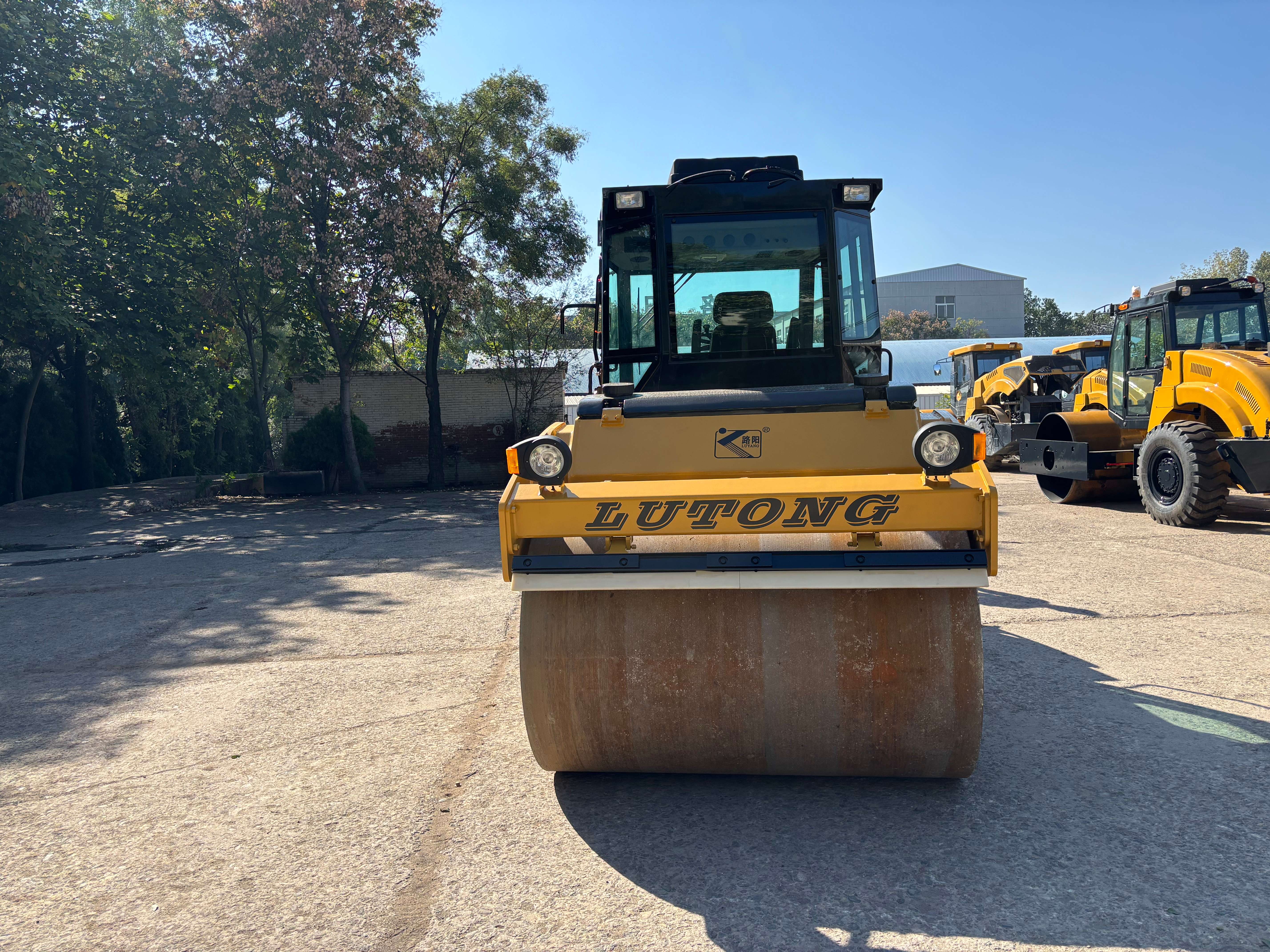

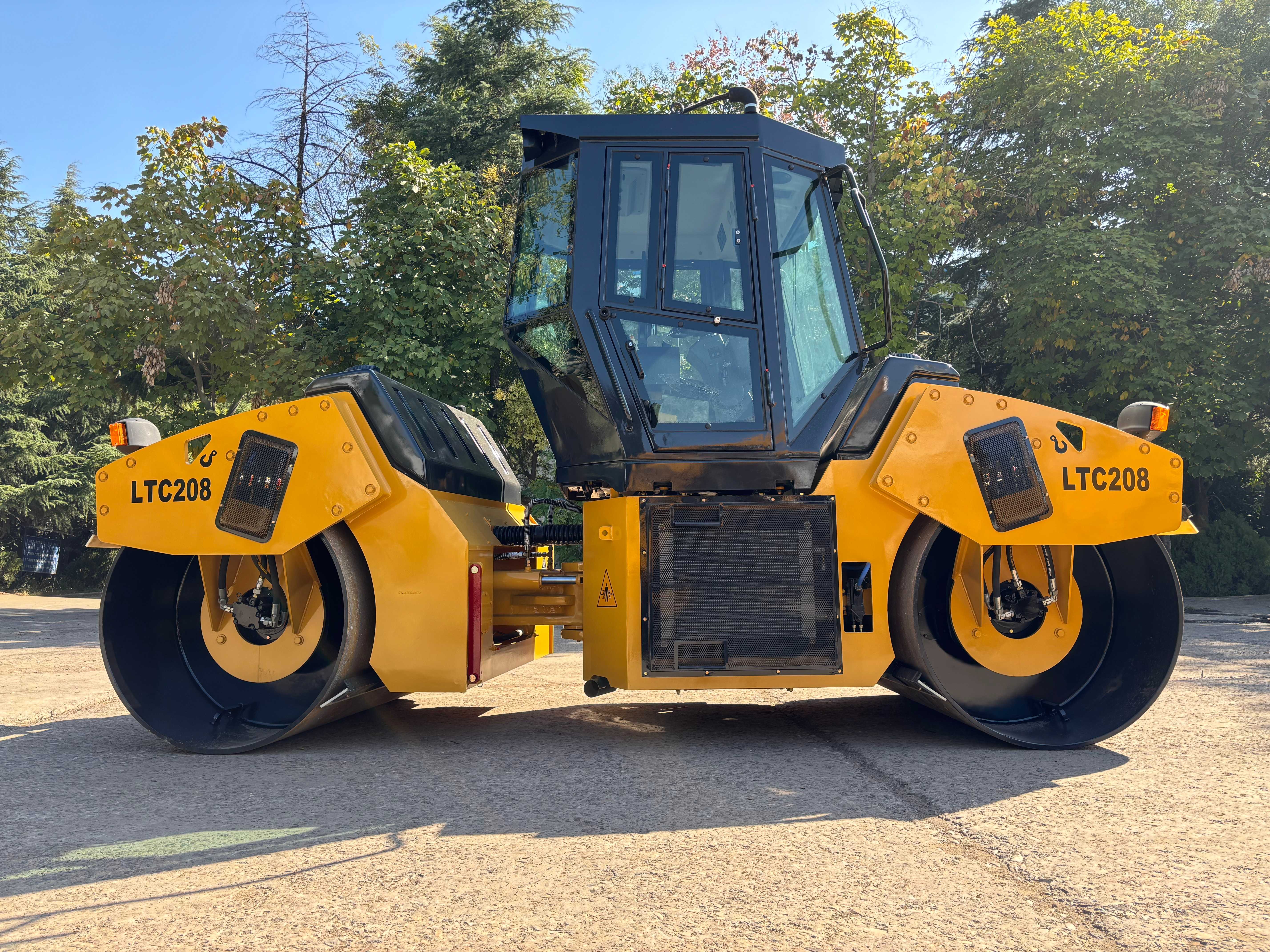

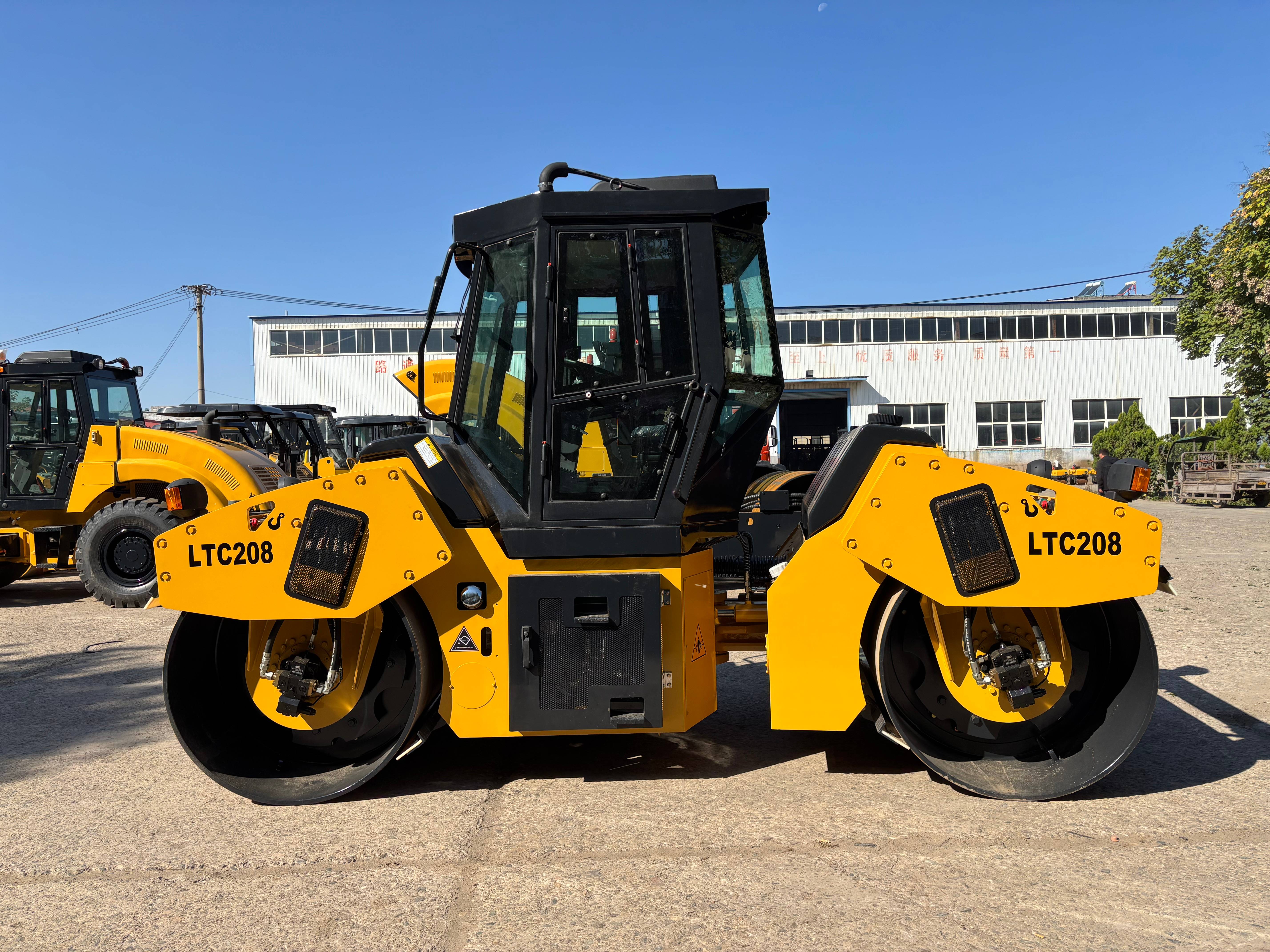

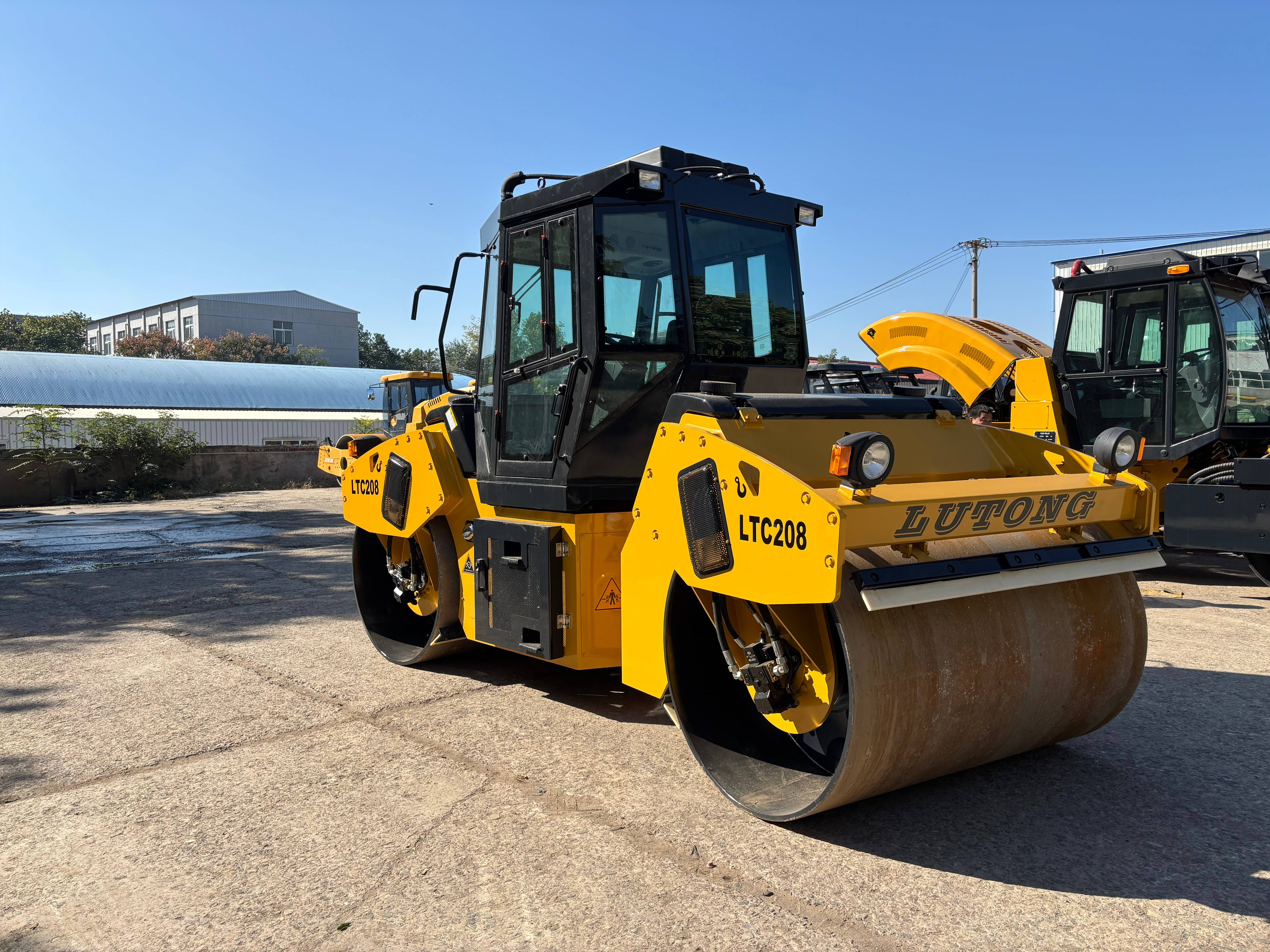

LTC208 Hydraulic double drums vibratory roller

LTC208 Hydraulic vibratory rollers are manufactures according to international advanced technology and by use of imported components from abroad. The machine is a double drum tandem vibratory roller. It is Primarily used for the compaction of road bituminous course, sand gravel mixtures and RCC material, being a universal compaction equipment for highway, municipal road, park area and industry ground etc.


Main Features

1、Full hydraulic two wheel double drive and vibration;
2Double frequency double vibration system;
3.Hydrostatic center articulated steering, Optional unique crab agency;
4.Cabin with air condition,comfortable and spacious,the flexible steering seat facilicates the operation;
5.The driver’s cabin can be turned on one side as a whole,to facilitate maintenance;
6Fork-type frame and good hold-down property;
7Hydraulic pump and vibrating motors are of the products made by American manufacturer DANFOSS;

Model


LTC208

Operating mass

kg

8000

Front axle load

kg

4000

Rear axle load

kg

4000

Static linear load

N/cm

231

Form of frame


Fork-type

Water tank capacity

L

2x400

Fuel tank capacity

L

134

Hydraulic tank capacity

L

75

Vibration frequency

mm


High ampl.


0.67

Low ampl.


0.34

Vibration frequency

HZ


High ampl.


45

Low ampl.


50

Centrifugal force

kN


High ampl.


90x2

Low ampl.


69x2

Travel speed

Km/h

0-10

Turning radius

mm

6000

Grade ability

%

40

Steering angle

+30

Drum diameter

mm

1150

Drum width

mm

1730

Transverse swing angle of the vibrating wheel

+8

Type of water spray

mm

Pressure

Wheelbase

mm

3217

Overall dimension

mm

4558x1840x2674

Ground clearance

mm

258

Engine model


Cummins 4BT3.9

Engine power

kw

75

Engine speed

R/min

2400
