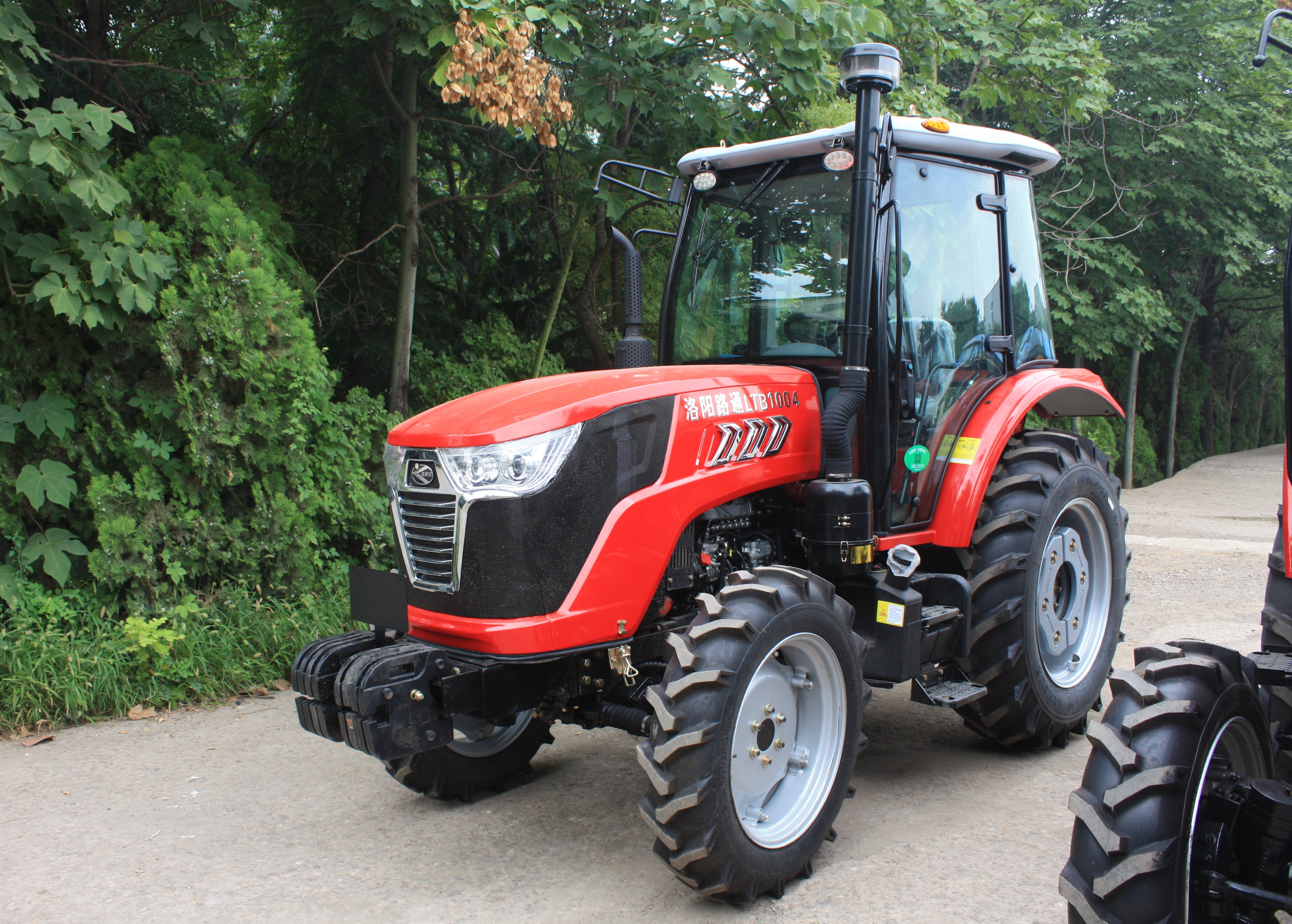

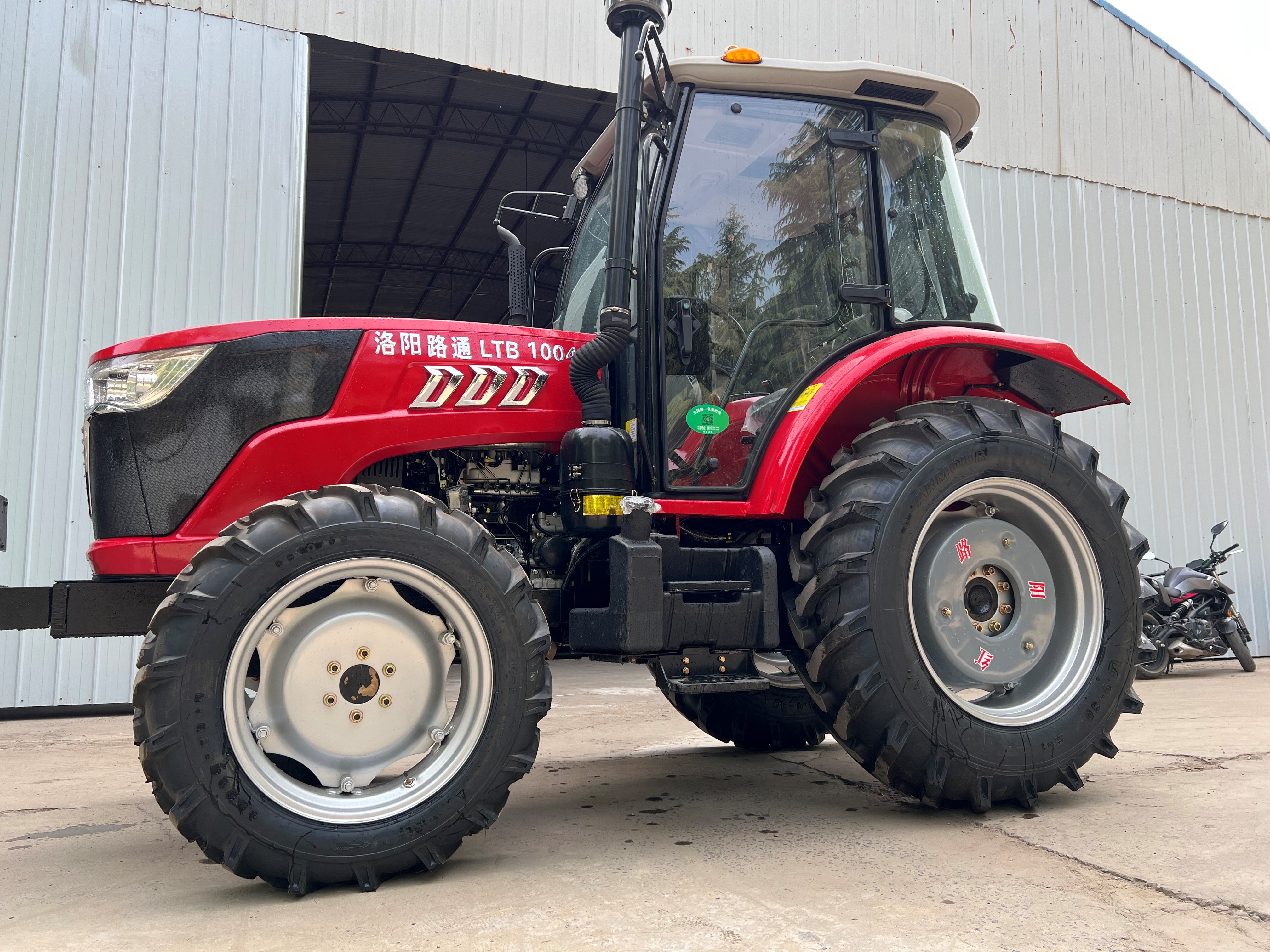

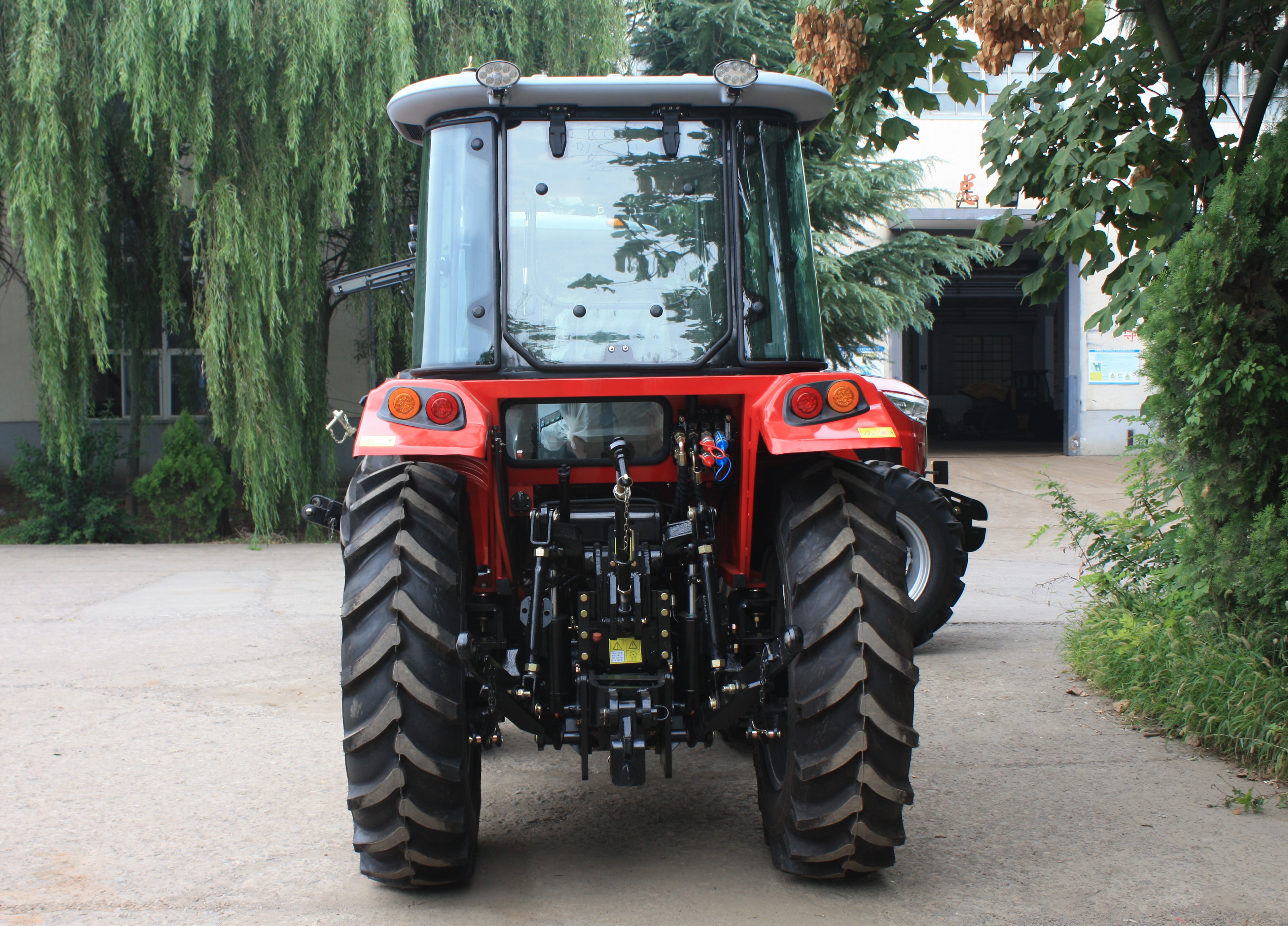

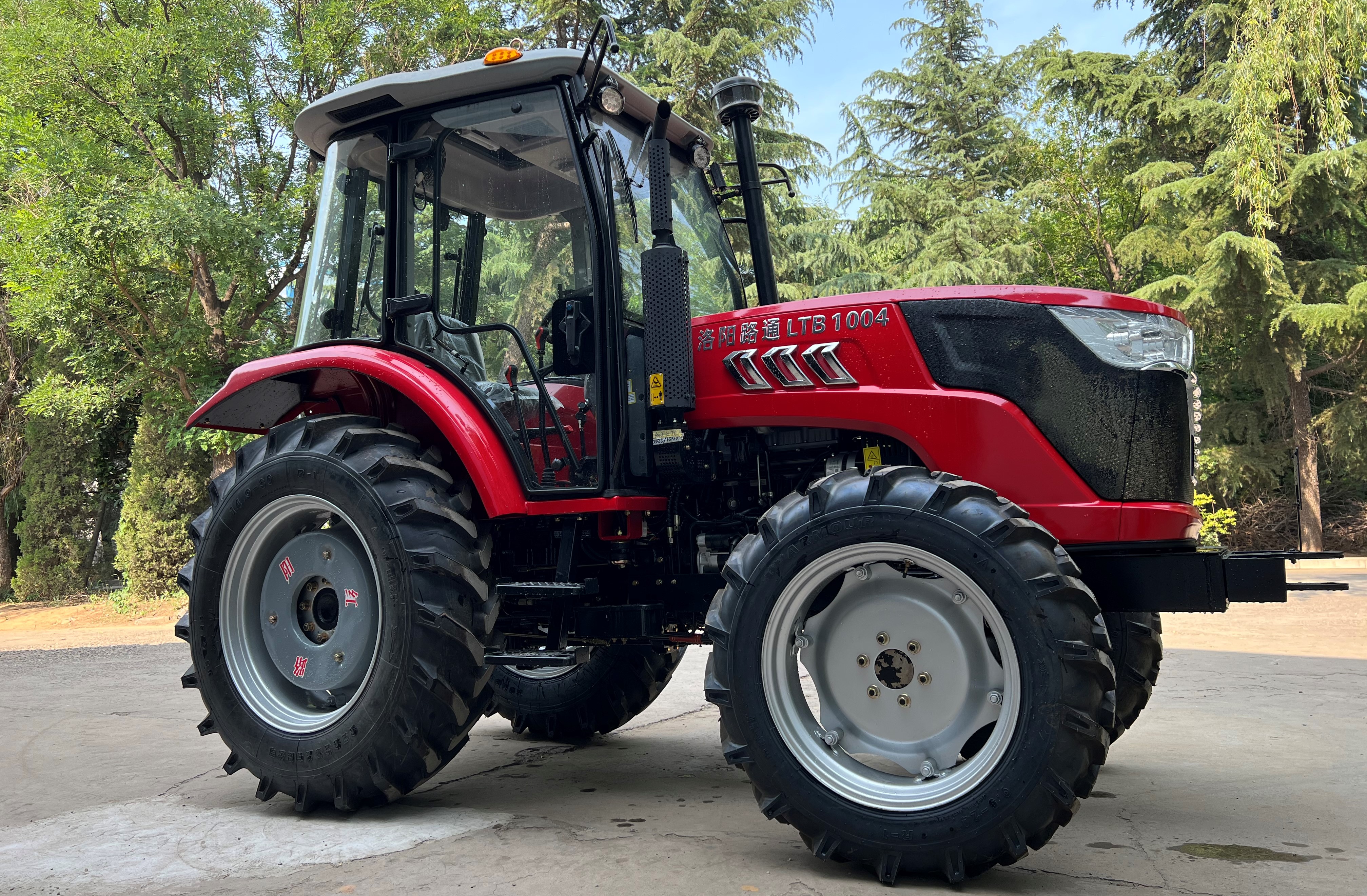

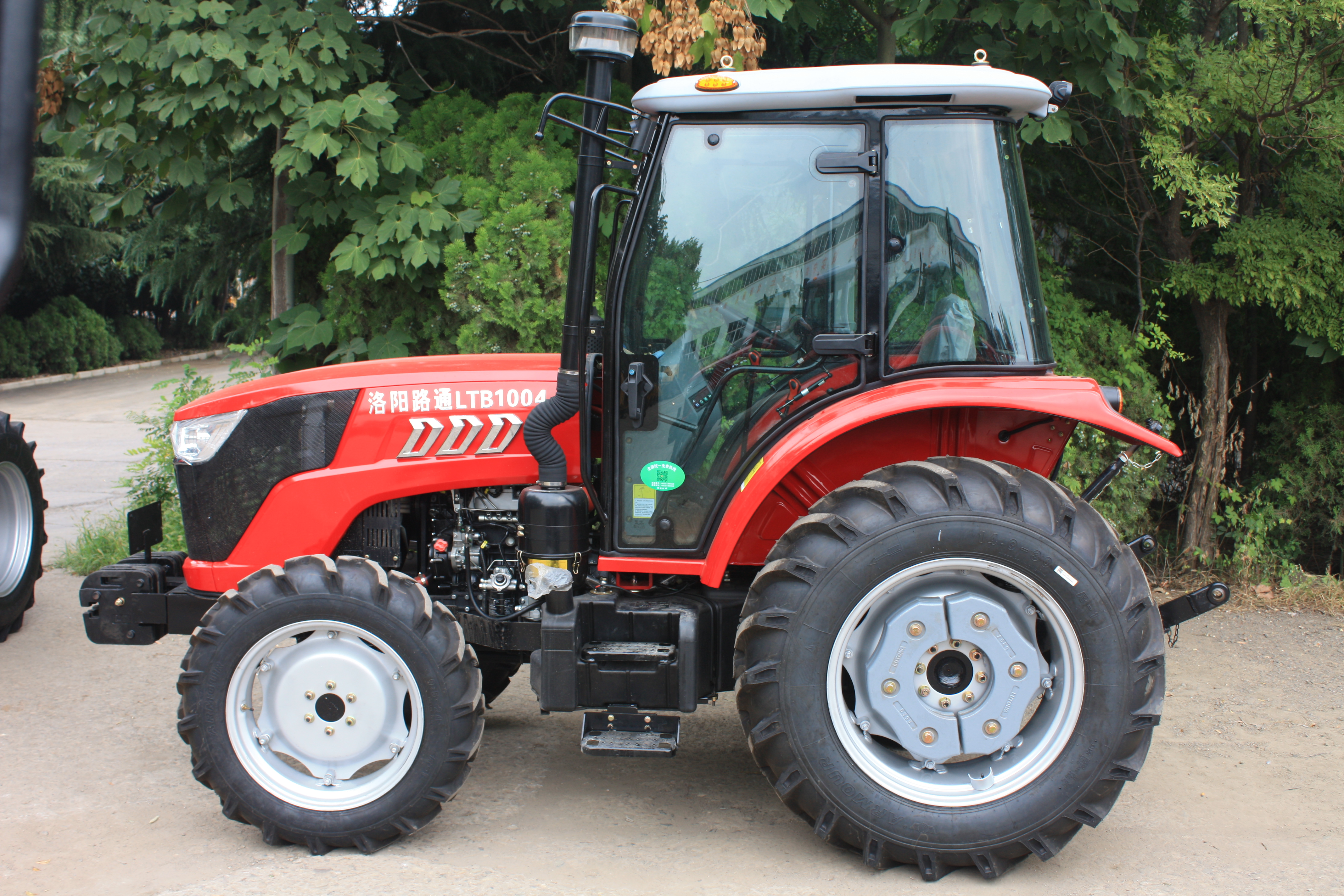

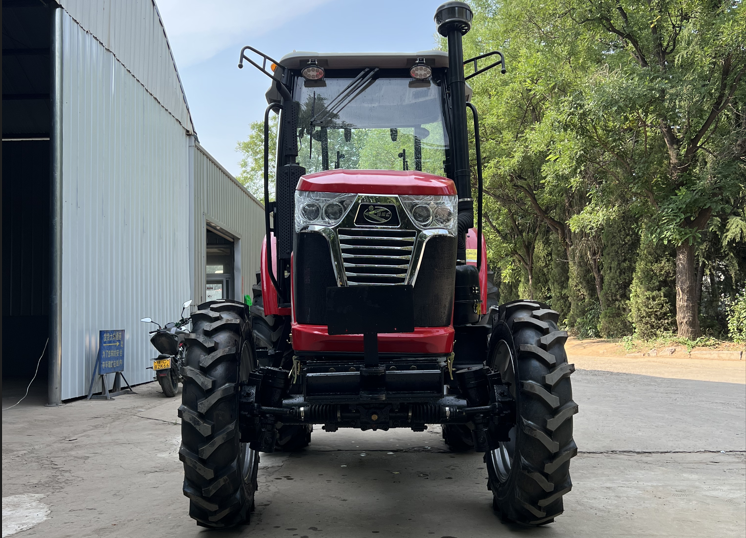

LTB1004 100HP 4WD Tractor
Cheap 100HP 4WD Tractor as Farming Machine for Sale with New Produced
$1000000000
Product Details
Product Details
Technical Features
Strong motive power
1.Optional for Quanchai diesel engine series, adapt to the needs of different regions.
High reliability
1.Imported high strength powder metallurgic clutch plate.reliable transmission.
2.Independent oil circuit of hydraulic system. high cleanliness and low failure rate.
3.Reinforced chassis structure, stable and reliable performance.
Efficient operation
1.Adopts 4x3x (1+1) compound transmission,12F+12Rgear, shuttle shift, side control, easy to operate.
2.Vertical double oil cylinder high pressure lifter. large lifting force and good operation adaptability.
3.Increase the volume of diesel tank to meet the requirements of long-term operation.
Comfortable operation
1.Flat panel console, shuttle shift under the steering wheel,reasonable man-machine engineering.
2.Full hydraulic steering system, flexible and comfortable operation.
3.Optional for cab. comfortable driving space.
Model | LTB1004 | |
Tractor Parameters | Drive Type | 4WD |
Overall Dimension(mm) | 4230×1750×2820 | |
Min. operating weight(kg) | 3250 | |
Rated traction force(kN) | 23.88 | |
Wheel tread (front/rear) | 1420/1352 | |
Wheel base(mm) | 2070 | |
Min. ground clearance(mm) | 400 | |
Min. Turning Radius(mm) | ≤4.3 | |
Theoretical Speed(forward) | 2.51～32.26 | |
Theoretical Speed(reverse) | 2.20～28.27 | |

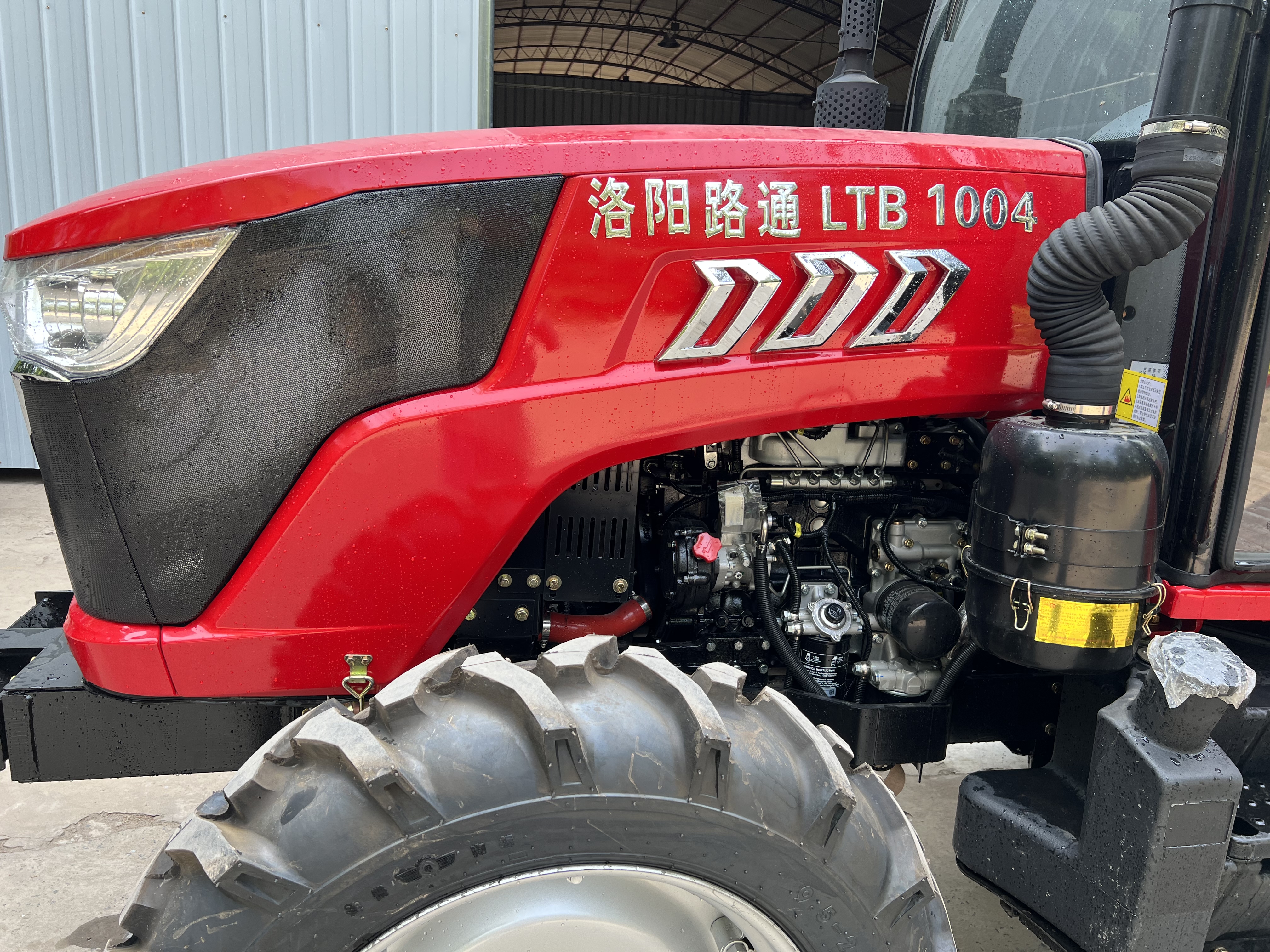

Engine | Engine model | Quanchai 4C6-100C35 |
Engine Model | Vertical, water cooled, four stroke, direct injection | |
Number of cylinders | 4 | |
Engine Rated speed(r/min) | 2400 | |
Engine Rated power (Kw) | 73.5 | |
Clutch | Single,dry type,dual-function | |
Gear box | 4×3×（1+1） | |
Main drive | Spiral bevel gearing | |
Differential | Closed, 4 planeatry bevel gears | |
Differential lock | Mechanical locking differential | |
Final drive | Single planeatry gear | |
Traveling Mechanism | Tyre(front) | 9.5-24 |

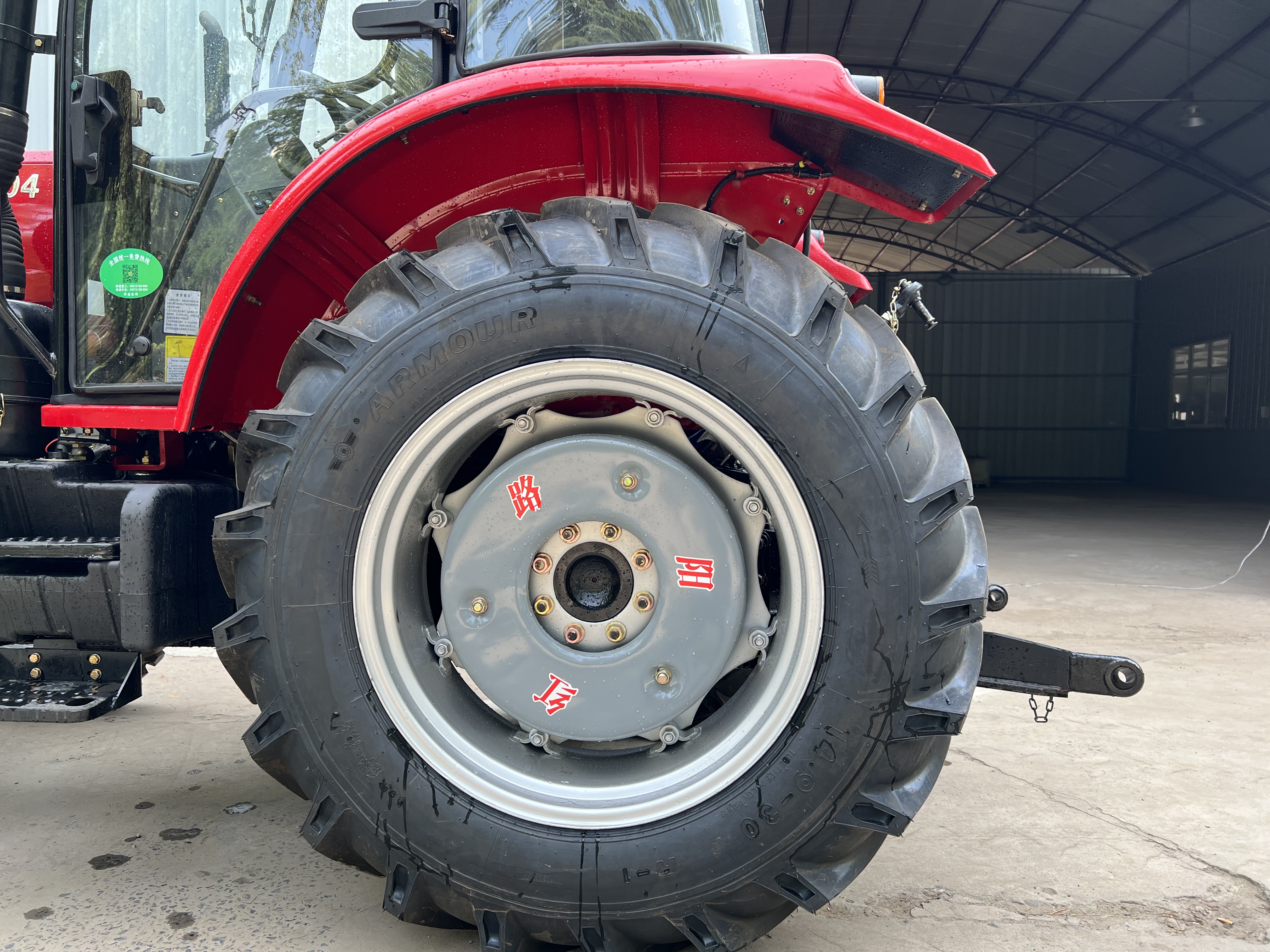

Tyre(rear) | 14.9-30 | |
Steering gear | Front wheel hydraulic steering | |
Brake | Wet type, disc brake | |
Working Device | PTO Speed (r/min) | 540/760 |
PTO Spline Size | φ38mm 8 splines-φ38mm | |
Max. lifting force( kN ) | 17.64 | |
3-Point suspension | Category:II |
