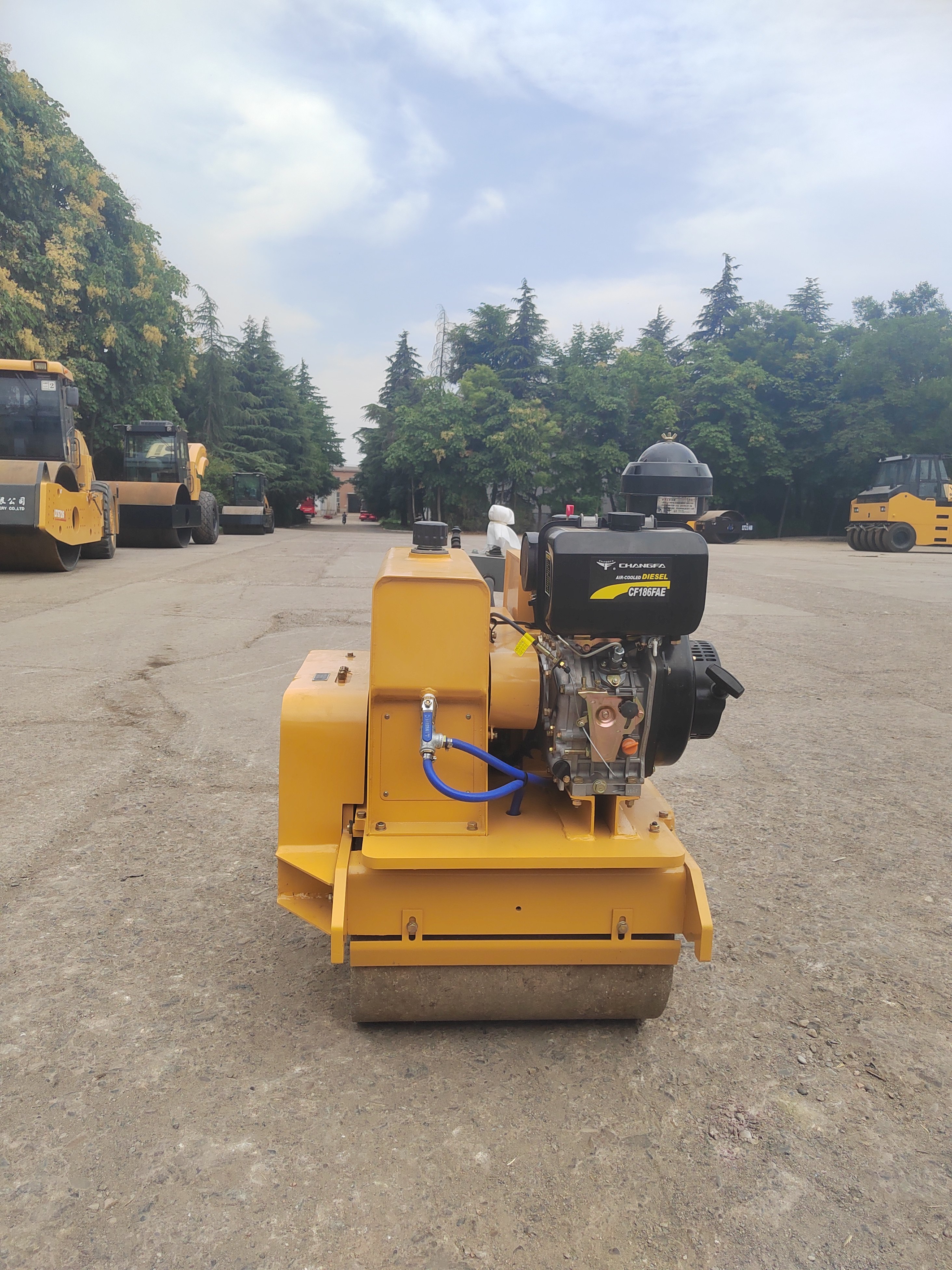

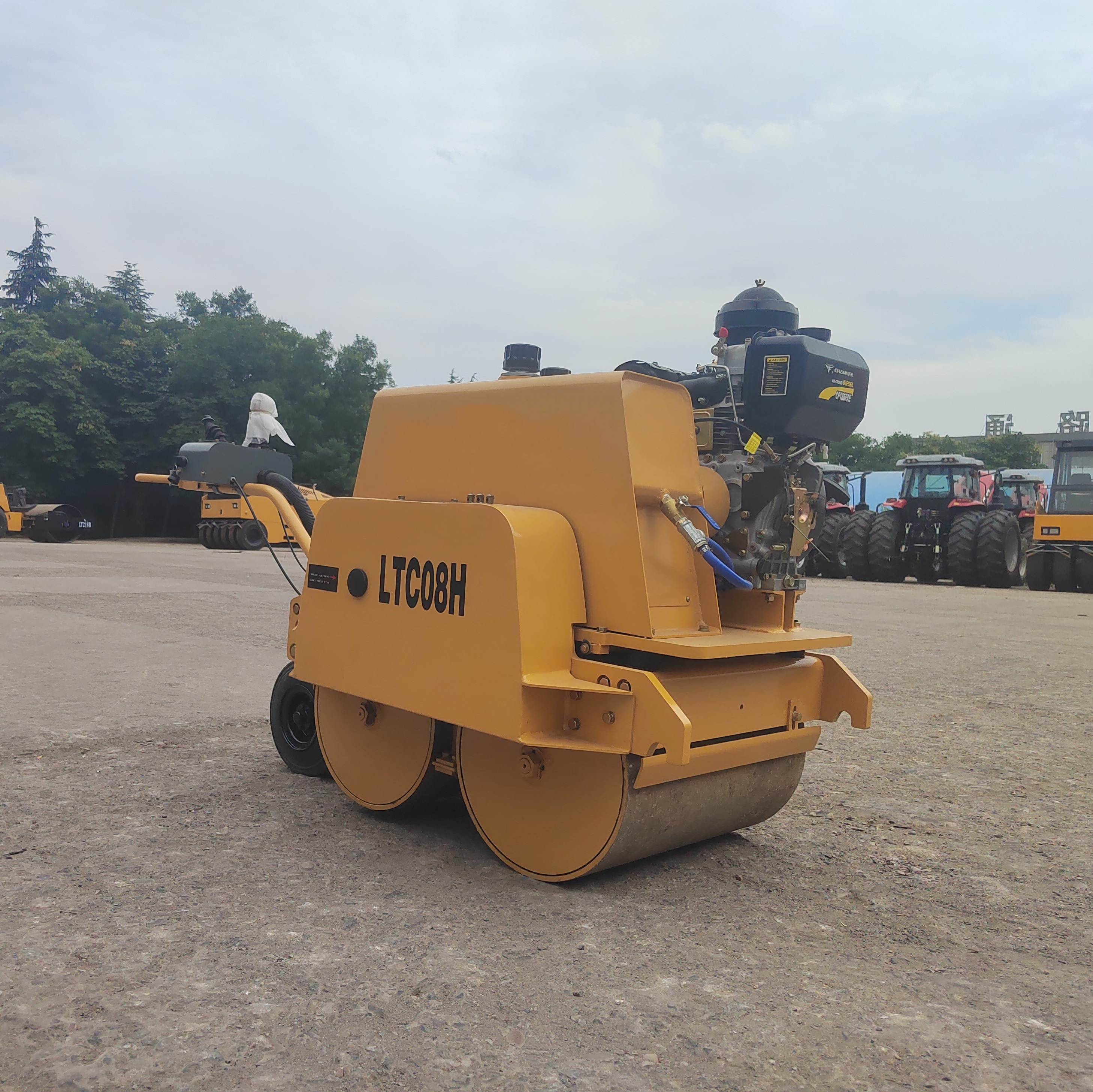

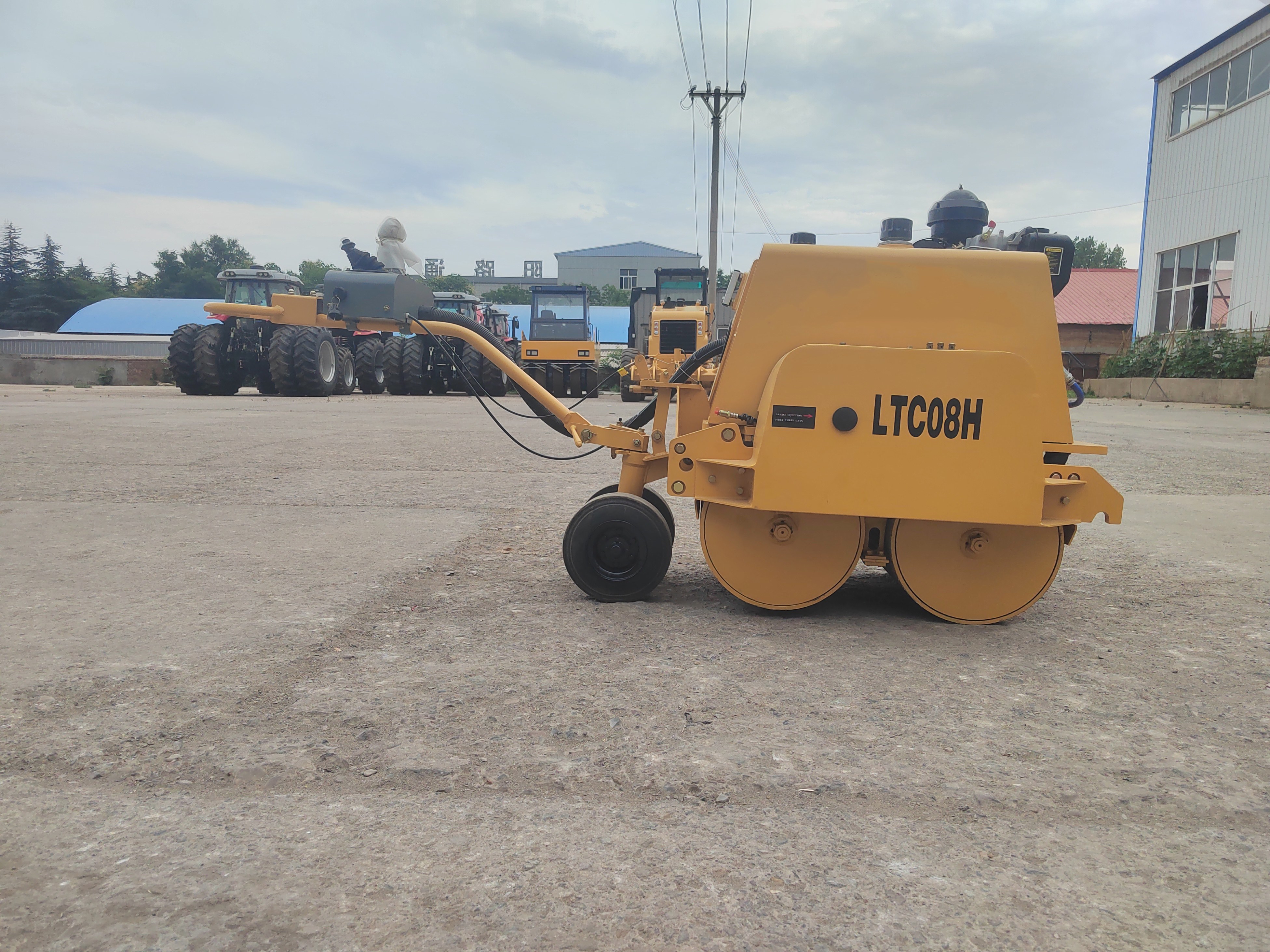

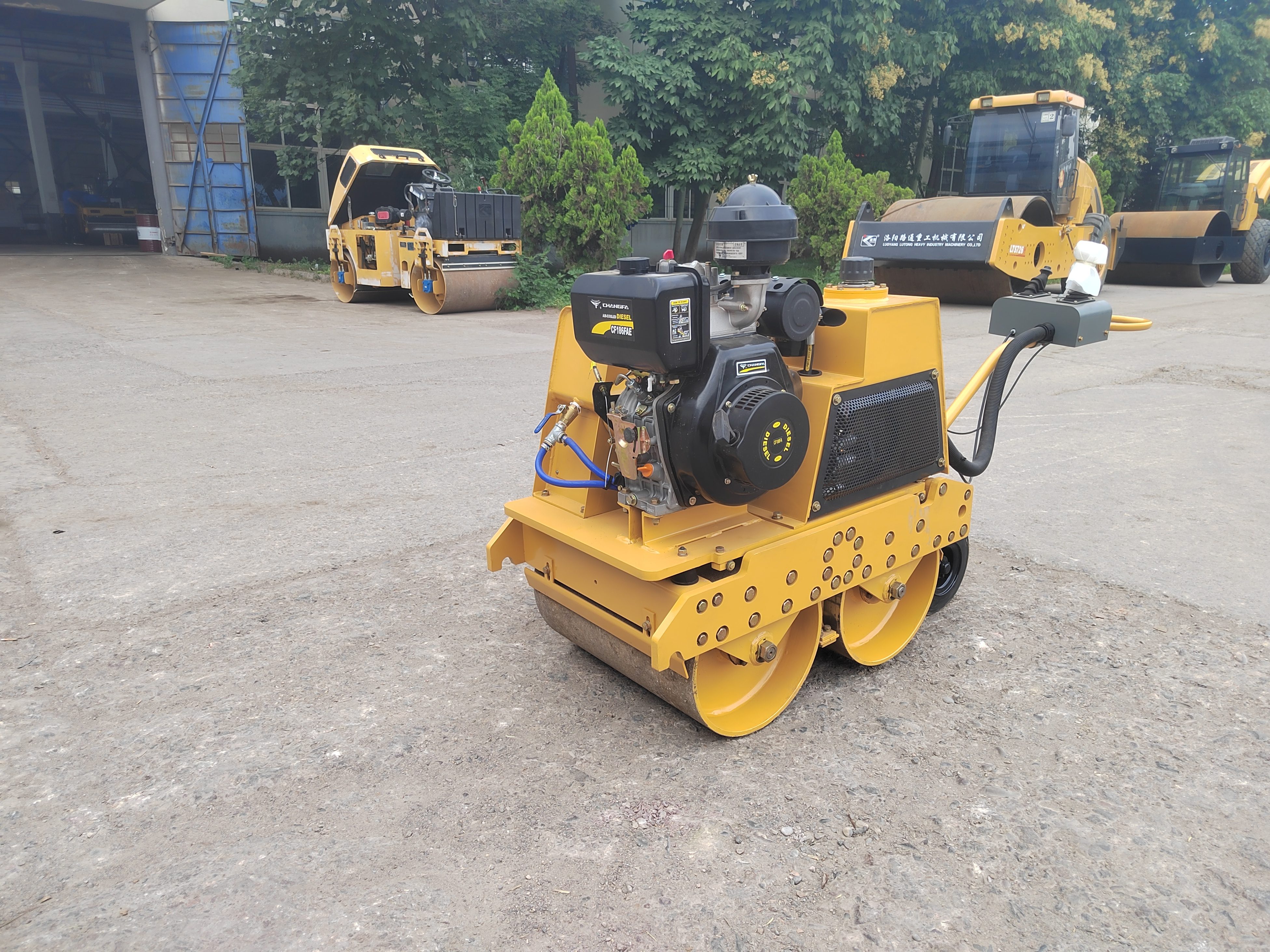

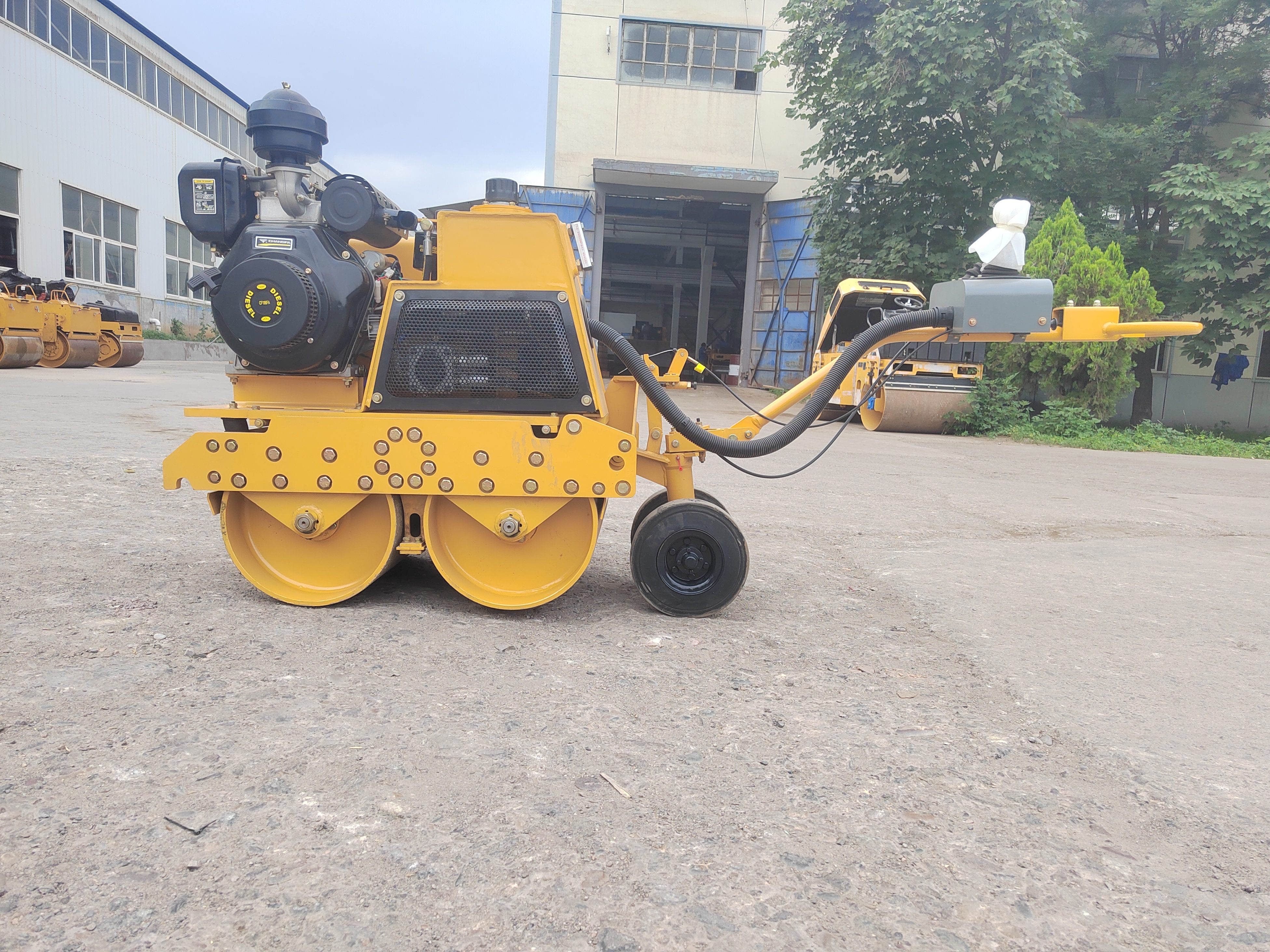

LTC08H Hydraulic walking behind vibratory roller
LTC08H Hydraulic walking behind vibratory road roller can be used for municipal road construction,highway maintenance ,and rolling work at narrow road surface ,such as foundation of groove wider than 0.8m ,building construction ,back-filling for pipeline and stadium ground
$4300
Product Details
Product Details
LTC08H Main Features
1、The whole machine has a nice shape,compact structure and small size ,it can do rolling work in narrow ground;
2、All wheel drive ,strong climbing ability;

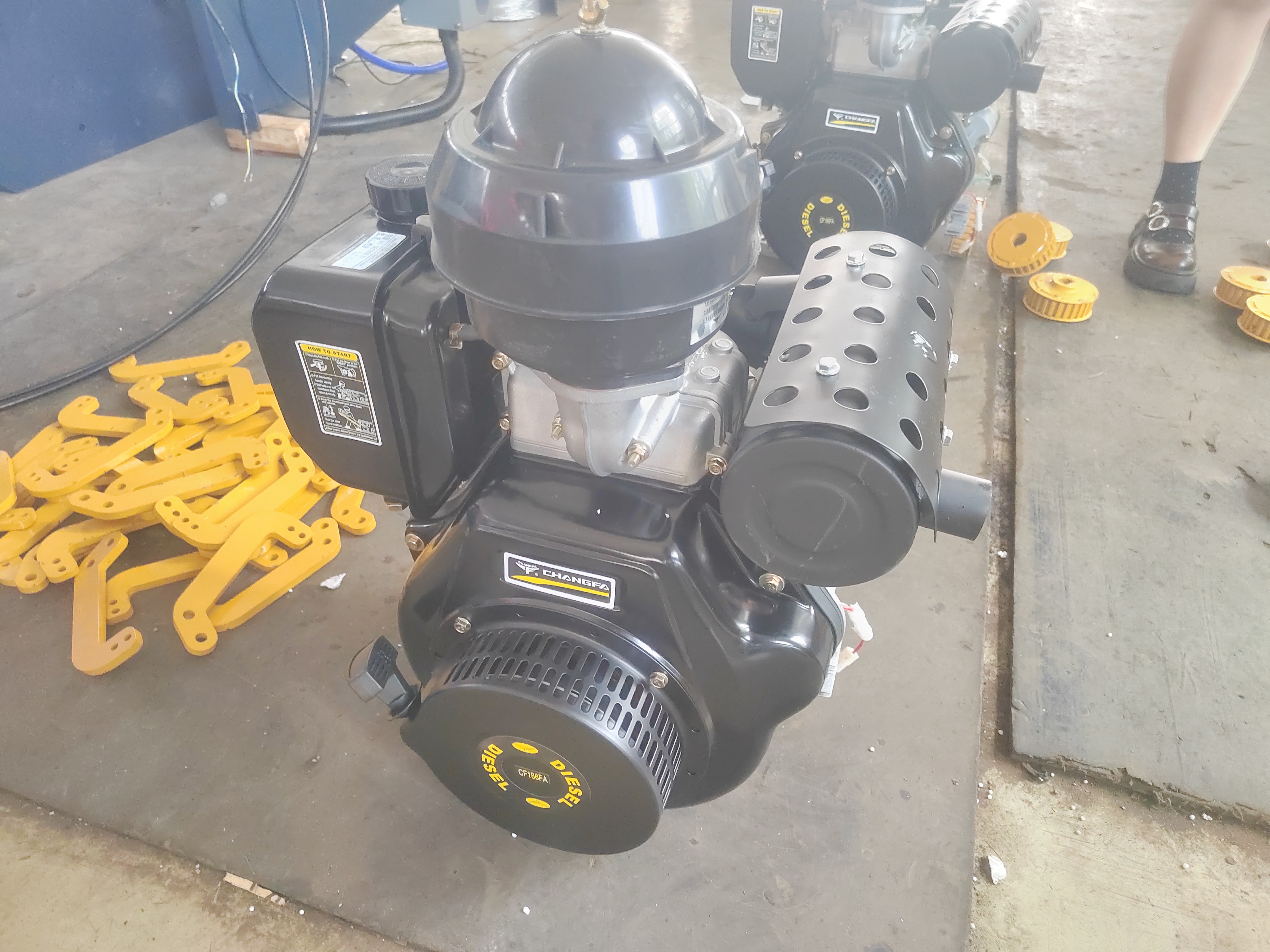

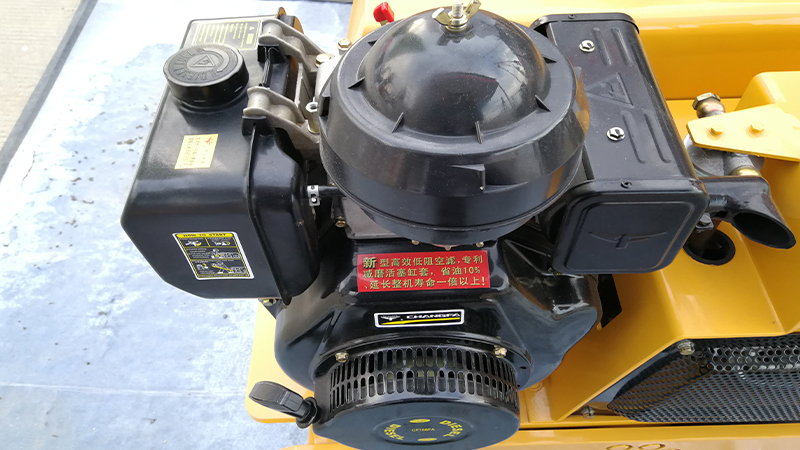

3、Using CF186F vertical direct-spray air-cooled engine ,with both electrical and manual startup devices;

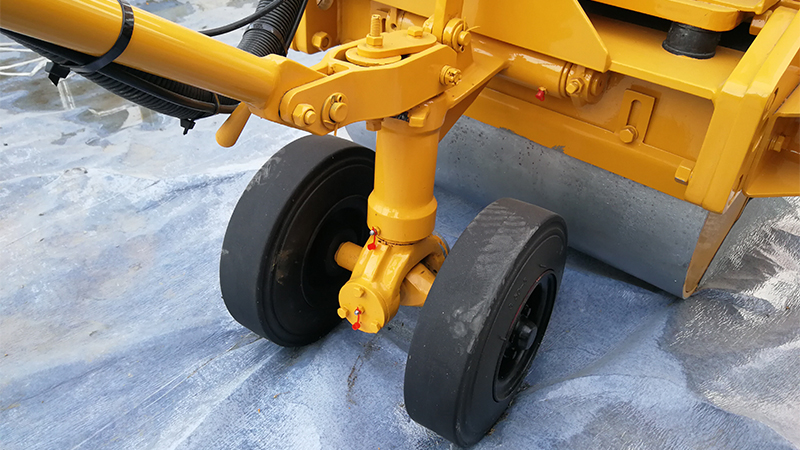

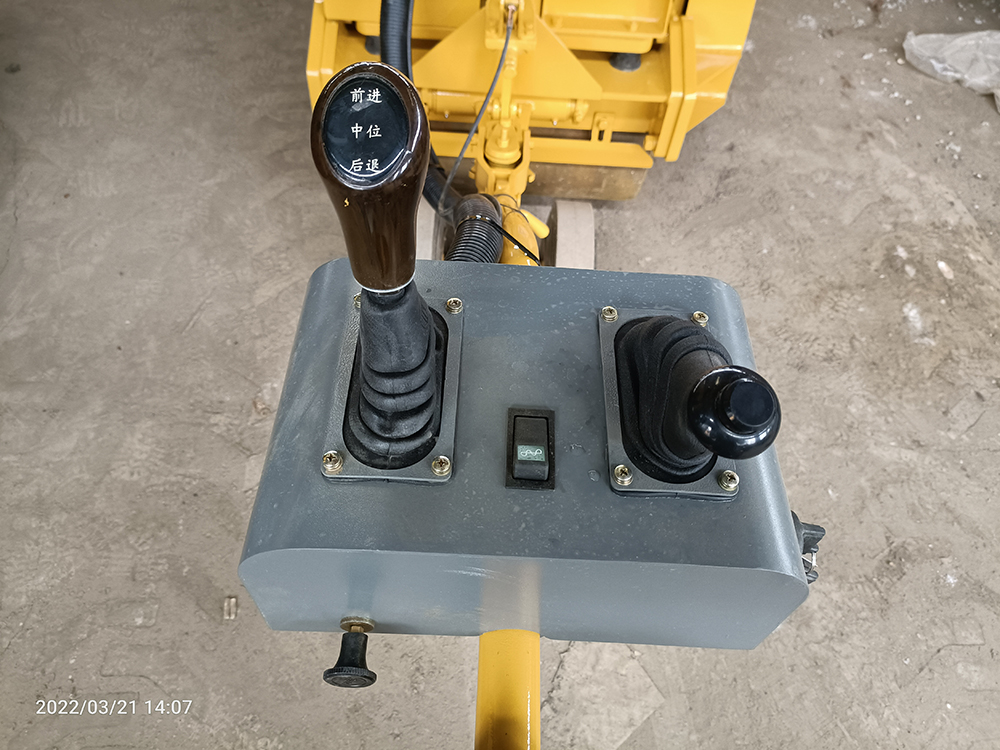

4、Designed with guide wheel and joystick,it is labor saving and easy to control;
5、Hydraulic travel,adopt imported pump& starting motor,CVT
Main technical parameters
Model | LTC08H | |
Operating mass | kg | 770 |
Static linear load | N/cm | 62/62 |
Vibratory amplitude | mm | 0.25 |
Vibratory frequency | Hz | 48 |
Centrifugal force | KN | 12 |
Travel speed | km/h | 0-4 |
Grade ability | % | 40 |
Turning speed | mm | 2700 |
Turning angle | 。 | +30 |
Overall dimension | mm | 2400*880*1100 |
Vibration drum diameter | mm | 400 |
Drum width | mm | 600 |
Wheelbase | mm | 470 |
Diesel power/model | kW | 5.68/CF186F |
Water tank capacity | L | 32 |
