LTP1016H 10-16ton hydraulic pneumatic tires roller

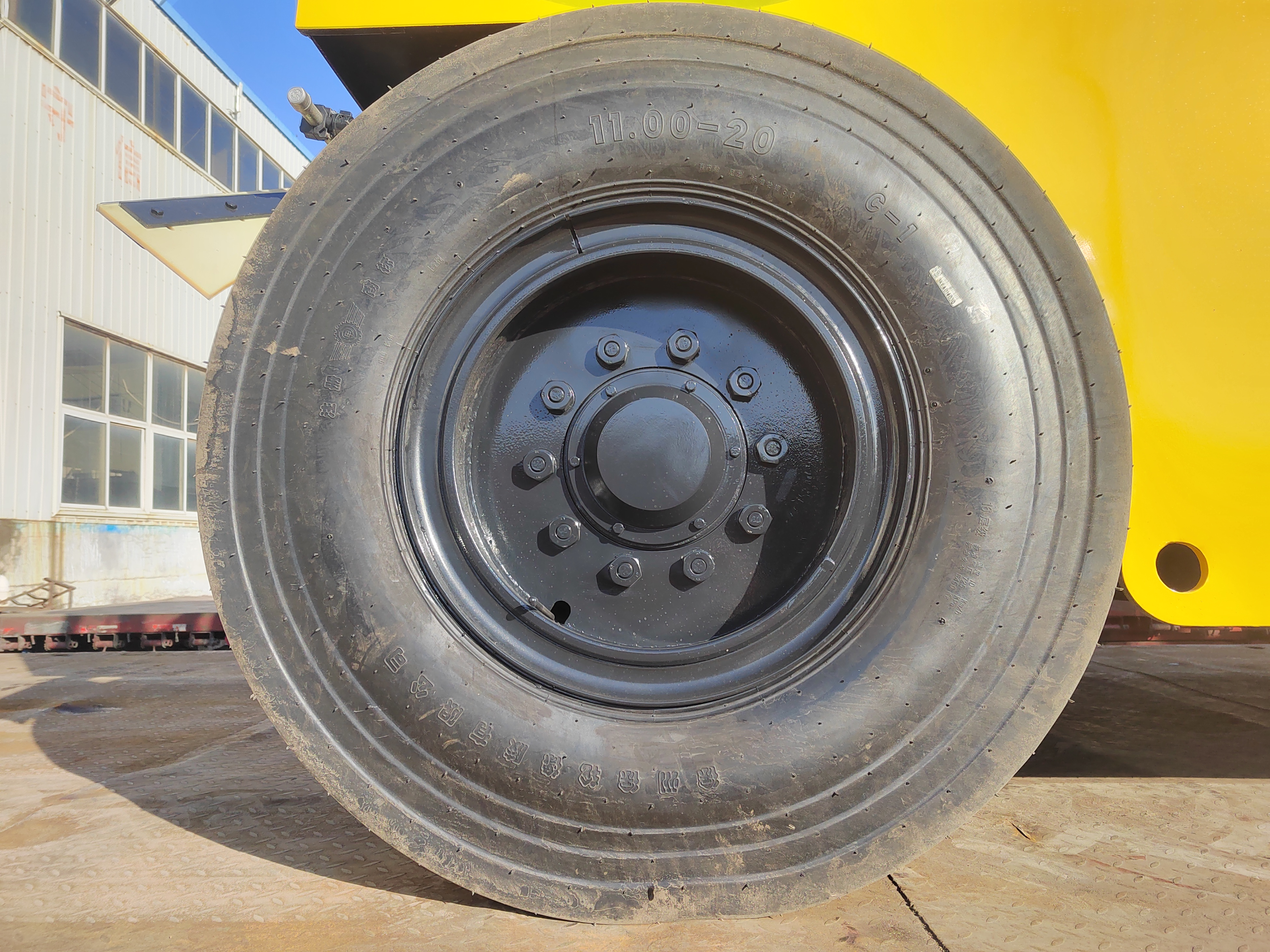

Hydrostatic drive, continuously variable speed, driving hydraulic parts adopt internationally renowned brand Danfoss products, the engine adopts Cummins 4BT3.9 diesel engine, smooth tires with adjustable inflation pressure, 4 tires in the front and 5 tires in the rear, electronically controlled water spraying, and standard air-conditioned cab.
$33000
Product Details
Product Details

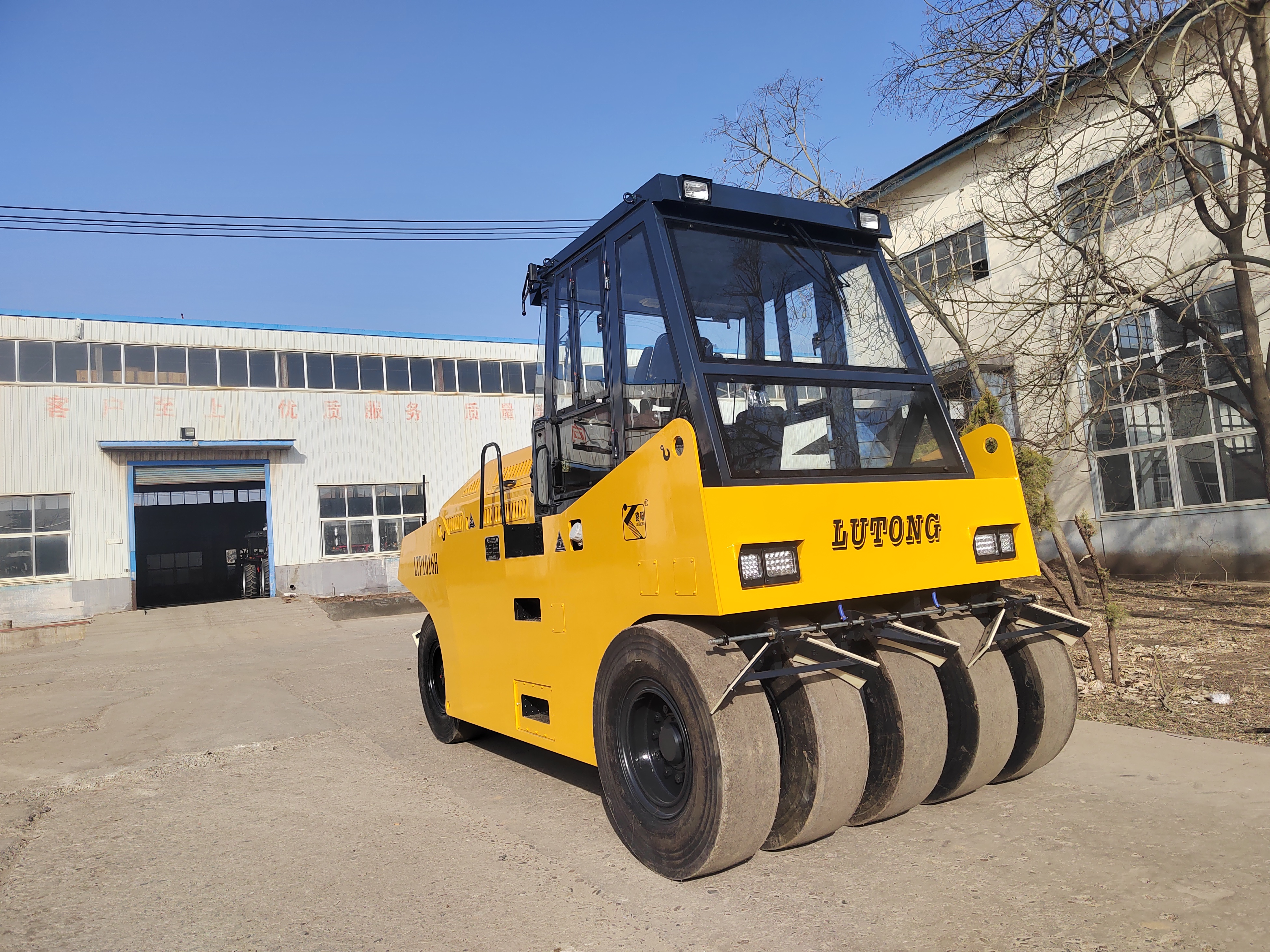

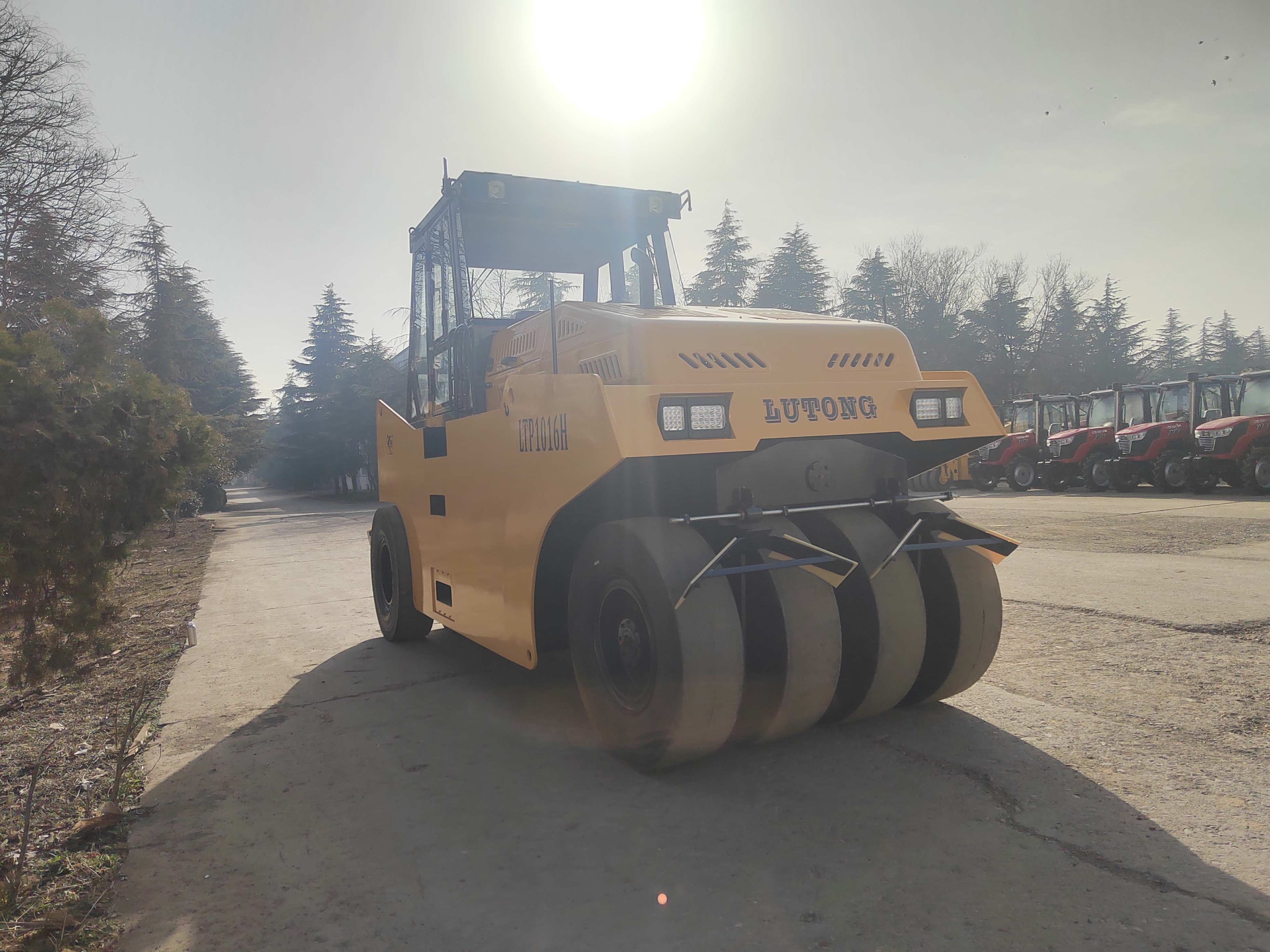

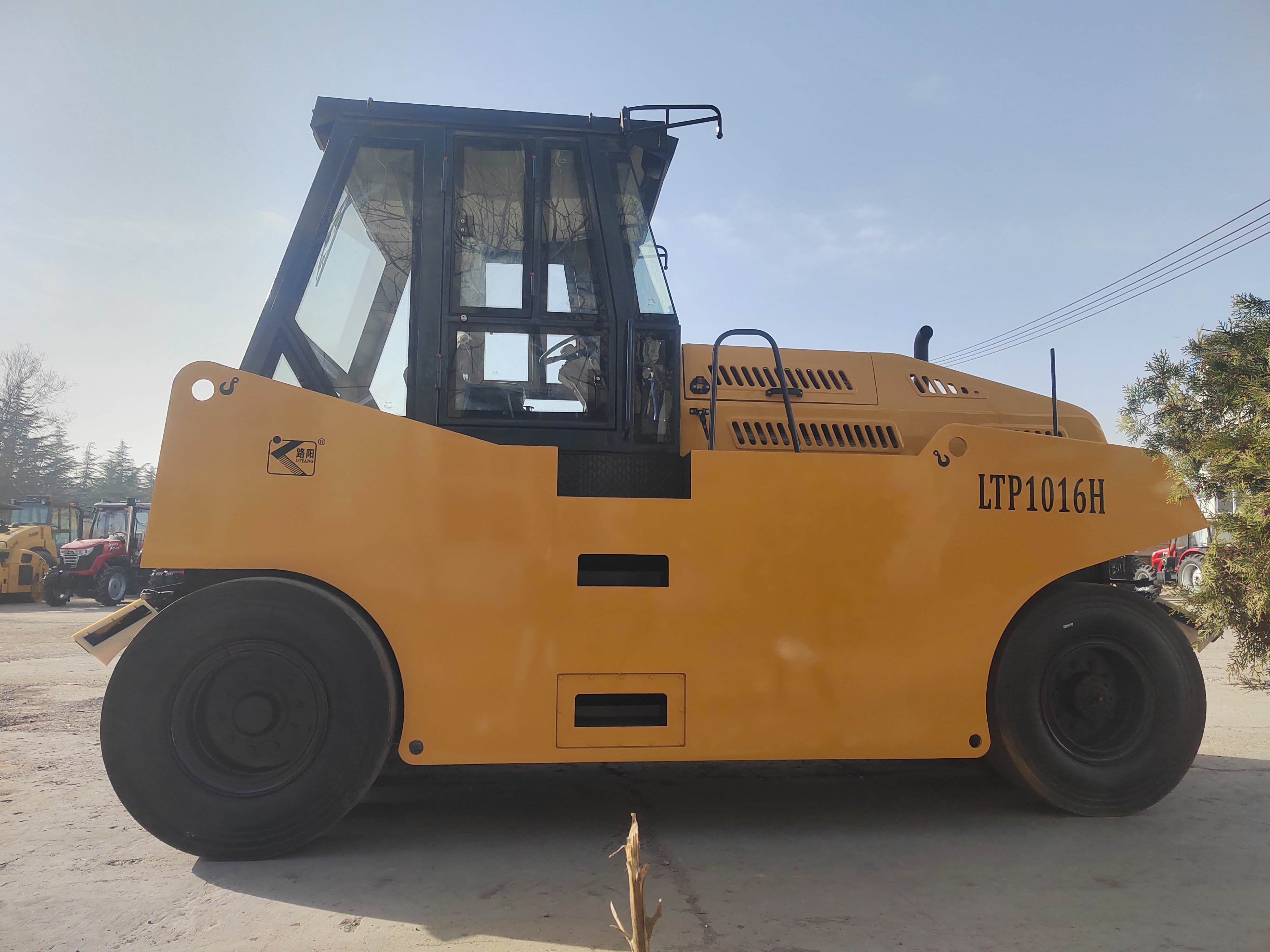

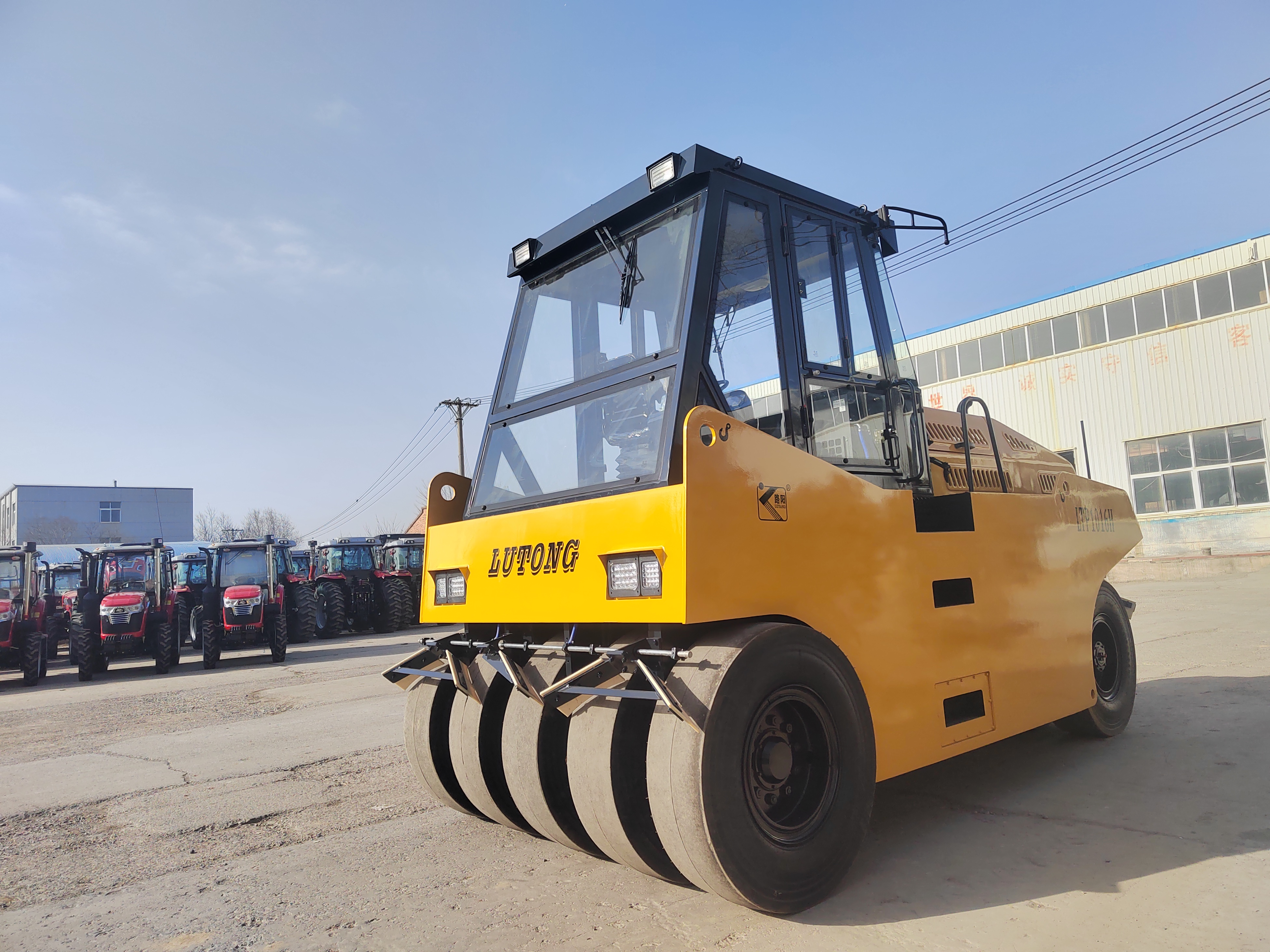

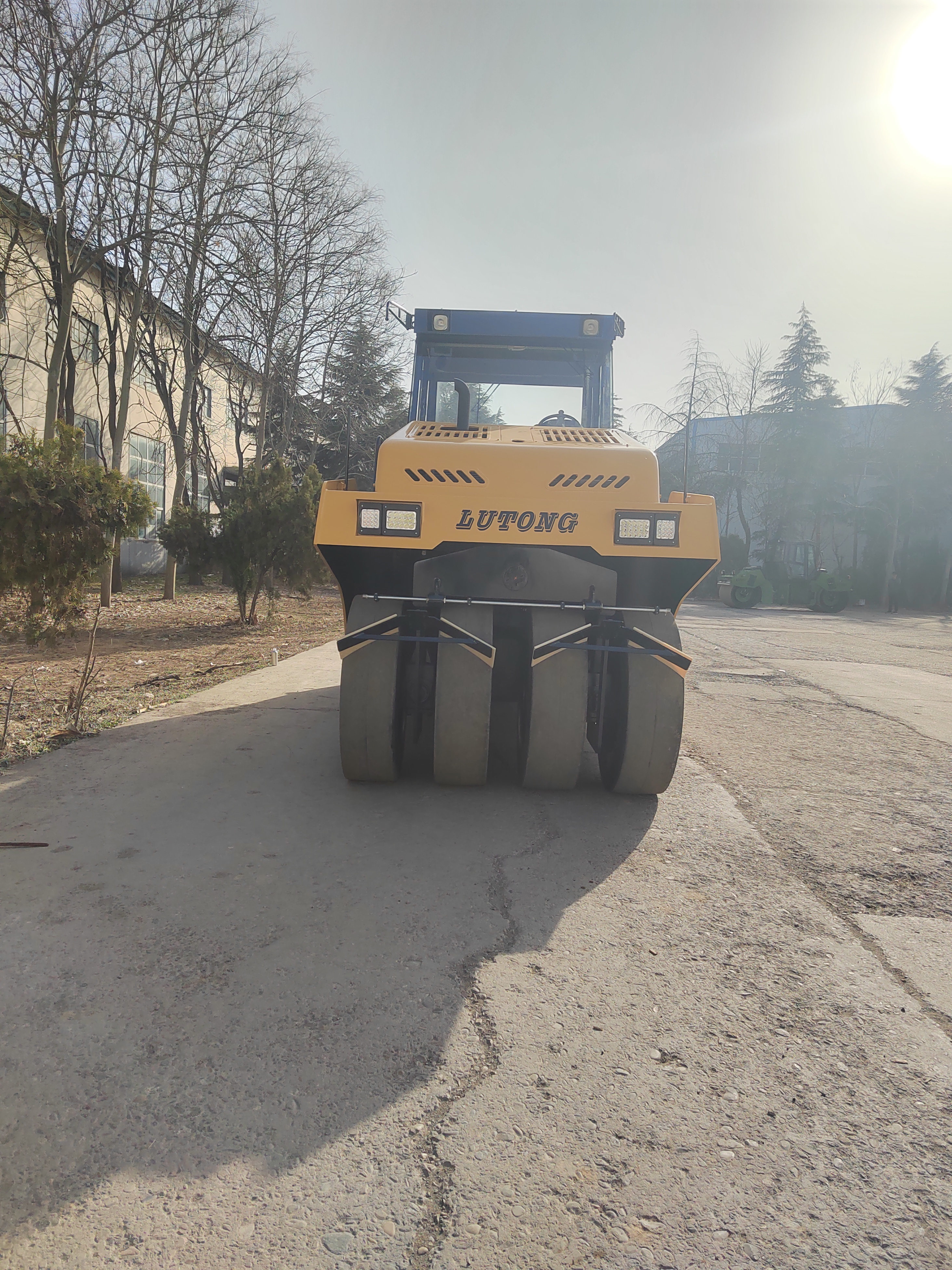

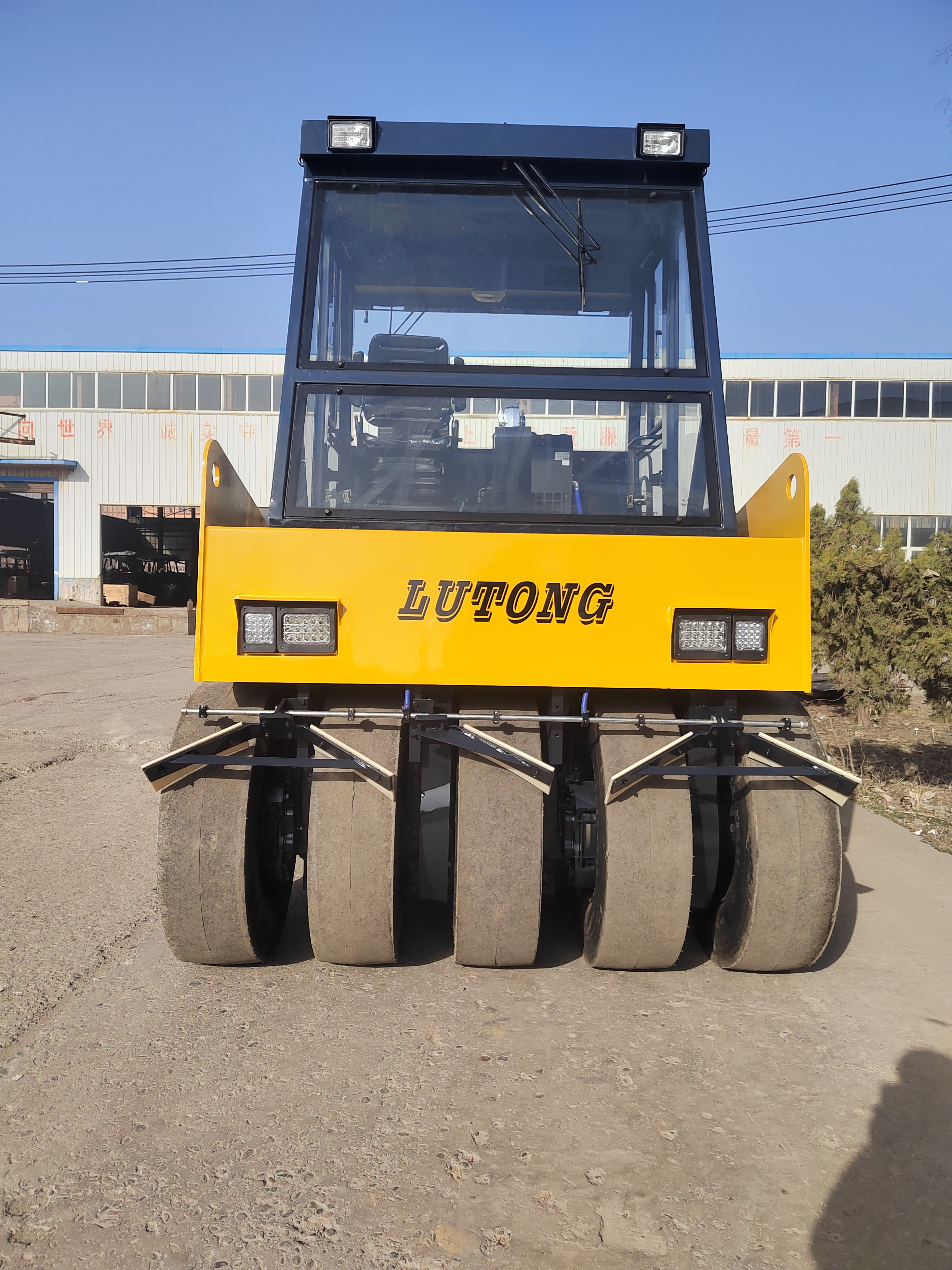

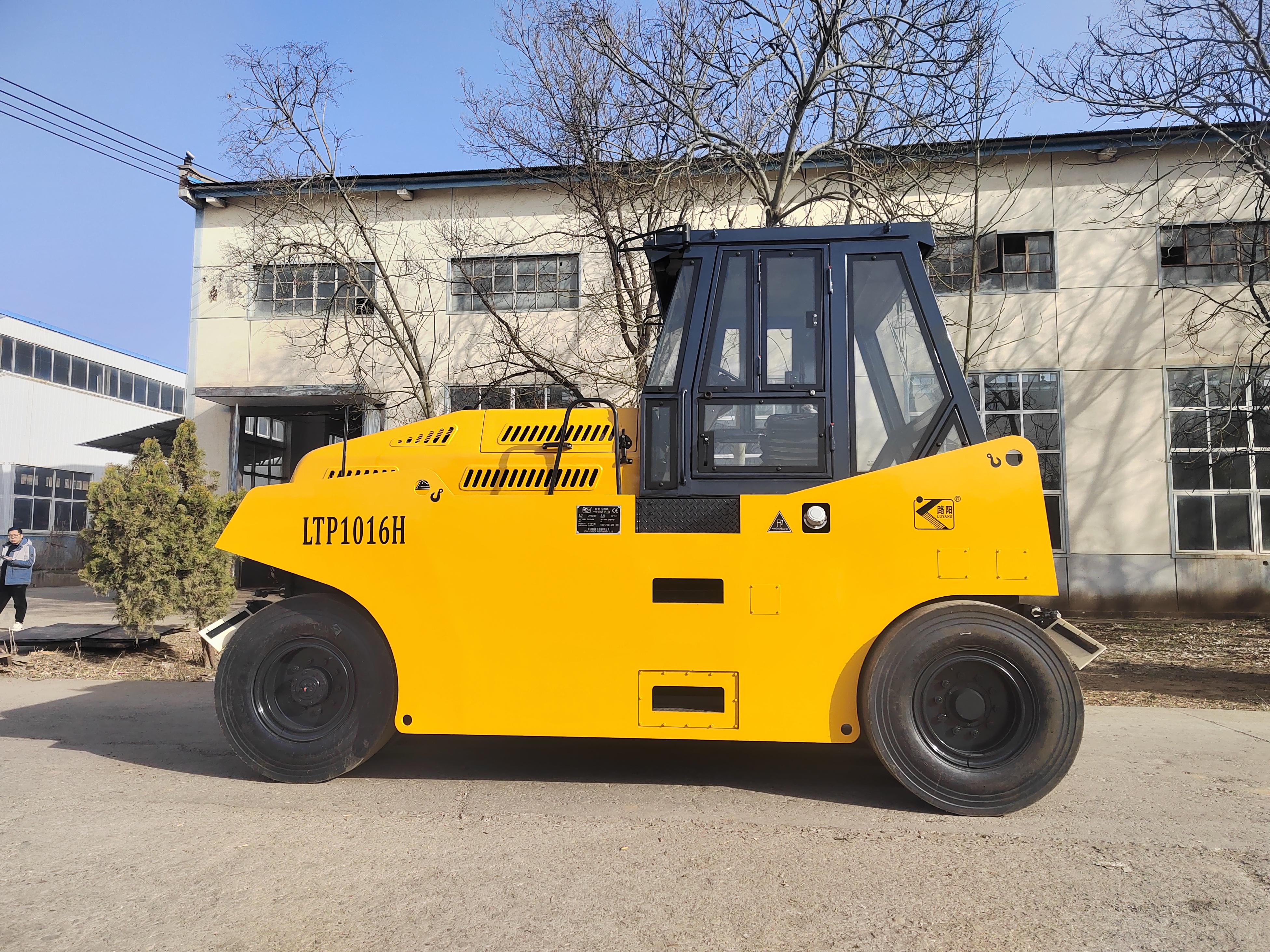

LTP1016H Hydraulic pneumatic tires roller
Pneumatic tire roller series are designed for the compact cohesive and non-cohesive materials, such as asphalt concrete, cement or lime stabilized soils, gravels, sands and clay mixtures, rolling cement concrete (PCC) in the construction projects, especially suitable for the preparation of the upper courses of high grade highway.
Main Features
1、LTP1016H low gravitational center designed for safe and comfortable operation.
2、LTP1016H adopt cummins 4BT3.9 engine,powerful strength,which is suitable to all environment.

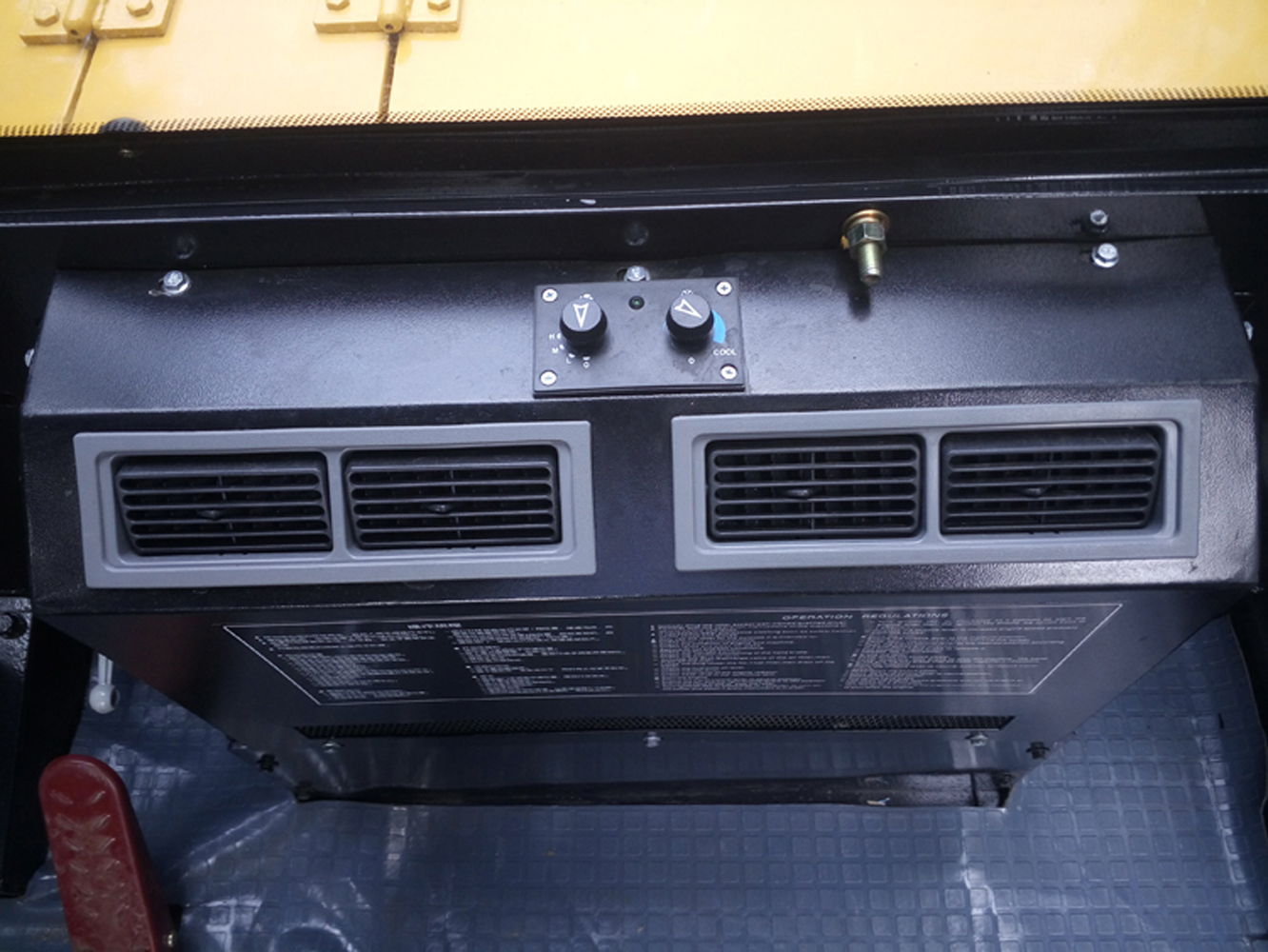

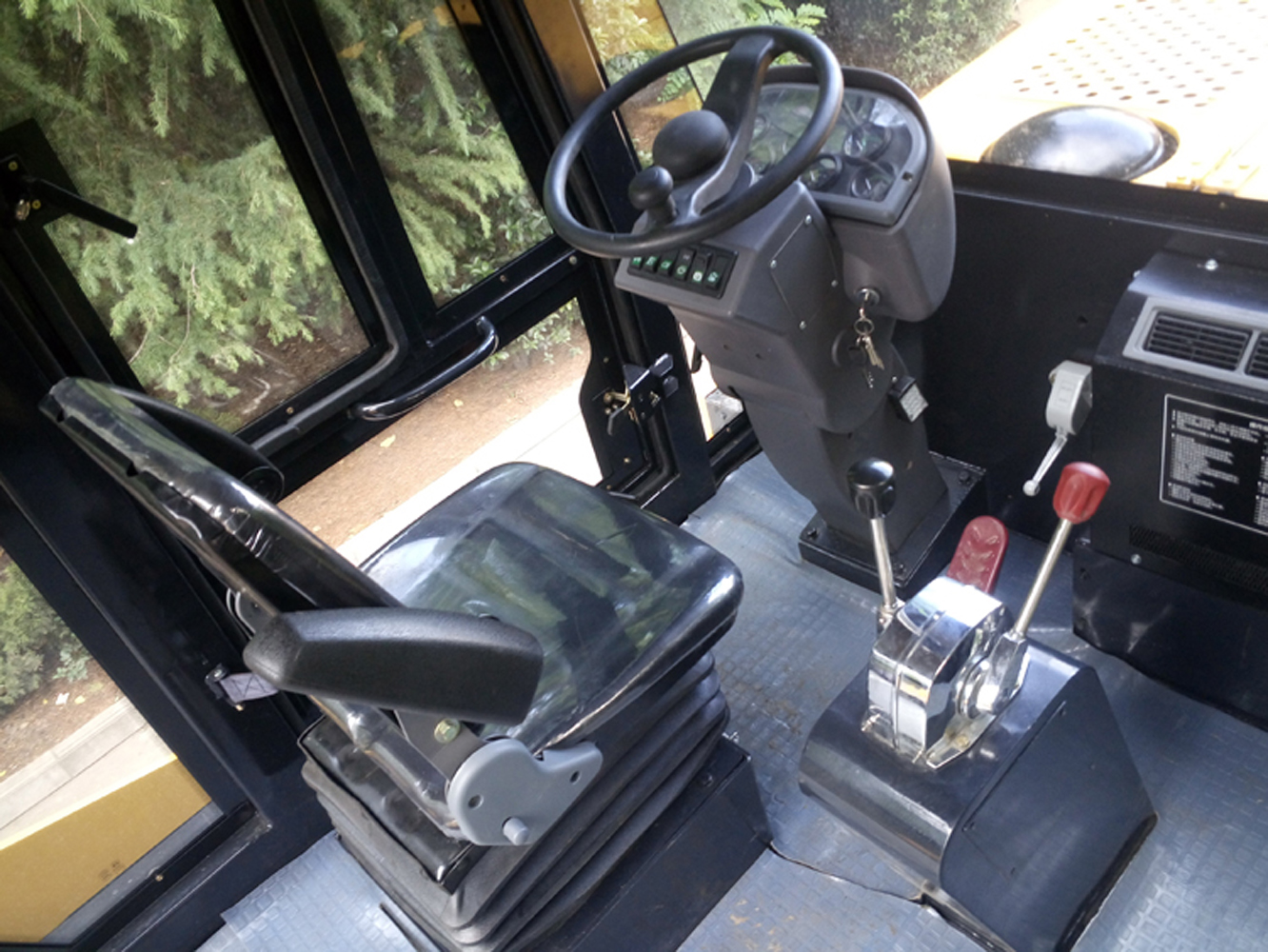

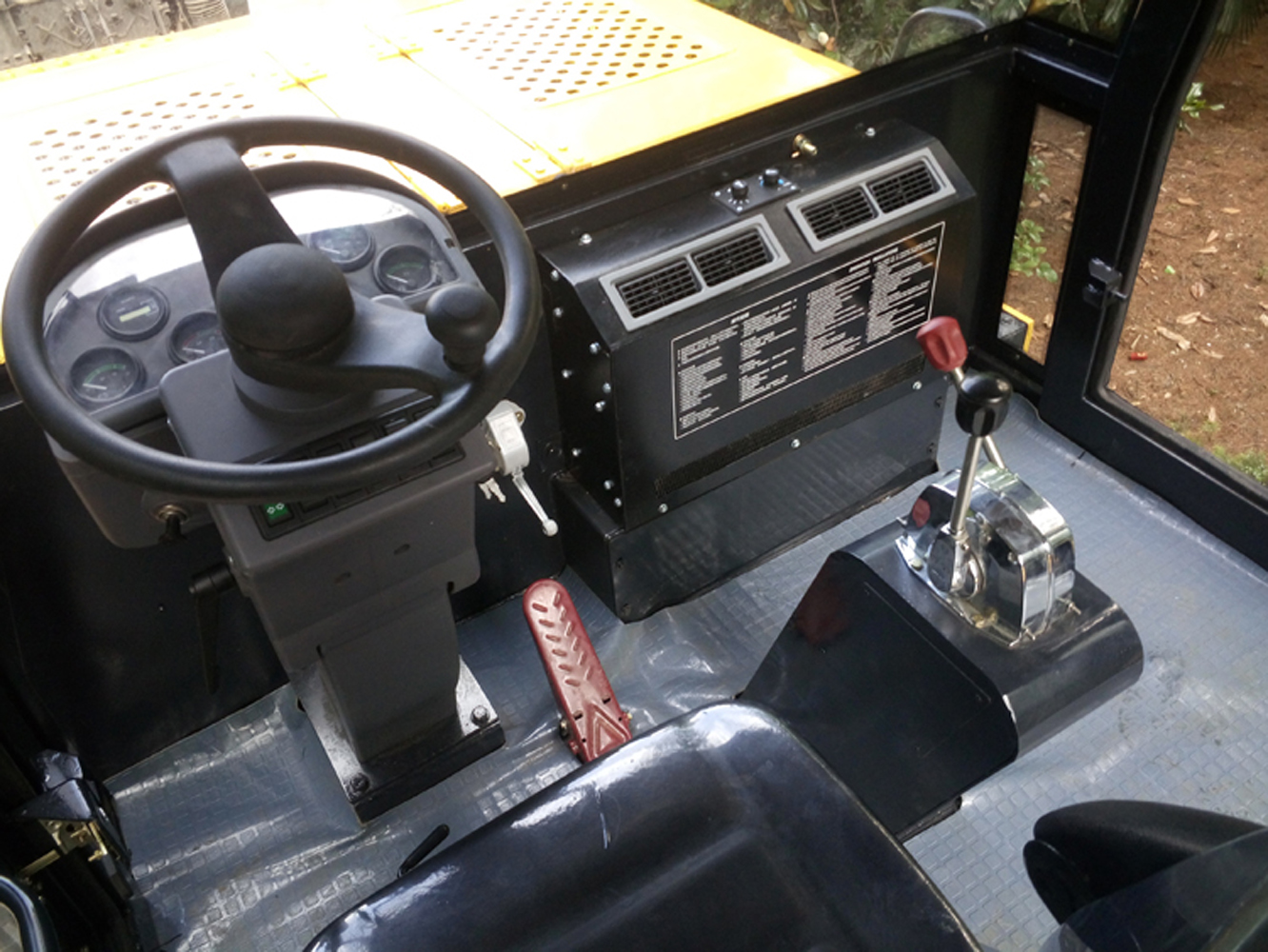

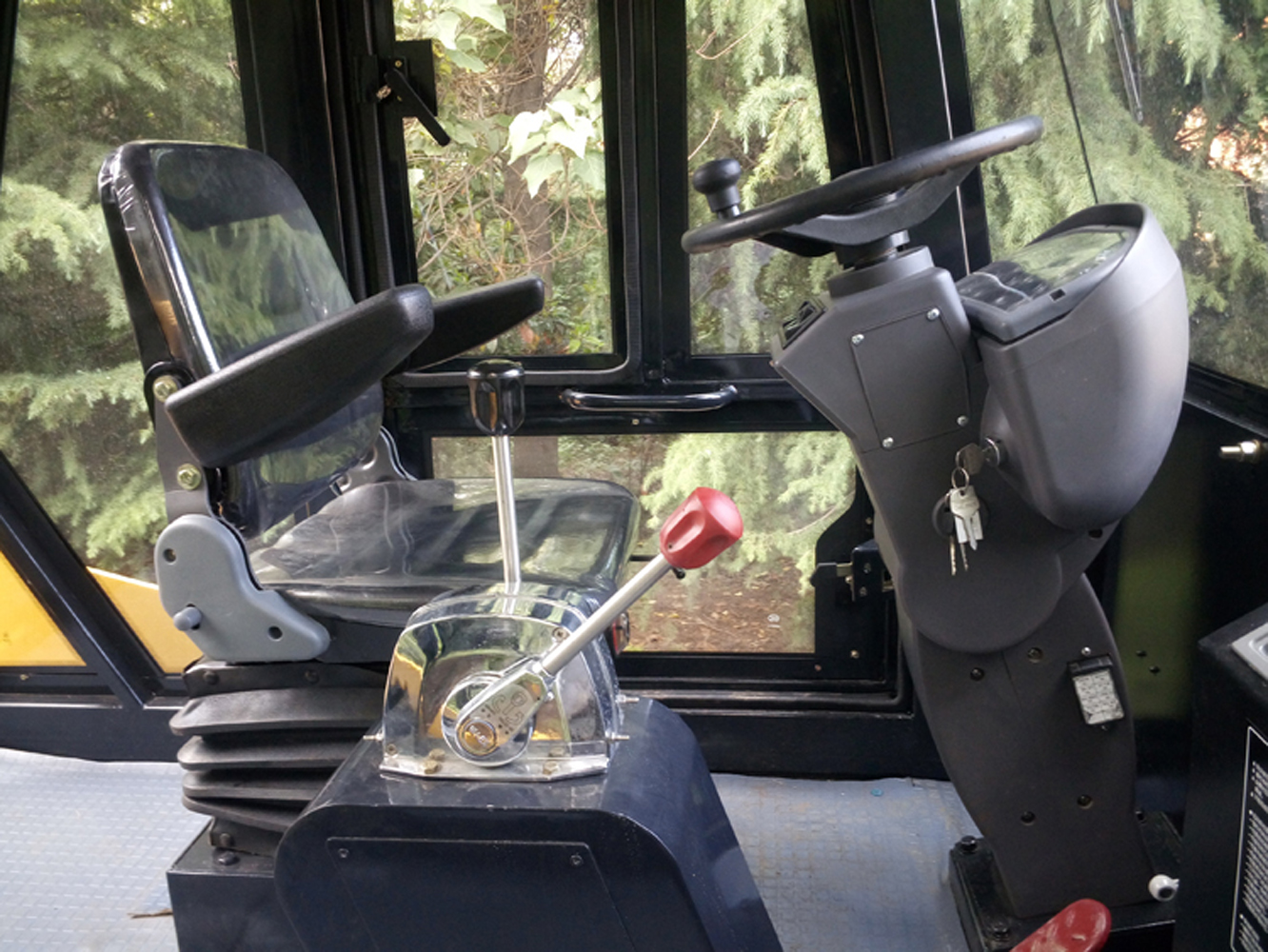

3、Air-conditional cab is standard. Reinforced plastic spaying box and multi-layer water filter.

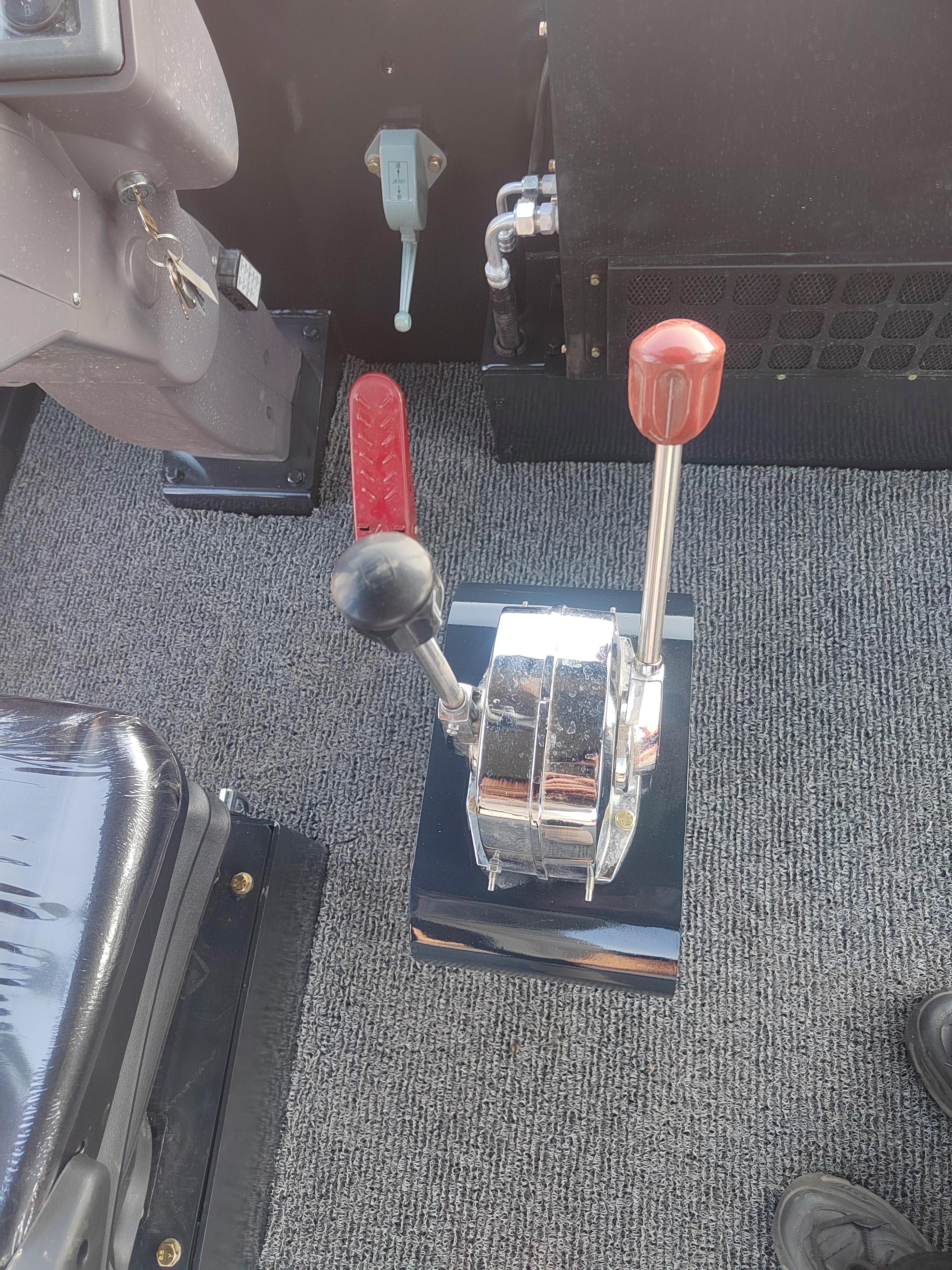

5、With step-less speed change ,LTP1016H is easy and reliable to operate.
Main technical parameters
Model | LTP1016H | |
Operating mass(unballast/ballast) | kg | 10000/16000 |
Max.travel speed | Km/h | 14 |
Tyre quantity(front+back) | 4+5 | |
Min turning radius | mm | 7500 |
The presses width | mm | 2280 |
Grade ability | % | 30 |
Overall dimension | mm | 5000*2280*3200 |
wheelbase | mm | 3700 |
Diesel power | kw | 75 |
Diesel model(Stage II) | 4BT3.9 |
