LTP2030H 20-30Ton hydraulic pneumatic tires roller
Hydrostatic drive, continuously variable speed, driving hydraulic parts adopt internationally renowned brand Danfoss products, the engine adopts Cummins 6BTA5.9 diesel engine, smooth tires with adjustable inflation pressure, 5 tires in the front and 6 tires in the rear, two-way control, electronically controlled sprinkler, and standard air-conditioned cab.
$45000
Product Details
Product Details

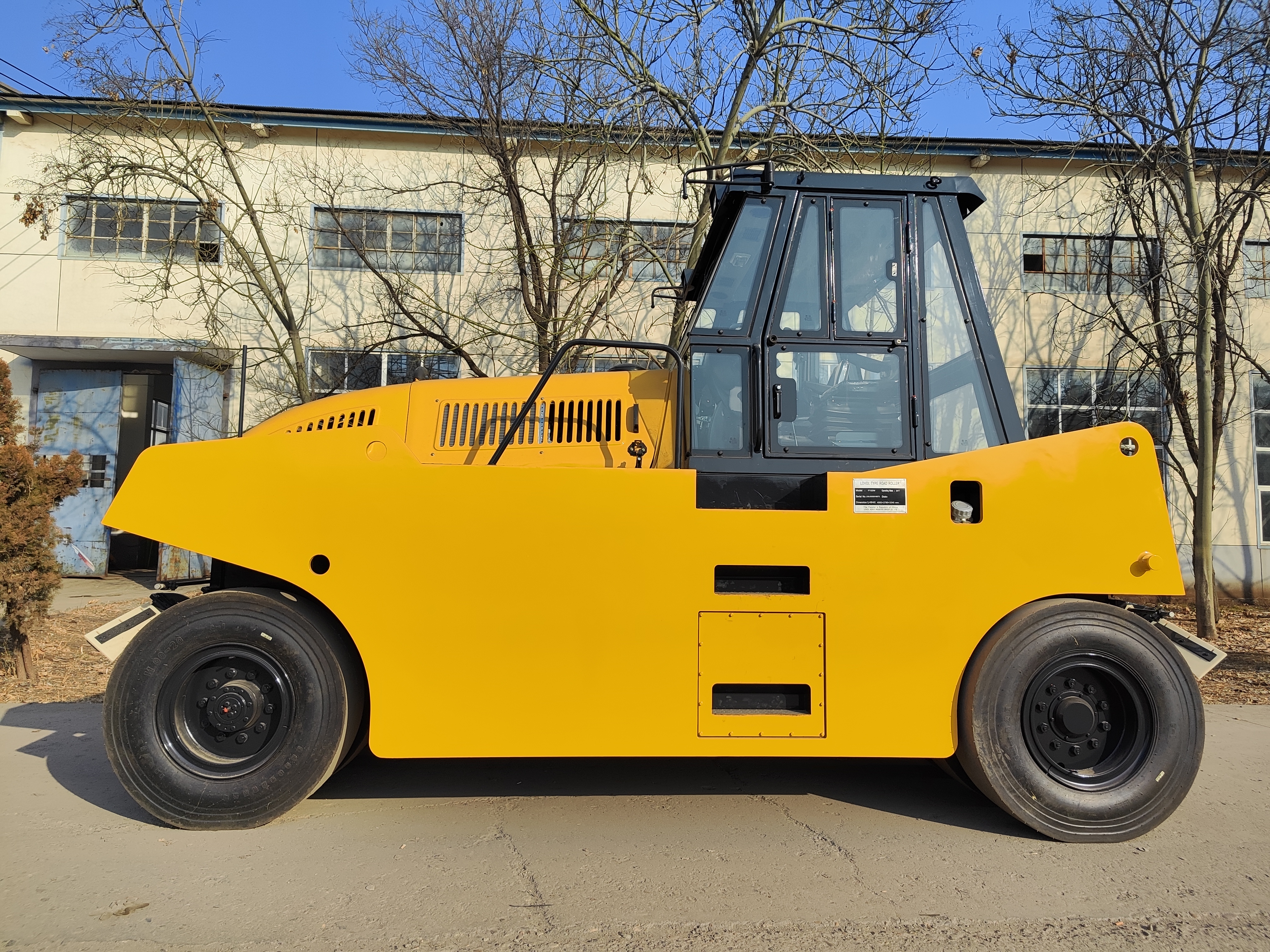

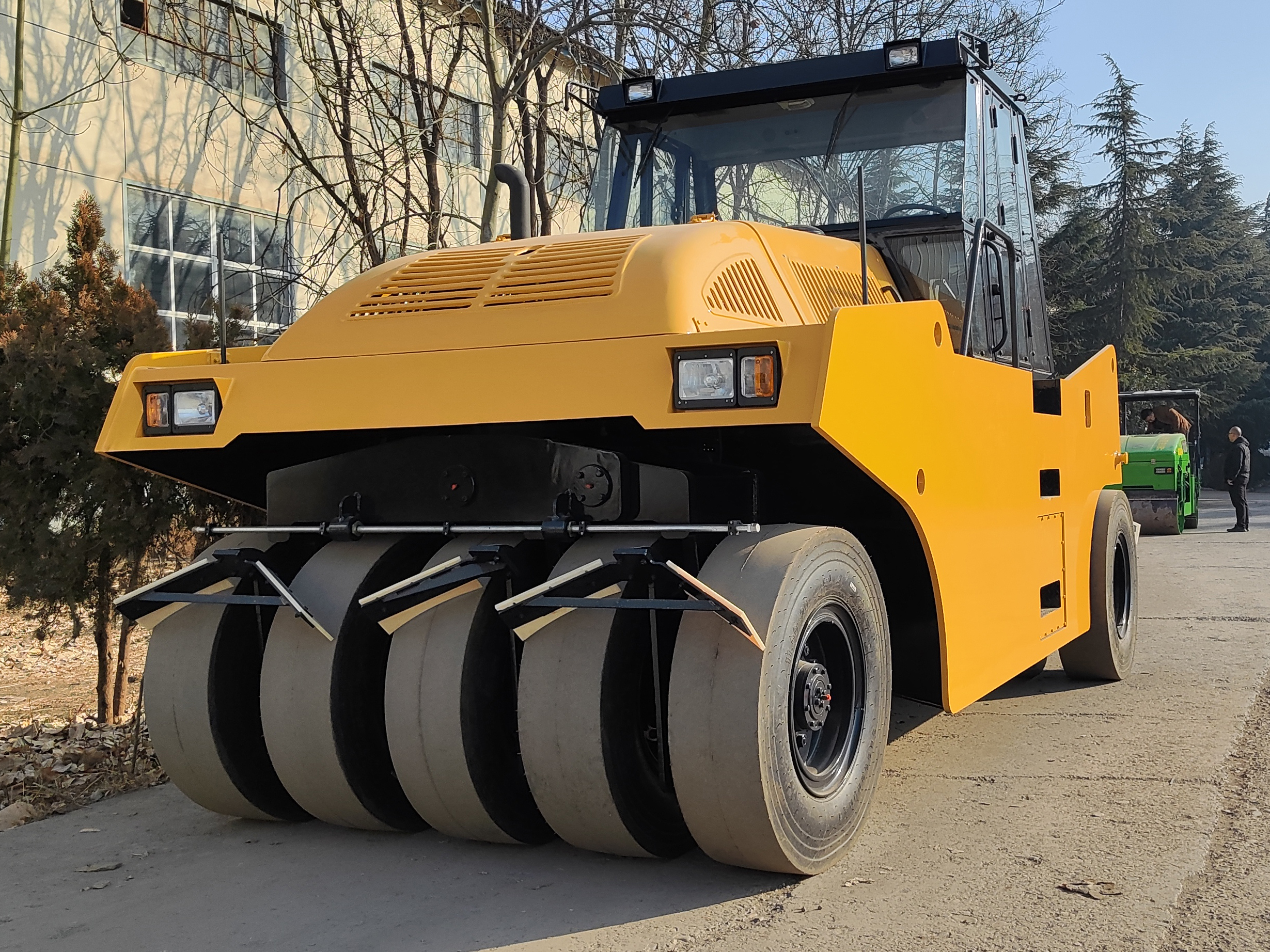

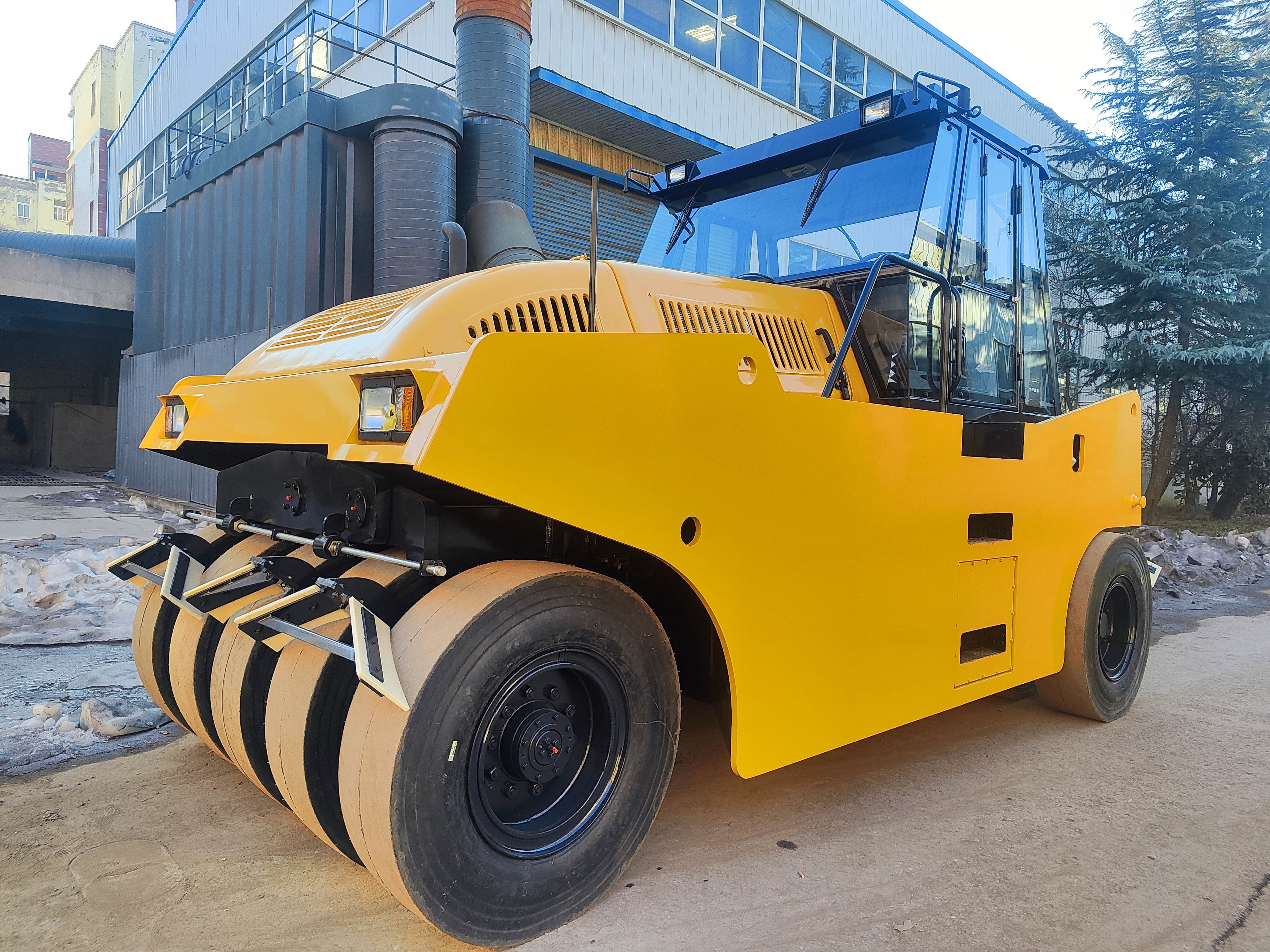

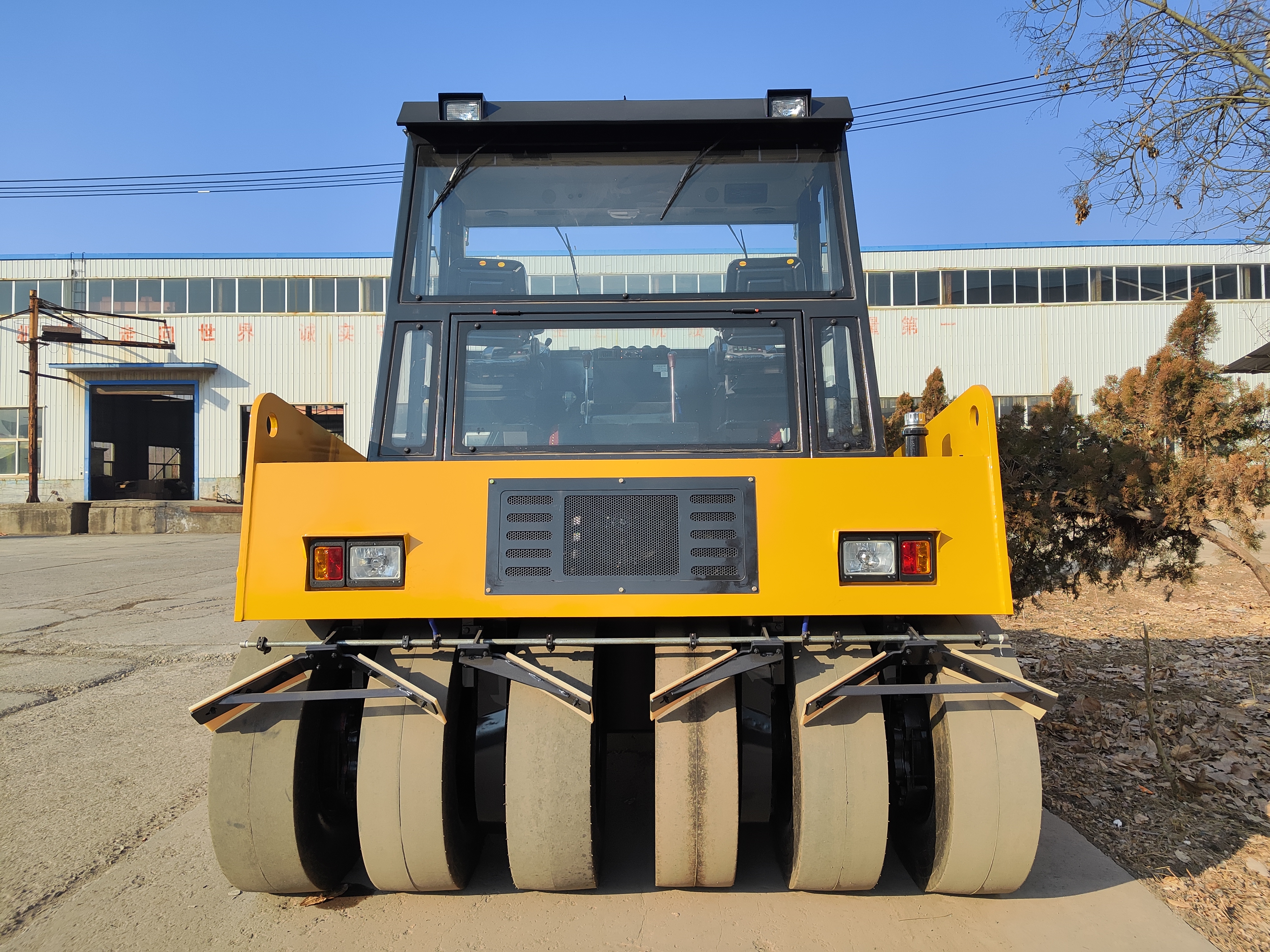

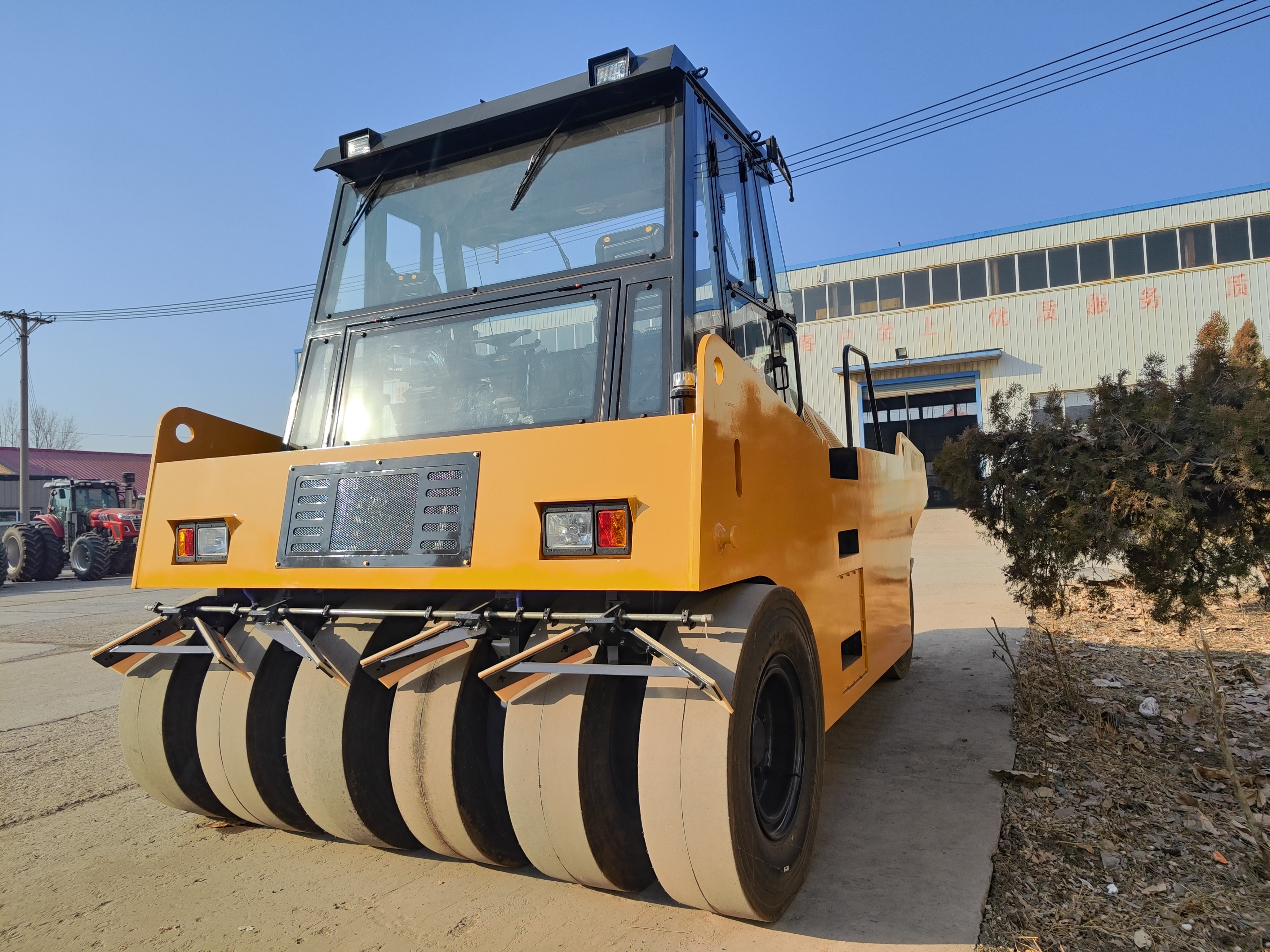

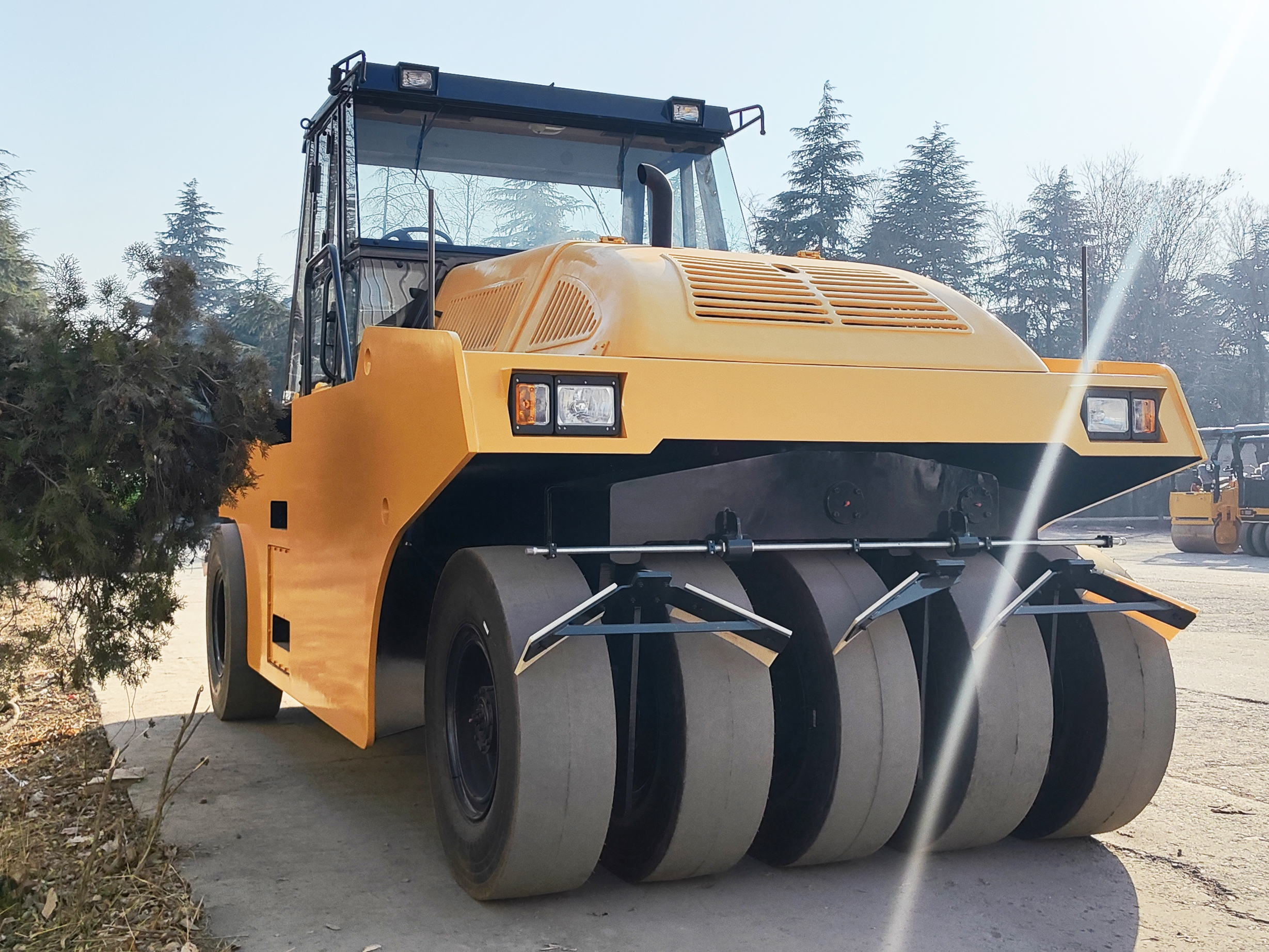

LTP2030H Hydraulic pneumatic tire roller
Pneumatic tire roller series are designed for the compact cohesive and non-cohesive materials, such as asphalt concrete, cement or lime stabilized soils, gravels, sands and clay mixtures, rolling cement concrete (PCC) in the construction projects, especially suitable for the preparation of the upper courses of high grade highway.
Main Features
1、LTP2030H low gravitational center designed for safe and comfortable operation.
2、LTP2030H adopt CUMMINS 6BTA diesel engine.Powerful strength,which is suitable to all environments.

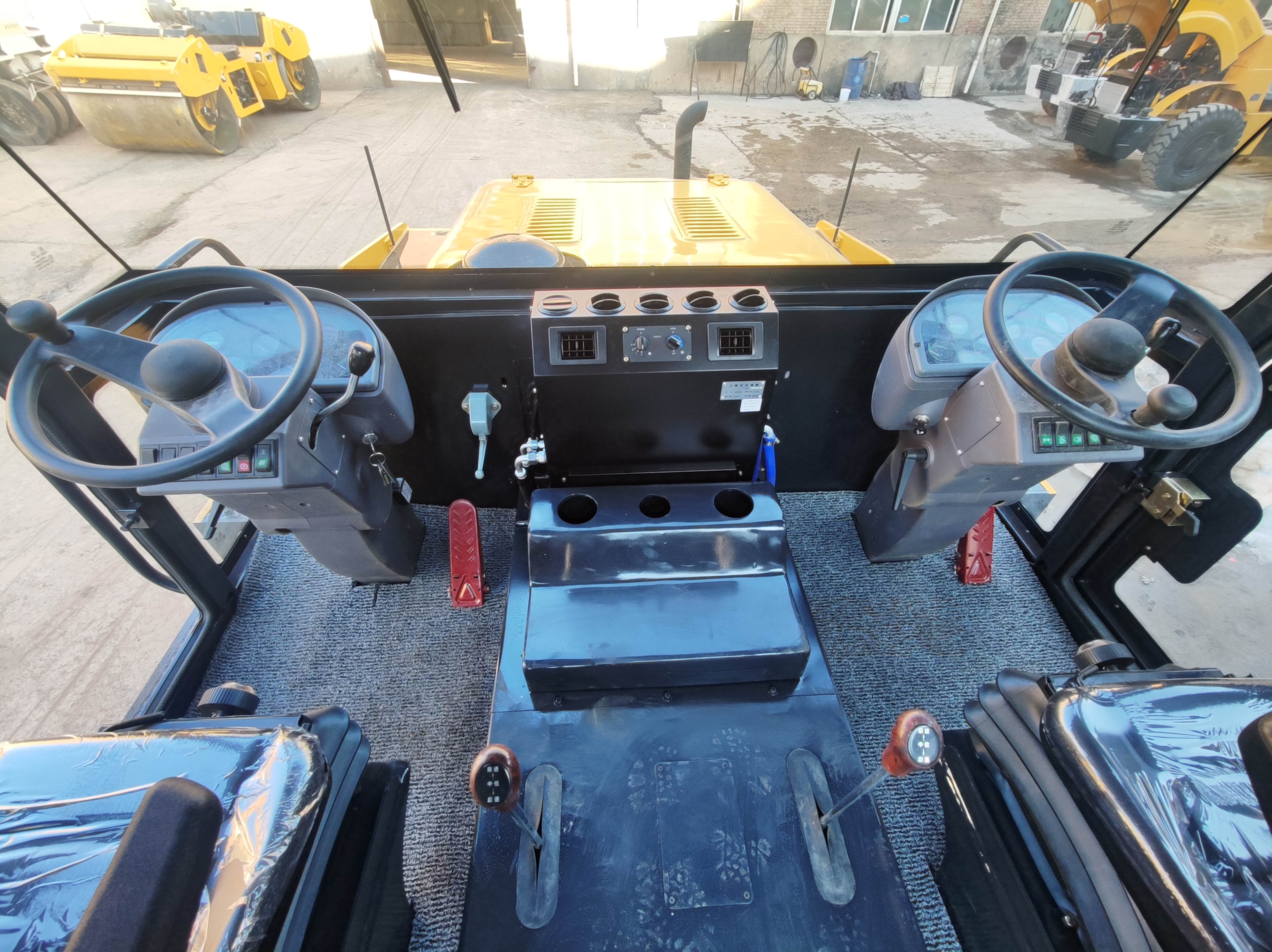

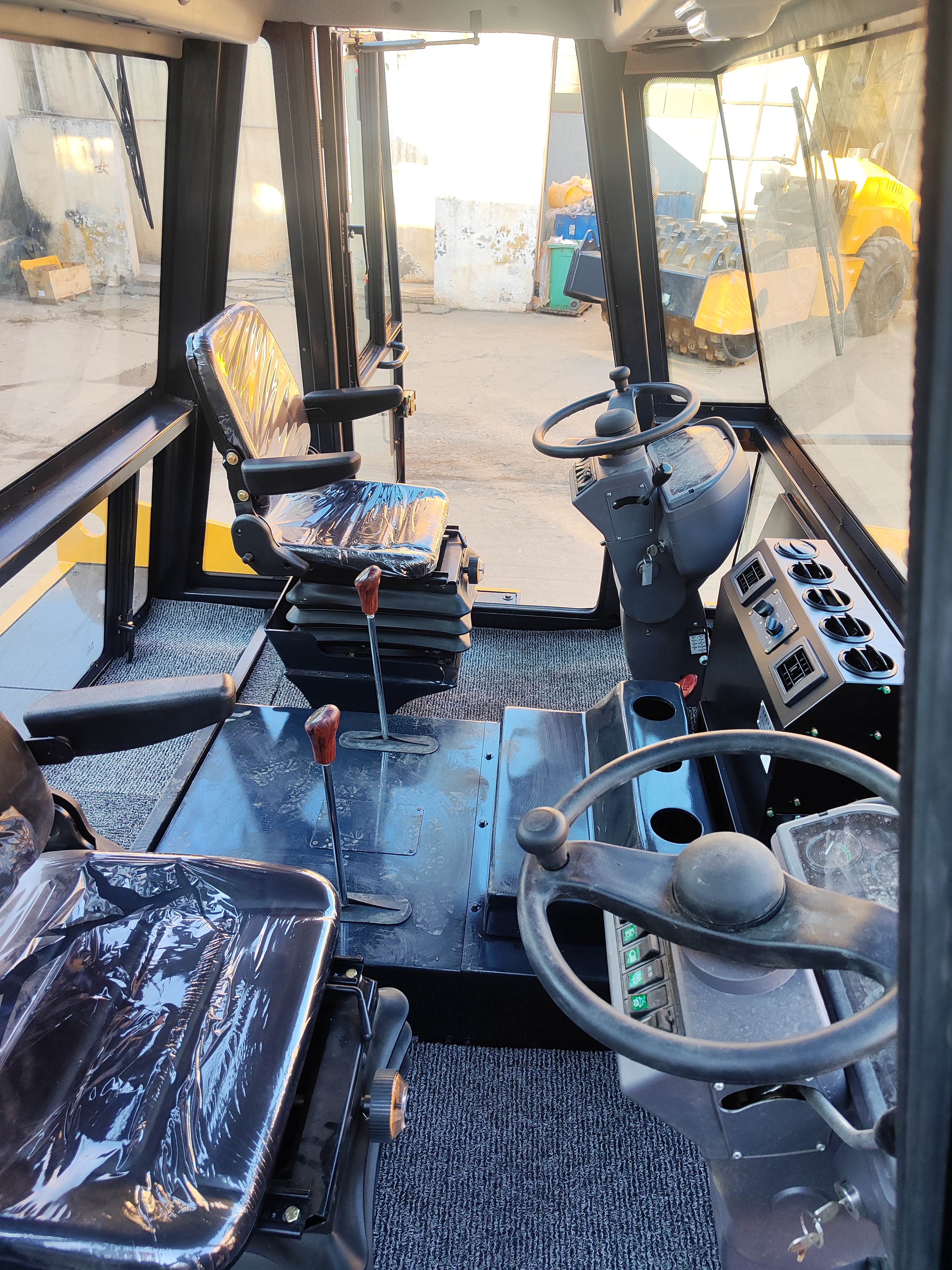

3、Air-conditional cab is standard. Reinforced plastic spaying box and multi-layer water filter.
5、With step-less speed change ,LTP2030H is easy and reliable to operate.
Main technical parameters
Model | LTP2030H | |
Operating mass(unballast/ballast) | kg | 20000/30000 |
Max.travel speed | Km/h | 10 |
Tyre quantity(front+back) | 5+6 | |
Min turning radius | mm | 8000 |
The presses width | mm | 2790 |
Grade ability | % | 30 |
Overall dimension | mm | 6000*2790*3240 |
wheelbase | mm | 3800 |
Diesel power | kw | 125 |
Diesel model(Stage II) | 6BTA5.9 |
